Product Overview

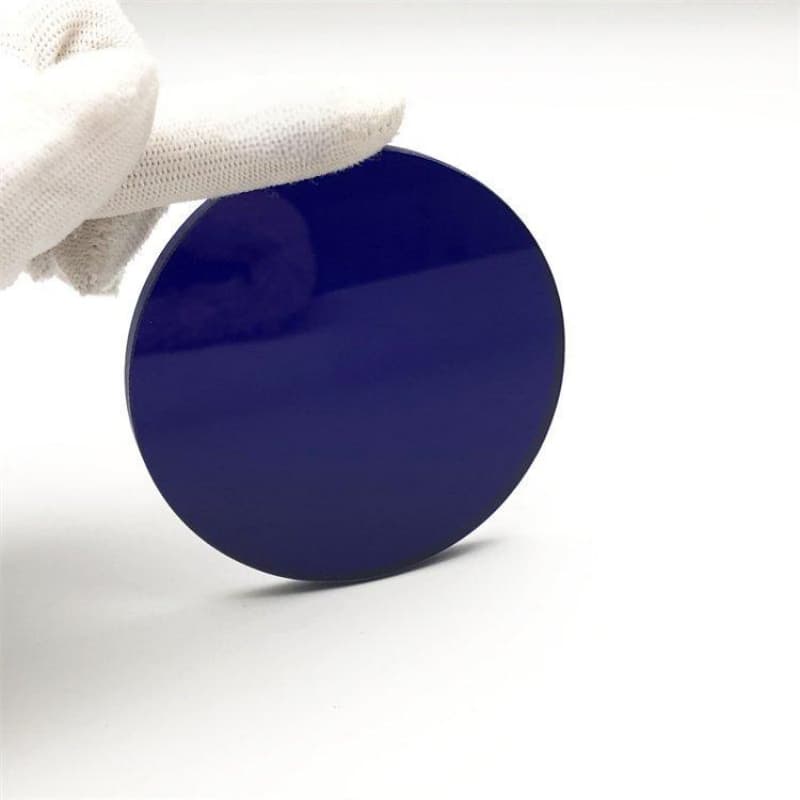

Furnace Observation Blue Cobalt Glass is a specialized optical glass engineered for safe and clear visual inspection of flames, combustion conditions, and material melting inside high-temperature industrial furnaces, boilers, and kilns. By filtering out intense yellow sodium light, this cobalt blue glass allows operators to accurately monitor burner performance, flame shape, and temperature distribution without risking eye strain or misjudgment.
Manufactured from high-quality cobalt oxide-doped glass, our Furnace Observation Blue Cobalt Glass delivers exceptional thermal stability, optical clarity, and long service life in demanding industrial environments. It is an essential component for furnace observation ports, sight glasses, and inspection windows.
Key Features & Benefits
-
Superior Light Filtration
The Furnace Observation Blue Cobalt Glass effectively absorbs the sodium D-line (589 nm), reducing yellow glare and enhancing contrast for precise flame observation. This makes it easier to detect incomplete combustion, flame impingement, and other critical process indicators. -
High-Temperature Resistance
Designed to withstand continuous exposure to elevated temperatures, the glass maintains its optical and mechanical properties even under sustained heat. Suitable for furnace environments where ordinary glass would quickly degrade or crack. -
Excellent Durability
Our cobalt glass is resistant to thermal shock, chemical corrosion, and surface wear, ensuring consistent performance over thousands of hours. The non-porous surface also resists soot and particulate buildup. -
Customizable Configurations

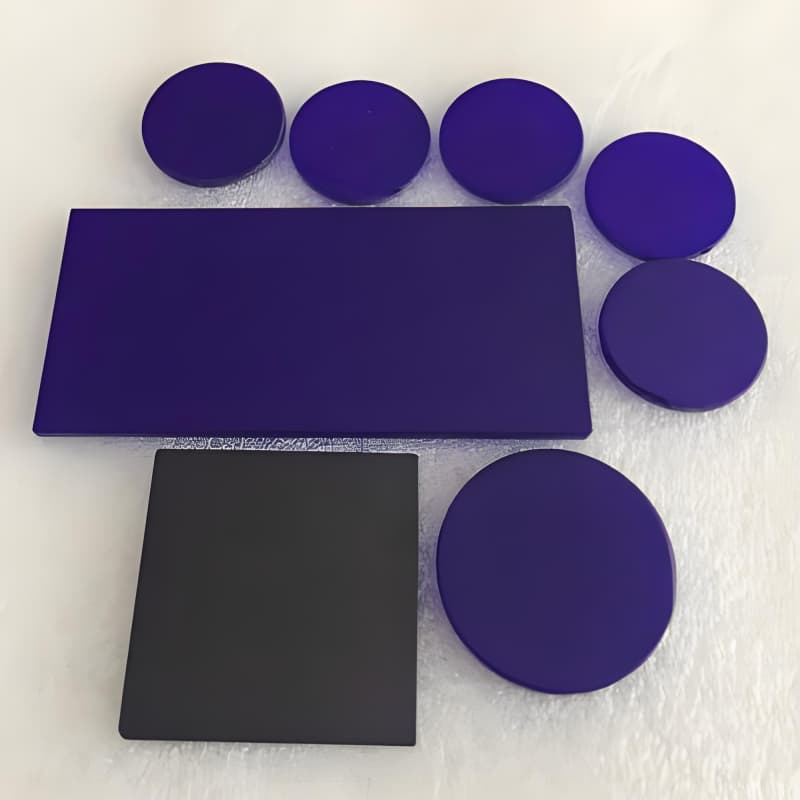

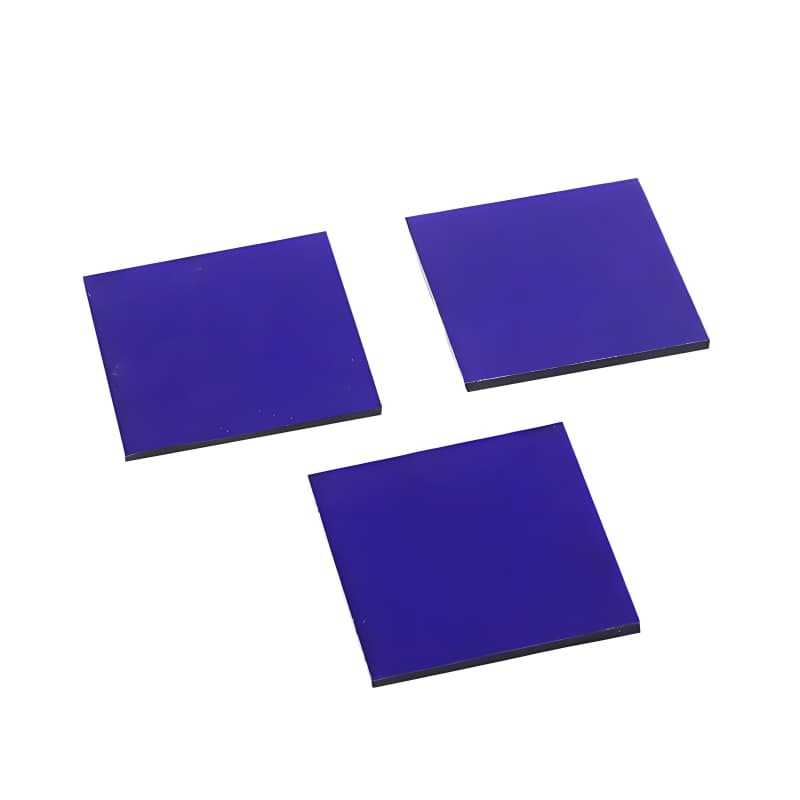

Available in a range of thicknesses, diameters, and shapes (round, rectangular, or custom-cut). Can be supplied as bare glass or pre-mounted in metal frames with high-temperature gaskets for easy installation into observation ports. -
Cost-Effective Solution
Compared to alternative furnace monitoring technologies, Furnace Observation Blue Cobalt Glass offers a simple, maintenance-free, and economical way to maintain visual access to combustion zones.
Applications
Furnace Observation Blue Cobalt Glass is widely used across industries that rely on direct visual monitoring of high-temperature processes:
-
Glass Melting Furnaces – for observing melt clarity and refractory condition.
-
Boilers & Combustion Chambers – to check flame stability and burner alignment.
-
Ceramic & Brick Kilns – for monitoring firing atmospheres and temperature uniformity.
-
Metal Smelting & Heat Treatment Furnaces – to inspect molten metal levels and slag formation.
-
Chemical Reactors – for safe visual inspection of high-temperature reactions.
Wherever accurate flame observation is critical, our Furnace Observation Blue Cobalt Glass delivers reliable performance.
Technical Specifications
| Parameter | Typical Value |
|---|---|
| Material | Cobalt-doped borosilicate / soda-lime glass |
| Color | Deep blue |
| Thickness Range | 2 mm – 10 mm (custom up to 20 mm) |
| Maximum Continuous Operating Temp. | 500°C (consult for higher) |
| Short-term Peak Temp. | 800°C |
| Light Transmittance (visible) | 20% – 40% (filtered) |
| Size Options | Diameters up to 300 mm, or custom rectangles |
| Surface Finish | Polished, fire-polished edges |
| Mounting Options | Bare glass, metal frame, gasket kit |
Note: Specifications are for standard products. Custom formulations and dimensions are available upon request.
Ordering Information
We supply Furnace Observation Blue Cobalt Glass to OEMs, maintenance teams, and distributors worldwide. When requesting a quote, please specify:
-
Diameter or dimensions (mm or inches)
-
Thickness required
-
Quantity (sample, bulk, annual usage)
-
Mounting type (if framed, provide groove dimensions)
-
Operating temperature and environment
Minimum order quantities apply for custom sizes. Standard round discs are available from stock for quick delivery.
Packaging & Shipping
All Furnace Observation Blue Cobalt Glass is carefully packed with foam separators and shock-absorbent materials to prevent breakage during transit. Export orders are shipped in reinforced wooden crates with full insurance coverage. We ship globally via air or sea freight based on customer preference.
Frequently Asked Questions
Q: Can this glass be used with high-pressure furnaces?
A: Yes, provided the glass is mounted in a suitable high-pressure sight glass assembly. The glass itself withstands high temperatures, but the sealing and mounting hardware must be rated for your specific pressure.
Q: How does your cobalt glass differ from regular blue glass?
A: Our Furnace Observation Blue Cobalt Glass is specifically formulated with a precise concentration of cobalt oxide to achieve optimal filtration of the sodium D-line. Regular blue glass may not provide the same contrast enhancement or thermal stability.
Q: Do you offer samples?
A: Yes, we provide free samples for evaluation by qualified B2B customers. Please contact us with your requirements.
Why Choose Us?
As a dedicated manufacturer of industrial optical glass, we ensure every batch of Furnace Observation Blue Cobalt Glass meets strict quality standards. Our in-house cutting, grinding, and polishing capabilities allow us to offer fast turnaround on both standard and custom orders. With years of export experience, we understand the demands of global industrial supply chains.
Get a Quote Today
Ready to upgrade your furnace observation systems? Contact us now for a competitive quote and expert technical support. Our team will help you select the right Furnace Observation Blue Cobalt Glass for your specific application.
