What It Is

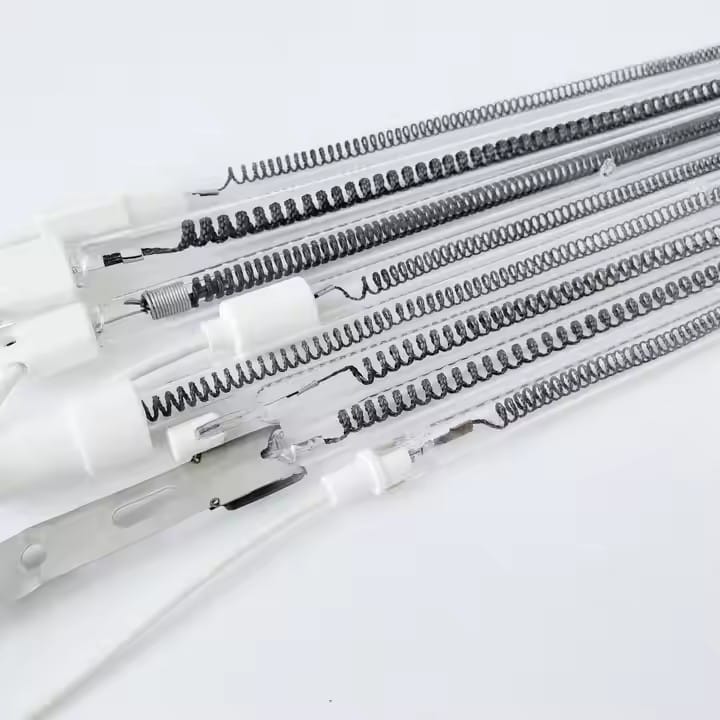

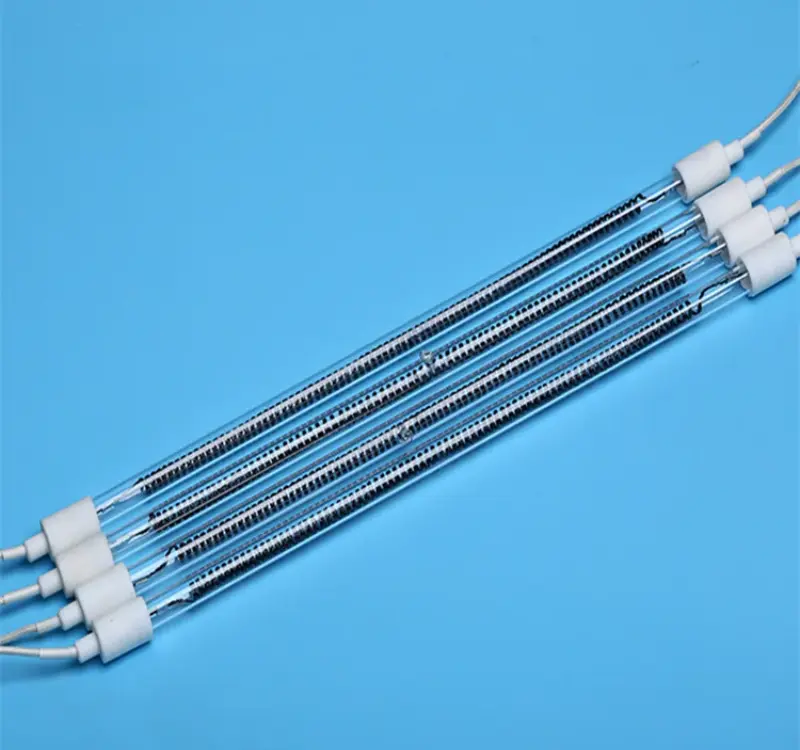

Carbon Fiber Heating Lamp Tube is a quartz infrared heating element that uses a carbon fiber filament as the heat source. It emits medium-to-long wave infrared radiation and reaches full heating temperature within seconds. It is manufactured for B2B buyers only: industrial oven makers, drying equipment manufacturers, HVAC brands, food processing plants, printing and coating lines, and OEM/ODM partners.
It is not a consumer product.
Match Your Equipment
Use this selector to find the right Carbon Fiber Heating Lamp Tube for your machine.
| Equipment | Typical Shape | Wattage | Wave Type |
|---|---|---|---|
| Industrial oven | Straight tube | 500 W – 3000 W | Medium wave |
| Paint / coating dryer | Straight or U-shape | 1000 W – 3000 W | Medium wave |
| Food warming line | Straight tube | 300 W – 1500 W | Long wave |
| Printing dryer | Straight tube | 800 W – 2500 W | Medium wave |
| Greenhouse heater | Straight or U-shape | 500 W – 2000 W | Long wave |
| Vacuum forming | Straight tube | 1000 W – 3000 W | Medium wave |
| OEM heating equipment | Custom | Custom | Custom |
Send us your equipment model, wattage, voltage, and tube length. We will confirm the correct Carbon Fiber Heating Lamp Tube for your project.
Core Advantages
-
Carbon Fiber Heating Lamp Tube heats up in 1–3 seconds
-
High infrared conversion efficiency
-
Uniform heat distribution along the tube
-
Long rated life compared with metal wire elements
-

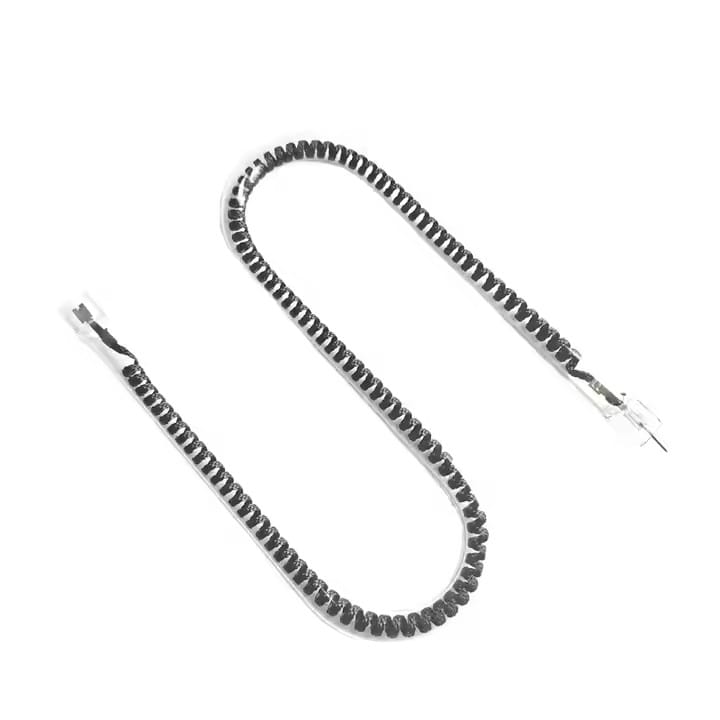

Available in straight, U-shape, and custom bends
-
Clear or gold reflector coating optional
-
Ceramic or metal end caps
-
Custom wattage, voltage, and length
-
OEM/ODM and private-label packaging
Full Specification Range
| Item | Range |
|---|---|
| Product Name | Carbon Fiber Heating Lamp Tube |
| Filament | Carbon fiber |
| Tube Material | High-purity quartz |
| Shape | Straight, U-shape, custom bend |
| Wattage | 100 W – 5000 W |
| Voltage | 110 V / 220 V / 380 V, or custom |
| Length | 100 mm – 2000 mm |
| Tube Diameter | 8 mm, 10 mm, 12 mm, 15 mm, 18 mm, or custom |
| Wavelength | 2.0 – 4.0 μm (medium to long wave) |
| Color Temperature | 1200 K – 1800 K |
| Reflector | Clear, gold, or white coating optional |
| End Cap | Ceramic, metal, or custom |
| Heat-Up Time | 1–3 seconds |
| Rated Life | 5,000 – 10,000 hours typical |
| Operating Temperature | Up to 800°C surface temperature |
| Packaging | Sleeve, carton, pallet |
| MOQ | Negotiable |
| Lead Time | 7–25 days |
| OEM / ODM | Available |
| Documents | MSDS, COA, test report where applicable |
Custom & OEM Capability
We build Carbon Fiber Heating Lamp Tube to your drawing, sample, or equipment specification.
-
Custom wattage, voltage, length, and diameter
-
Straight, U-shape, and custom bends
-
Clear, gold, or white reflector coating
-
Ceramic or metal end caps
-
Custom lead wire length and connector
-
Logo printing and private-label packaging
-
Matched reflector and housing supply on request
-
OEM/ODM project support from sample to mass production
Send your equipment model or lamp drawing. Our engineering team will confirm the suitable Carbon Fiber Heating Lamp Tube and provide a quotation.
Where Carbon Fiber Heating Lamp Tube Is Used
| Industry | Equipment | Typical Lamp Choice |
|---|---|---|
| Industrial heating | Ovens, furnaces, kilns | 1000 W – 3000 W, straight |
| Paint & coating | Curing and drying lines | 1000 W – 3000 W, straight or U-shape |
| Food processing | Warming, drying, baking | 300 W – 1500 W, straight |
| Printing | Ink drying systems | 800 W – 2500 W, straight |
| Plastics | Vacuum forming, thermoforming | 1000 W – 3000 W, straight |
| Agriculture | Greenhouse heating | 500 W – 2000 W, straight or U-shape |
| HVAC | Radiant heaters | 500 W – 2000 W, custom |
| OEM equipment | Custom heating modules | Custom |
Carbon Fiber Heating Lamp Tube must be installed inside a properly designed, shielded housing.
Quality Checks Before Shipment
Every batch of Carbon Fiber Heating Lamp Tube goes through:
-
Wattage and voltage test
-
Resistance check
-
Heat-up time test
-
Infrared output check
-
Quartz tube appearance inspection
-
End cap and lead wire check
-
Aging and stability test
-
Packaging inspection
Samples and test reports are available for qualified B2B buyers.
Packing & Export
-
Individual sleeve or foam protection
-
Cartons with private labels
-
Palletized for sea freight
-
Air and express shipping available
-
Custom labels, logos, and packaging designs accepted
-
Export documents: invoice, packing list, COA, MSDS, certificate of origin
FAQ
Q1: What is Carbon Fiber Heating Lamp Tube?
A: Carbon Fiber Heating Lamp Tube is a quartz infrared heating element that uses a carbon fiber filament. It is used in industrial ovens, dryers, and heating equipment.
Q2: What wattage and voltage can you supply?
A: We supply 100 W to 5000 W, in 110 V, 220 V, 380 V, or custom voltage.
Q3: What is the difference between carbon fiber and halogen heating lamps?
A: Carbon Fiber Heating Lamp Tube emits medium-to-long wave infrared and is often chosen for uniform heating and longer life. Halogen lamps emit shorter wave infrared and heat up faster but may have shorter life.
Q4: What shapes of Carbon Fiber Heating Lamp Tube do you offer?
A: Straight, U-shape, and custom bends. Send us your drawing or sample.
Q5: Can I customize Carbon Fiber Heating Lamp Tube?
A: Yes. We customize wattage, voltage, length, diameter, shape, reflector, end cap, lead wire, logo, and packaging.
Q6: What is the rated life of Carbon Fiber Heating Lamp Tube?
A: Typical rated life is 5,000–10,000 hours, depending on wattage, operating temperature, and switching frequency.
Q7: What is the MOQ and lead time for Carbon Fiber Heating Lamp Tube?
A: MOQ is negotiable. Lead time is usually 7–25 days after specification confirmation.
Q8: Is Carbon Fiber Heating Lamp Tube safe to use?
A: The tube surface reaches high temperatures. Carbon Fiber Heating Lamp Tube must be installed inside a shielded housing and operated by trained professionals only.
Safety & Compliance Notice
Important: Carbon Fiber Heating Lamp Tube reaches high surface temperatures during operation and emits infrared radiation. It must be installed inside a properly designed, shielded housing and operated by trained professionals. This product is intended for B2B industrial use only and is not a consumer product. Buyers are responsible for verifying local safety, import, and environmental regulations before ordering.
