Gaskets & Seals
PTFE sheet is widely used to fabricate gaskets and seals for chemical, pharmaceutical and food processing equipment.

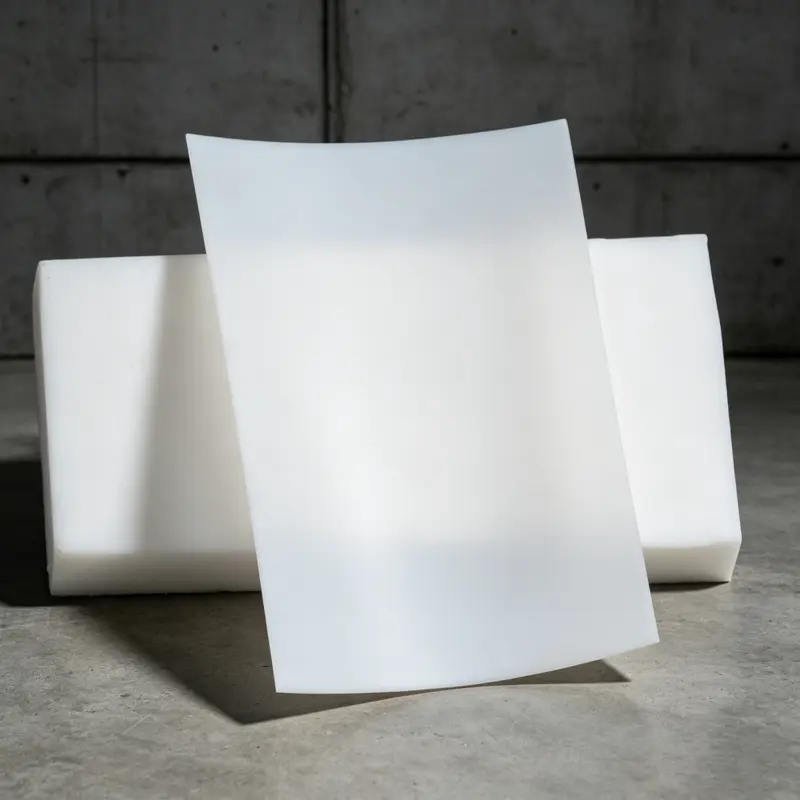

Industrial PTFE Sheet
PTFE Sheetfor Chemical Resistance, Low Friction & High-Temperature Service
PTFE (polytetrafluoroethylene) sheet for industrial gaskets, seals, linings and insulation. Manufactured from virgin or filled PTFE with outstanding chemical resistance, wide temperature range, low friction and excellent dielectric properties for demanding industrial applications.
Virgin & Filled PTFE
Chemical Resistant
ISO 9001 & RoHS
OEM & Bulk Orders
PTFE Sheet
High-Performance Fluoropolymer Sheet
OEM
Custom Supply
Our PTFE Sheet
PTFE Sheet Products
Explore PTFE sheet in virgin and filled grades for industrial gaskets, seals, linings, bearings and electrical insulation. Available in a wide range of thicknesses, sheet sizes and custom cut dimensions.
-
PTFE Sheet

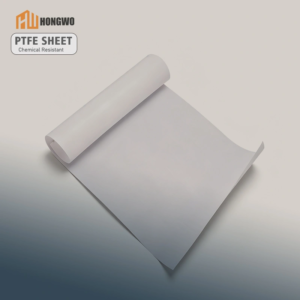

White Hard Teflon Sheet
-
PTFE Sheet

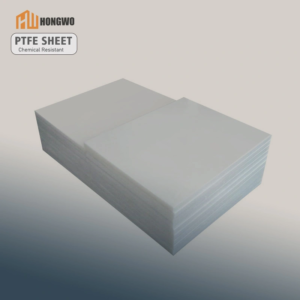

Soft Flexible Etched PTFE Sheet
-
PTFE Sheet
Expanded PTFE Sheet
PTFE Sheet Supplier
PTFE Sheet for Chemical, Thermal & Electrical Applications
PTFE sheet is a solid sheet material manufactured from polytetrafluoroethylene resin. It is selected for applications requiring outstanding chemical resistance, wide temperature range, low friction coefficient, non-stick surface and excellent electrical insulation properties.
PTFE sheet is available in virgin (unfilled) and filled grades. Filled grades incorporate additives such as glass fiber, carbon, graphite, bronze or molybdenum disulfide to improve specific properties including wear resistance, compressive strength, thermal conductivity and dimensional stability.
We supply PTFE sheet for overseas distributors, industrial buyers, gasket manufacturers, maintenance companies and OEM customers, with different grades, thicknesses, sheet sizes and custom cutting available according to specification.
Outstanding Chemical Resistance
PTFE is virtually inert to almost all chemicals, acids, solvents and alkalis.
Wide Temperature Range
Continuous service from -180°C to +260°C, with short-term tolerance at higher temperatures.
Low Friction & Non-Stick
PTFE has one of the lowest coefficients of friction of any solid material.
Excellent Electrical Insulation
High dielectric strength and low dielectric constant make PTFE ideal for electrical applications.
Material Advantages
Why Choose PTFE Sheet?
PTFE sheet combines outstanding chemical resistance, wide temperature capability, low friction and excellent dielectric properties for demanding industrial applications.
01
Chemical Inertness
PTFE is resistant to virtually all industrial chemicals, including strong acids, bases, solvents and oxidizing agents, making it suitable for aggressive media.
02
Wide Temperature Range
PTFE maintains its properties over a temperature range from approximately -180°C to +260°C, suitable for both cryogenic and high-temperature service.
03
Low Coefficient of Friction
PTFE has one of the lowest coefficients of friction of any solid material, typically between 0.05 and 0.10, reducing wear and energy loss.
04
Non-Stick Surface
The non-stick properties of PTFE prevent adhesion of most substances, making it easy to clean and ideal for anti-stick applications.
05
Excellent Electrical Insulation
PTFE exhibits high dielectric strength, low dielectric constant and low dissipation factor, making it ideal for high-frequency and high-voltage insulation.
06
Filled Grades Available
Glass, carbon, graphite, bronze and other fillers can be added to PTFE to improve wear resistance, compressive strength, thermal conductivity and dimensional stability.
Technical Specifications
PTFE Sheet Specifications
Technical properties depend on the PTFE grade (virgin or filled), manufacturing method and sheet thickness. The values below are typical for standard virgin PTFE sheet and should be confirmed for the selected grade before ordering.
| Product | PTFE Sheet (Virgin / Filled) |
|---|---|
| Material | Virgin PTFE or filled PTFE (glass fiber, carbon, graphite, bronze, MoS₂ etc. depending on grade) |
| Color | White / Natural for virgin PTFE; filled grades may be gray, black, brown or other colors |
| Density | Approximately 2.1–2.3 g/cm³ for virgin PTFE; filled grades may vary depending on filler type and content |
| Temperature Range | Continuous service: -180°C to +260°C; short-term tolerance up to +300°C depending on application and load |
| Tensile Strength | ≥ 15 MPa for virgin PTFE sheet (typical 25–35 MPa); filled grades may vary |
| Elongation at Break | ≥ 150% for virgin PTFE (typical 200–400%); filled grades typically lower |
| Hardness | Shore D 50–65 for virgin PTFE; filled grades may be higher |
| Coefficient of Friction | 0.05–0.10 (dynamic) for virgin PTFE against steel |
| Dielectric Strength | 18–60 kV/mm depending on thickness and test conditions |
| Chemical Resistance | Virtually inert to all chemicals except molten alkali metals, elemental fluorine and some fluorine compounds at elevated temperatures |
| Water Absorption | < 0.01% (virtually zero) |
| Sheet Thickness | 0.25 mm to 100 mm; custom thicknesses available subject to specification |
| Sheet Size | Standard sizes: 1000×1000 mm, 1000×2000 mm, 1220×1220 mm, 1220×2440 mm, 1500×1500 mm, 1500×3000 mm; custom sizes and cut pieces available |
| Supply Form | Sheet, cut-to-size pieces, roll (skived film), or customized dimensions subject to specification |
| Compliance | ISO 9001 quality management and RoHS compliance documentation available where applicable; FDA compliant grades available for food contact applications |
Sheet Dimensions
PTFE Sheet Size Chart
PTFE sheet is available in standard sheet sizes and a wide range of thicknesses. The following table lists commonly stocked dimensions. Custom sizes, thicknesses and cut pieces can be produced according to customer requirements.
| Thickness | Standard Sheet Size | Typical Application | Grade |
|---|---|---|---|
| 0.25 mm | 1000×1000 mm / 1000×2000 mm | Dielectric film, gasket, anti-stick liner | Virgin PTFE |
| 0.5 mm | 1000×1000 mm / 1000×2000 mm | Gasket, diaphragm, electrical insulation | Virgin PTFE |
| 1.0 mm | 1000×1000 mm / 1220×1220 mm | Gasket, seal, lining, insulation | Virgin / Filled PTFE |
| 1.5 mm | 1000×1000 mm / 1220×1220 mm | Gasket, seal, bearing pad | Virgin / Filled PTFE |
| 2.0 mm | 1000×1000 mm / 1220×1220 mm | Gasket, chemical lining, slide plate | Virgin / Filled PTFE |
| 3.0 mm | 1000×1000 mm / 1220×1220 mm | Gasket, seal, bearing, insulator | Virgin / Filled PTFE |
| 5.0 mm | 1000×1000 mm / 1220×1220 mm | Chemical lining, bearing pad, seal | Virgin / Filled PTFE |
| 10 mm | 1000×1000 mm / 1220×1220 mm | Machined components, heavy-duty seal | Virgin / Filled PTFE |
| 20 mm | 1000×1000 mm / 1220×1220 mm | Thick gasket, machined block, insulator | Virgin / Filled PTFE |
| 50 mm | 500×500 mm / 1000×1000 mm | Machined component, heavy-duty insulation | Virgin / Filled PTFE |
* Reference standard sheet sizes and thicknesses are shown for procurement guidance. Available sizes depend on the selected PTFE grade and manufacturing method. Custom thicknesses from 0.25 mm to 100 mm and custom sheet dimensions are available subject to specification.
Industrial Applications
PTFE Sheet Applications
PTFE sheet is used across a wide range of industries where chemical resistance, temperature stability, low friction and electrical insulation are required.
Chemical Process Equipment
Linings, diaphragms and components for aggressive chemical environments requiring outstanding resistance.
Electrical Insulation
High-frequency and high-voltage insulation components, connector insulators and cable spacers.
Bearings & Wear Pads
Low-friction slide plates, bearing pads and wear strips for machinery and structural applications.
Food & Pharmaceutical
FDA-compliant PTFE sheet for gaskets, seals and contact surfaces in food and pharmaceutical processing.
Machined Components
Stock material for CNC machining of custom parts, bushings, spacers and precision components.
Selection Guide
How to Choose PTFE Sheet
The correct PTFE sheet grade and dimensions should be selected based on chemical exposure, temperature, mechanical load, electrical requirements and machining needs.
01
Grade Selection
Choose virgin PTFE for broadest chemical resistance and electrical properties. Choose filled PTFE for improved wear resistance, compressive strength and dimensional stability.
02
Thickness & Size
Specify the required sheet thickness, width and length. Standard sizes are listed, and custom dimensions can be produced or cut to size.
03
Operating Conditions
Chemical exposure, temperature range, mechanical load, friction and wear conditions determine the appropriate grade and thickness.
04
Compliance Requirements
Specify if FDA compliance, RoHS documentation, or other material certifications are required for your application.
Manufacturing
Controlled Production for Consistent Quality
Consistent material composition, density, surface finish and dimensional accuracy are important for reliable PTFE sheet performance.
PROCESS / 01
Resin Selection
Virgin PTFE resin or filled compounds are selected according to the required grade and performance specifications.
PROCESS / 02
Molding / Skiving
PTFE sheet is produced by compression molding and sintering, or skiving from molded billets for thin gauges and film.
PROCESS / 03
Inspection & Testing
Finished sheet is checked for thickness tolerance, density, tensile strength, surface quality and other specified properties.
PROCESS / 04
Cutting & Packaging
Sheet can be supplied in standard sizes, cut to custom dimensions, or machined into components with protective packaging for export.
Why Choose hongwo
A B2B Supplier for Industrial Fluoropolymer Materials
We focus on supplying industrial fluoropolymer materials to overseas distributors, equipment manufacturers, maintenance companies and industrial buyers.
Industrial Product Focus
Focused on fluoropolymer materials and
industrial products for B2B applications.
ISO 9001 & RoHS
Quality management and RoHS compliance
documentation available where applicable.
OEM & Custom Supply
Support for customized grades, dimensions,
cut pieces and packaging.
Application-Based Support
Provide your application, chemical exposure
and operating conditions so we can help
identify a suitable PTFE sheet grade.
Request a Quote
Tell Us Your PTFE Sheet Requirements
The more technical information you provide, the more accurately we can recommend the appropriate PTFE sheet grade and prepare a quotation.
You can also send a drawing, required specifications or application details after our sales team contacts you.
FAQ
Frequently Asked Questions About PTFE Sheet
What is PTFE sheet?
PTFE sheet is a solid sheet material made from
polytetrafluoroethylene resin. It is used for gaskets,
seals, linings, bearings, insulators and machined
components requiring chemical resistance, low friction
and wide temperature capability.
What is the temperature range of PTFE sheet?
PTFE sheet can be used continuously from -180°C to
+260°C, with short-term tolerance up to +300°C depending
on load and application conditions.
What chemicals is PTFE sheet resistant to?
PTFE is virtually inert to almost all chemicals,
including strong acids, bases, solvents and oxidizing
agents. It is only attacked by molten alkali metals,
elemental fluorine and some fluorine compounds at
elevated temperatures.
What is the difference between virgin and filled PTFE sheet?
Virgin PTFE offers the best chemical resistance and
electrical properties. Filled PTFE incorporates additives
such as glass, carbon, graphite or bronze to improve
wear resistance, compressive strength, thermal
conductivity and dimensional stability.
What standard sizes are available?
Common sheet sizes include 1000×1000 mm, 1000×2000 mm,
1220×1220 mm, 1220×2440 mm, 1500×1500 mm and 1500×3000 mm.
Thicknesses range from 0.25 mm to 100 mm. Custom sizes
and cut pieces are available.
Can PTFE sheet be used for food contact applications?
Yes. FDA-compliant virgin PTFE sheet grades are available
for food and pharmaceutical contact applications. Please
specify your compliance requirements when requesting a
quotation.
Is PTFE sheet electrically insulating?
Yes. PTFE has excellent dielectric properties, with high
dielectric strength, low dielectric constant and low
dissipation factor, making it suitable for high-frequency
and high-voltage insulation.
Can PTFE sheet be machined?
Yes. PTFE sheet can be easily machined using conventional
tools to produce gaskets, seals, bushings and other
custom components. Filled grades provide improved
machinability and dimensional stability.
Is PTFE sheet RoHS compliant?
RoHS compliance can be provided for applicable grades
and documentation requirements. Please confirm the
required RoHS documentation and grade when requesting
a quotation.
What information do you need for a quotation?
Please provide the required grade (virgin or filled),
thickness, sheet dimensions, quantity, and any compliance
or application requirements.
Industrial PTFE Sheet
Get a PTFE Sheet Quote for Your Application
Tell us your grade, thickness, sheet size, operating conditions and compliance requirements. Our team will review your requirements and provide a suitable product recommendation and quotation.
