Industrial Graphite & Carbon Textile

Graphite & Carbon Cloth, Tape & Ropefor Extreme Temperature, Sealing & Electrical Conductivity

Graphite and carbon textile products including cloth, tape and rope. Manufactured from expanded graphite yarn or carbonized polyacrylonitrile (PAN) fiber, offering exceptional high-temperature resistance up to +2600°C in inert atmospheres, excellent chemical inertness, electrical conductivity and thermal stability for demanding sealing, insulation and industrial applications.

Request a Quote View Products View Specifications
Graphite & Carbon Fiber
Up to +2600°C in Inert Atmosphere
ISO 9001 & RoHS
OEM & Bulk Orders

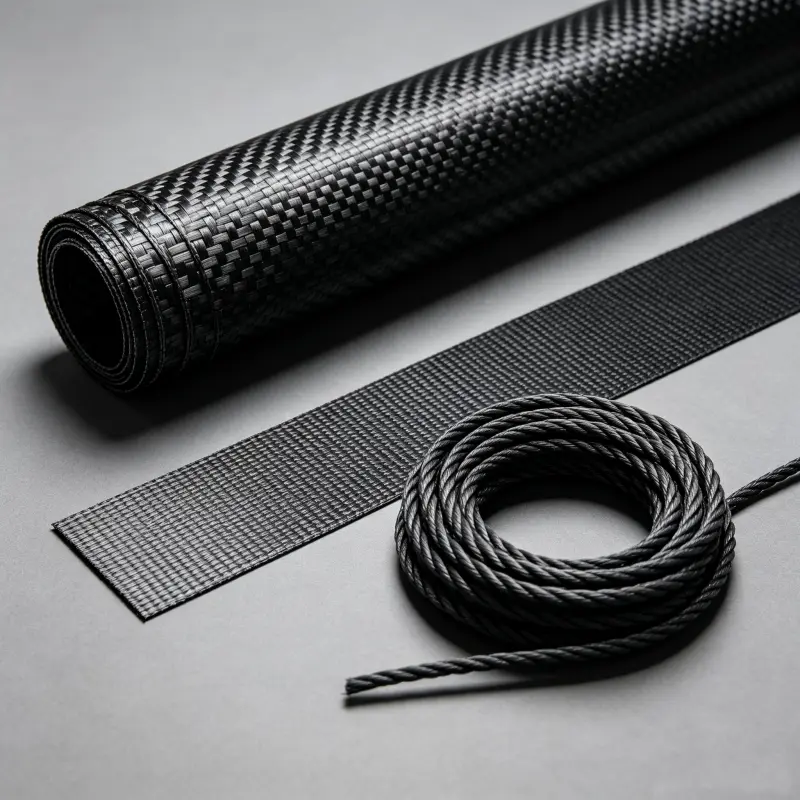

Graphite and carbon cloth, tape and rope for high-temperature industrial applications
Graphite & Carbon Textile Cloth, Tape & Rope for Extreme Temperature Service
OEM Custom Supply
01
Factory Supply Direct industrial manufacturing
02
ISO 9001 Quality management system
03
RoHS Compliant Material compliance available
04
OEM / ODM Custom specifications available
Our Graphite & Carbon Textile

Graphite & Carbon Cloth, Tape & Rope Products

Explore our range of graphite and carbon textile products including cloth, tape and rope. Available in expanded graphite and carbonized PAN fiber constructions with optional metallic wire reinforcement for enhanced mechanical properties and blow-out resistance.

Graphite and carbon cloth, tape and rope for industrial high-temperature applications
Graphite & Carbon Textile Supplier

Graphite & Carbon Textile for Extreme Temperature & Sealing

Graphite and carbon textile products are manufactured from either expanded graphite yarn or carbonized polyacrylonitrile (PAN) fiber. Expanded graphite textile is produced by knitting or weaving pure expanded graphite yarn, creating a flexible, high- strength material with excellent sealing properties. Carbon fiber textile is produced from carbonized PAN fiber, offering outstanding tensile strength and thermal stability.

Our product range includes graphite cloth (woven fabric for gaskets, fireproof cloth and sealing), graphite tape (braided tape for flange sealing and packing), carbon fiber rope (braided rope for refractory textile binding and conductive applications), and carbon fiber tape (woven tape for structural reinforcement and thermal insulation). Optional metallic wire reinforcement (Inconel, 304/316 stainless steel) significantly improves pressure resistance and blow-out resistance.

We supply graphite and carbon textile products for overseas distributors, industrial buyers, furnace manufacturers, maintenance companies and OEM customers, with different constructions, dimensions, reinforcement types and custom fabrication available according to specification.

Extreme Temperature Capability Graphite textile operates up to +650°C in air; carbon fiber rope up to +2600°C in inert gas.
Excellent Chemical Inertness Resistant to pH 0–14 range; exceptional resistance to acids, alkalis and solvents.
Flexible & Conformable Textile constructions conform to irregular surfaces for effective sealing and insulation.
Metallic Wire Reinforcement Optional Inconel or stainless steel wire for higher pressure and blow-out resistance.
Material Advantages

Why Choose Graphite & Carbon Textile?

Graphite and carbon textile products combine extreme temperature resistance, chemical inertness, sealing performance and electrical conductivity for the most demanding industrial applications.

01

Extreme Temperature Resistance

Graphite textile operates from -240°C to +650°C in air, and carbon fiber rope withstands up to +2600°C in inert atmospheres, suitable for the most demanding furnace and high-temperature applications.

02

Excellent Chemical Inertness

Graphite textile resists the full pH range (0–14), providing exceptional resistance to acids, alkalis, solvents and most industrial chemicals.

03

Superior Sealing Performance

Expanded graphite textile conforms to irregular surfaces and compresses under load, providing reliable sealing for flanges, vessels and heat exchangers.

04

Electrical & Thermal Conductivity

Carbon fiber textile offers excellent electrical and thermal conductivity, suitable for conductive electrodes, heating elements and thermal management applications.

05

Metallic Wire Reinforcement

Optional Inconel or stainless steel wire reinforcement increases pressure resistance (up to 200 bar for tape) and provides blow-out resistance.

06

B2B Industrial Supply

Suitable for industrial distributors, furnace manufacturers, OEM customers and bulk purchasing programs.

Material Comparison

Graphite & Carbon vs. Ceramic Fiber & Fiberglass

The following table provides a general comparison of typical properties for graphite/carbon textile, ceramic fiber and fiberglass products used in high-temperature insulation and sealing applications. Values are representative and may vary depending on specific grades and formulations.

Property Graphite / Carbon Textile Ceramic Fiber Fiberglass
Max. Temperature (Air) +650°C (graphite textile) +1260°C (classification) +550°C to +650°C
Max. Temperature (Inert) +2600°C (carbon fiber rope) +1430°C (classification) Not applicable
Chemical Resistance (pH Range) 0–14 (except strong oxidizers) Good; attacked by HF and strong alkalis Good; attacked by HF and hot phosphoric acid
Electrical Conductivity Excellent (conductive) Insulative Insulative
Thermal Conductivity High (conductive) Low (0.03–0.17 W/m·K) Low (0.03–0.05 W/m·K)
Density (Textile) 1.0–1.78 g/cm³ 500–600 kg/m³ ~100–200 kg/m³
Tensile Strength High (carbon fiber ≥4500 MPa) Moderate Moderate
Typical Applications Flange gaskets, heat exchanger seals, conductive electrodes, furnace insulation Furnace linings, kiln insulation, high-temp seals, fire protection Pipe insulation, electrical insulation, fire blankets

* Values are typical reference values for common grades and may vary depending on specific products and formulations. Graphite and carbon textile offers unique electrical conductivity and extreme temperature capability in inert atmospheres, while ceramic fiber provides the highest temperature insulation in air. Fiberglass is a cost-effective choice for moderate-temperature applications. Always confirm with our technical team for your application.

Technical Specifications

Graphite & Carbon Textile Specifications

Technical properties depend on product form, fiber type (expanded graphite or carbonized PAN) and reinforcement. The values below are typical for standard graphite and carbon textile products and should be confirmed for the selected product before ordering.

Product Expanded Graphite Cloth
Material Composition Expanded pure graphite yarn; optional reinforcement: Inconel wire, 304/316 stainless steel wire
Temperature Range -240°C to +550°C (air); up to +650°C (steam); +2000°C+ (inert atmosphere)
Pressure Range 100 bar (without wire reinforcement); 200 bar (with wire reinforcement)
pH Range 0–14
Thickness 1.5 mm to 6.0 mm; thickness tolerance ±0.05 mm
Width 50 mm to 1000 mm typical
Density 1.1–1.3 g/cm³; density tolerance ±0.1 g/cm³
Product Expanded Graphite Tape
Temperature Range -240°C to +430°C (oxidizing); up to +650°C (steam); +2000°C+ (inert)
Pressure Range 300–350 bar (static); 20 bar (rotating)
pH Range 0–14
Thickness 0.13 mm to 0.38 mm typical
Width 12.7 mm to 25.4 mm typical
Length 7.6 m to 14.2 m per roll
Product Carbon Fiber Rope
Material Composition Carbonized polyacrylonitrile (PAN) fiber; carbon content ≥95%
Temperature Range Max +2600°C (in inert gas); requires inert gas protection above +400°C
Diameter Range Φ2 mm to Φ10 mm typical; custom sizes available
Tensile Strength ≥4500 MPa (fiber); rope breaking load ≥100 N (Φ2 mm) to ≥400 N (Φ8 mm)
Density 1.78 g/cm³
Ash Content ≤0.5%
Product Carbon Fiber Tape (Woven)
Thickness 0.25 mm to 0.40 mm typical
Width 15 mm to 180 mm typical
Weight 200 g/m² to 320 g/m²
Supply Form Cloth in rolls, tape in rolls, rope in coils or spools; custom packaging available
Compliance ISO 9001 quality management; RoHS compliance available where applicable
Product Dimensions

Graphite & Carbon Textile Size Chart

Graphite and carbon textile products are available in a wide range of standard dimensions. The following table lists common size ranges for each product form. Custom dimensions can be produced according to customer requirements.

Product Form Common Size Range Typical Application Reinforcement
Expanded Graphite Cloth Thickness: 1.5–6.0 mm; Width: 50–1000 mm; Density: 1.1–1.3 g/cm³ Gaskets, fireproof cloth, vessel and flange sealing, heat exchanger seals None / Inconel wire / SS wire
Expanded Graphite Tape Thickness: 0.13–0.38 mm; Width: 12.7–25.4 mm; Length: 7.6–14.2 m/roll Flange sealing, packing, boiler and pipe sealing, universal gasket None / SS wire
Carbon Fiber Rope Diameter: Φ2–Φ10 mm Refractory textile binding, conductive electrodes, high-temperature sewing None
Carbon Fiber Tape (Woven) Thickness: 0.25–0.40 mm; Width: 15–180 mm; Weight: 200–320 g/m² Structural reinforcement, thermal insulation, wear resistance None

* Reference sizes are shown for procurement guidance. Custom dimensions, reinforcement types and grades are available subject to specification. Consult our team for non-standard products.

Industrial Applications

Graphite & Carbon Textile Applications

Graphite and carbon textile products are used across a wide range of high-temperature and electrically conductive industrial applications for sealing, insulation and thermal management.

Flange & Vessel Sealing

Endless gasket strips for vessels, flanges and heat exchangers with extreme uneven surfaces using expanded graphite tape and cloth.

Boilers & Pipes

High-temperature sealing for boilers, pipe flanges, doors and covers using graphite tape and cloth with optional wire reinforcement.

Refractory & Furnace Applications

Binding and sewing of refractory textiles, furnace insulation and high-temperature seals using carbon fiber rope and graphite cloth.

Conductive Electrodes

Negative ion conductive electrodes and electrically conductive components using carbon fiber rope and graphite textile.

Structural Reinforcement

Carbon fiber tape for reinforcement of beams, slabs, columns and structural components in construction and industrial applications.

Thermal Insulation & Fire Protection

Fireproof cloth and thermal barriers for doors, covers and high-temperature equipment using graphite and carbon textile.

Selection Guide

How to Choose Graphite & Carbon Textile Products

The correct product form, fiber type, reinforcement and dimensions should be selected based on operating temperature, atmosphere, chemical exposure and mechanical requirements.

01

Product Form Selection

Choose graphite cloth for gaskets and fireproof applications; graphite tape for flange sealing and packing; carbon fiber rope for refractory binding and conductive applications; carbon fiber tape for structural reinforcement.

02

Atmosphere & Temperature

Graphite textile operates up to +650°C in air. For higher temperatures up to +2600°C, carbon fiber products must be used in inert or vacuum atmospheres.

03

Reinforcement Selection

Choose Inconel or stainless steel wire reinforcement for higher pressure (up to 200 bar) and blow-out resistance in demanding sealing applications.

04

Compliance Requirements

Specify if RoHS, fire rating, or other certifications are required for your application.

Manufacturing

Controlled Production for Consistent Quality

Consistent fiber quality, weave density and dimensional accuracy are critical for reliable graphite and carbon textile performance.

PROCESS / 01

Fiber Preparation

Expanded graphite yarn or carbonized PAN fiber is prepared according to the required product specifications.

PROCESS / 02

Weaving / Braiding

Fibers are woven or braided into cloth, tape or rope form using precision looms and braiding machines, with optional metallic wire reinforcement.

PROCESS / 03

Inspection & Testing

Products are inspected for weight, thickness, width, density, carbon content and surface quality.

PROCESS / 04

Packaging & Shipment

Products are rolled or coiled and packaged with protective wrapping for safe transport and storage.

Graphite and carbon textile manufacturing and supply
Why Choose hongwo

A B2B Supplier for Graphite & Carbon Textile Products

We focus on supplying high-quality graphite and carbon textile products to overseas distributors, furnace manufacturers, maintenance companies and industrial buyers.

01
Complete Textile Range Graphite cloth, tape, carbon fiber rope and tape from a single supplier for simplified procurement.
02
ISO 9001 & RoHS Quality management and RoHS compliance documentation available where applicable.
03
OEM & Custom Supply Support for customized dimensions, reinforcement types and packaging.
04
Application-Based Support Provide your operating temperature and application so we can help identify the suitable graphite or carbon textile product.

Need Graphite or Carbon Textile for Your Application?

Send your required product form, fiber type, dimensions, operating temperature and atmosphere. Get a suitable product recommendation and quotation.

Request a Quote

Tell Us Your Graphite & Carbon Textile Requirements

The more technical information you provide, the more accurately we can recommend the appropriate graphite or carbon textile product and prepare a quotation.

You can also send a drawing, required specifications or application details after our sales team contacts you.

    FAQ

    Frequently Asked Questions About Graphite & Carbon Textile

    What is graphite and carbon textile?
    Graphite and carbon textile refers to high-temperature textile products made from expanded graphite yarn or carbonized PAN fiber, including cloth, tape and rope. They are used for sealing, insulation, fire protection and conductive applications.
    What is the maximum temperature of graphite and carbon textile?
    Graphite textile operates up to +650°C in air and +2000°C+ in inert atmospheres. Carbon fiber rope withstands up to +2600°C in inert gas. Above +400°C, carbon fiber products must be used under inert gas protection.
    What is the difference between graphite textile and carbon fiber textile?
    Graphite textile is made from expanded graphite yarn and offers excellent sealing and chemical resistance. Carbon fiber textile is made from carbonized PAN fiber and offers higher tensile strength and extreme temperature resistance in inert atmospheres.
    What forms of graphite and carbon textile are available?
    We supply expanded graphite cloth, expanded graphite tape, carbon fiber rope and carbon fiber tape. Each form is suited to different applications: cloth for gaskets and fireproofing, tape for flange sealing, rope for refractory binding and conductive electrodes, and tape for structural reinforcement.
    What sizes and dimensions are available?
    Graphite cloth thickness ranges from 1.5 mm to 6.0 mm with widths of 50–1000 mm. Graphite tape thickness ranges from 0.13 mm to 0.38 mm with widths of 12.7–25.4 mm. Carbon fiber rope diameter ranges from Φ2 mm to Φ10 mm. Custom dimensions are available.
    Is graphite and carbon textile chemically resistant?
    Yes. Graphite textile resists the full pH range (0–14) and is resistant to most acids, alkalis and solvents. It is not recommended for strong oxidizing agents.
    Can graphite tape be used for flange sealing?
    Yes. Expanded graphite tape is widely used as an endless gasket strip for vessels, flanges and heat exchangers, especially for extreme uneven surfaces and high-temperature/high-pressure applications.
    Is graphite and carbon textile RoHS compliant?
    RoHS compliance can be provided for applicable grades and documentation requirements. Please confirm when requesting a quotation.
    What information do you need for a quotation?
    Please provide the required product form (cloth, tape or rope), fiber type (graphite or carbon), dimensions (thickness, width, diameter), reinforcement type (none, Inconel wire, SS wire), quantity, and any special requirements.
    Industrial Graphite & Carbon Textile

    Get a Graphite & Carbon Textile Quote for Your Application

    Tell us your product form, fiber type, dimensions and operating conditions. Our team will review your requirements and provide a suitable product recommendation and quotation.

    Request a Quote
