Industrial Ceramic Fiber Insulation Products

Ceramic Fiber InsulationCloth, Tape, Rope, Blanket, Board & Paper for High-Temperature Service

Ceramic fiber insulation products including ceramic fiber cloth, tape, rope, blanket, board and paper. Manufactured from high-purity alumina-silicate fibers, offering excellent thermal insulation, high-temperature resistance up to +1430°C, low thermal conductivity and chemical stability for furnaces, kilns, boilers and industrial equipment.

Request a Quote View Products View Specifications
Cloth, Tape, Rope, Blanket, Board & Paper
Up to +1430°C Service Temperature
ISO 9001 & RoHS
OEM & Bulk Orders

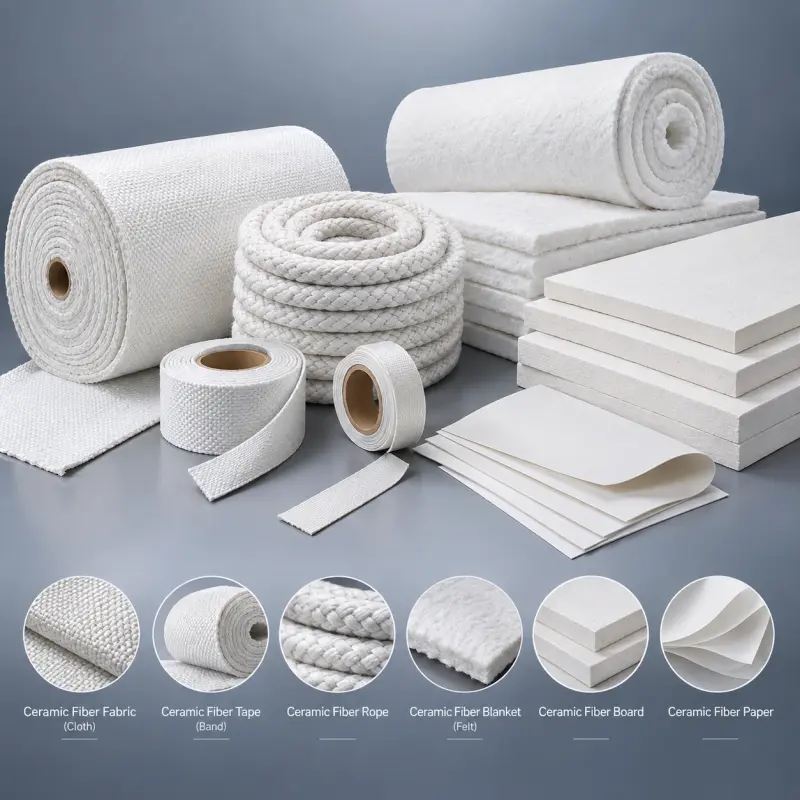

Ceramic fiber insulation products for high-temperature industrial applications
Ceramic Fiber Insulation Complete Range of High-Temperature Products
OEM Custom Supply
01
Factory Supply Direct industrial manufacturing
02
ISO 9001 Quality management system
03
RoHS Compliant Material compliance available
04
OEM / ODM Custom specifications available
Our Ceramic Fiber Products

Ceramic Fiber Insulation Product Range

Explore our complete range of ceramic fiber insulation products including cloth, tape, rope, blanket, board and paper. Manufactured from high-purity alumina-silicate fibers with classification temperatures from +1100°C to +1430°C, suitable for diverse high-temperature industrial applications.

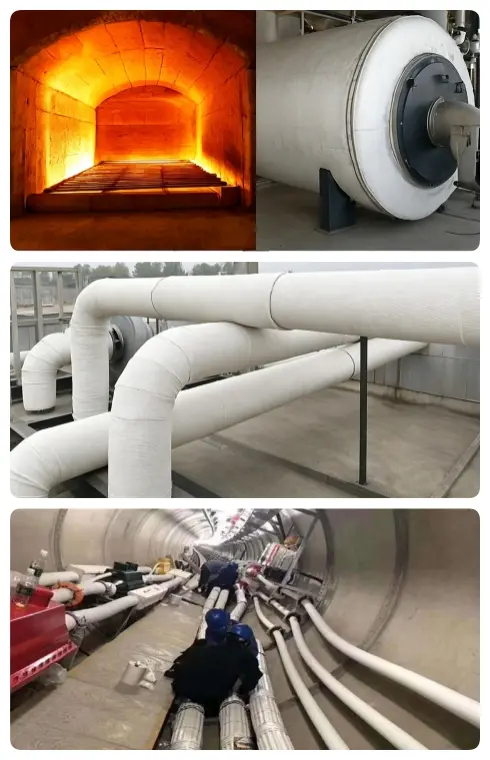

Ceramic fiber insulation products for industrial high-temperature applications
Ceramic Fiber Insulation Supplier

Complete Ceramic Fiber Solutions for High-Temperature Insulation

Ceramic fiber insulation products are manufactured from high-purity alumina-silicate fibers produced by melting and fiberizing a blend of alumina and silica. These products offer an outstanding combination of low thermal conductivity, high-temperature resistance, thermal shock resistance and light weight, making them the material of choice for industrial furnace and kiln insulation.

Our product range includes ceramic fiber cloth, tape and rope (textile products for sealing, wrapping and gasketing), ceramic fiber blanket (needled blanket for furnace linings and backup insulation), ceramic fiber board (rigid board for hot-face and structural insulation), and ceramic fiber paper (thin paper for gasketing, parting and electrical insulation). Each product form is available in multiple grades including standard (1260°C), high-alumina (1350°C), and zirconia-containing (1430°C) to suit different temperature requirements.

We supply ceramic fiber insulation products for overseas distributors, industrial buyers, furnace manufacturers, maintenance companies and OEM customers, with different grades, dimensions, densities and custom fabrication available according to specification.

Complete Product Range Cloth, tape, rope, blanket, board and paper to cover all high-temperature insulation needs.
High-Temperature Capability Classification temperatures from +1100°C to +1430°C, suitable for most industrial furnace applications.
Low Thermal Conductivity Thermal conductivity as low as 0.034 W/(m·K) at room temperature, reducing heat loss and energy consumption.
Lightweight & Easy Installation Low density reduces structural load and simplifies installation compared to refractory bricks.
Material Advantages

Why Choose Ceramic Fiber Insulation?

Ceramic fiber insulation provides unmatched high-temperature performance, thermal efficiency and design flexibility for industrial furnace and kiln applications.

01

Excellent High-Temperature Resistance

Ceramic fiber products withstand continuous service temperatures up to +1350°C and classification temperatures up to +1430°C, suitable for the most demanding furnace environments.

02

Low Thermal Conductivity

With thermal conductivity as low as 0.034 W/(m·K), ceramic fiber insulation significantly reduces heat loss and improves energy efficiency compared to traditional refractories.

03

Thermal Shock Resistance

Ceramic fiber products resist rapid temperature changes without cracking or spalling, ideal for cyclic furnace operations.

04

Lightweight Construction

Low density (64–500 kg/m³ depending on product) reduces structural steel requirements and enables faster installation.

05

Chemical Stability

Ceramic fiber is resistant to most chemicals except hydrofluoric acid and strong alkalis, ensuring long service life in aggressive environments.

06

B2B Industrial Supply

Suitable for industrial distributors, furnace manufacturers, OEM customers and bulk purchasing programs.

Material Comparison

Ceramic Fiber vs. Asbestos & Fiberglass

The following table provides a general comparison of typical properties for ceramic fiber, asbestos and fiberglass insulation materials. Values are representative and may vary depending on specific grades and formulations.

Property Ceramic Fiber Asbestos Fiber Fiberglass
Classification Temperature +1260°C to +1430°C (up to +1600°C for special grades) +350°C to +400°C +550°C to +650°C
Continuous Use Temperature +1000°C to +1350°C +350°C to +400°C +500°C to +550°C
Thermal Conductivity (600°C) ~0.10–0.13 W/(m·K) ~0.15 W/(m·K) ~0.20–0.30 W/(m·K)
Density Range 64–500 kg/m³ (varies by product form) ~150–250 kg/m³ ~100–200 kg/m³
Health & Safety Safe; bio-soluble grades available Carcinogenic; banned in many countries Safe; may cause skin irritation
Chemical Resistance Good; attacked by HF and strong alkalis Good resistance to most chemicals Good; attacked by HF and hot phosphoric acid
Thermal Shock Resistance Excellent Good Moderate
Typical Applications Furnace linings, kiln insulation, high-temp seals, boiler insulation Legacy gaskets, insulation (restricted) Pipe insulation, electrical insulation, fire blankets

* Values are typical reference values for common grades and may vary depending on specific products and formulations. Ceramic fiber offers the highest temperature capability among these materials, while fiberglass is a cost-effective choice for moderate-temperature applications. Asbestos is regulated or banned in most jurisdictions due to health hazards. Always confirm with our technical team for your application.

Technical Specifications

Ceramic Fiber Insulation Specifications

Technical properties depend on product form, grade (standard, high-alumina, zirconia-containing) and density. The values below are typical for standard-grade ceramic fiber products and should be confirmed for the selected product before ordering.

Product Ceramic Fiber Cloth / Tape / Rope
Material Composition Alumina-silicate fiber (Al₂O₃ + SiO₂ ≥ 96%); optional reinforcement: glass filament, stainless steel wire (304/316)
Classification Temperature +1260°C
Working Temperature +450°C (glass filament reinforced); +1000°C (stainless steel wire reinforced)[reference:0]
Cloth Thickness 1.5 mm to 6 mm typical[reference:1]
Cloth Width 1000 mm to 1500 mm typical[reference:2]
Tape Width 10 mm to 150 mm[reference:3]
Tape Thickness 2 mm to 9 mm[reference:4]
Rope Diameter 3 mm to 50 mm typical; braided rope up to 100 mm[reference:5]
Organic Content ≤ 15% typical[reference:6]
Product Ceramic Fiber Blanket
Density 64 / 96 / 128 / 160 kg/m³[reference:7]
Thickness 6 mm to 50 mm typical; standard thicknesses: 10, 20, 25, 30, 40, 50 mm[reference:8]
Width 610 mm / 1220 mm[reference:9]
Length 3600 / 7200 / 14400 mm depending on thickness[reference:10]
Product Ceramic Fiber Board
Density 220–500 kg/m³[reference:11]
Classification Temperature +1000°C to +1800°C depending on grade[reference:12]
Standard Size 1000×600 mm, 1000×1200 mm, 500×500 mm; other sizes available[reference:13]
Product Ceramic Fiber Paper
Density 180–220 kg/m³[reference:14]
Thickness 0.5 mm to 13 mm typical[reference:15]
Width 610 mm / 1220 mm[reference:16]
Thermal Conductivity (800°C) 0.10–0.12 W/(m·K)[reference:17]
Supply Form Cloth in rolls, tape in rolls, rope in coils, blanket in rolls, board in sheets, paper in rolls; custom packaging available
Compliance ISO 9001 quality management; RoHS compliance available where applicable
Product Dimensions

Ceramic Fiber Product Size Chart

Ceramic fiber products are available in a wide range of standard dimensions. The following table lists common size ranges for each product form. Custom dimensions can be produced according to customer requirements.

Product Form Common Size Range Typical Application Density
Ceramic Fiber Cloth Thickness: 1.5–6 mm; Width: 1000–1500 mm; Length: 30 m/roll Furnace curtains, expansion joints, gaskets, fire protection 500–650 kg/m³
Ceramic Fiber Tape Width: 10–150 mm; Thickness: 2–9 mm; Length: 30–50 m/roll Pipe wrapping, cable insulation, flange seals 500–650 kg/m³
Ceramic Fiber Rope Diameter: 3–100 mm; twisted, braided and knitted constructions Furnace door seals, expansion joint packing, gaskets 500–650 kg/m³
Ceramic Fiber Blanket Thickness: 6–50 mm; Width: 610/1220 mm; Length: 3600–14400 mm Furnace linings, backup insulation, kiln insulation 64 / 96 / 128 / 160 kg/m³
Ceramic Fiber Board Thickness: 10–100 mm; Standard: 1000×600 mm, 1000×1200 mm Hot-face insulation, expansion joints, structural insulation 220–500 kg/m³
Ceramic Fiber Paper Thickness: 0.5–13 mm; Width: 610/1220 mm; Length: 20–100 m/roll Gaskets, parting agents, electrical insulation, sealing 180–220 kg/m³

* Reference sizes are shown for procurement guidance. Custom dimensions, densities and grades are available subject to specification. Consult our team for non-standard products.

Industrial Applications

Ceramic Fiber Insulation Applications

Ceramic fiber insulation products are used across a wide range of high-temperature industrial applications for thermal insulation, sealing, fire protection and thermal management.

Industrial Furnaces & Kilns

Hot-face and backup insulation for ceramic kilns, heat treatment furnaces, forging furnaces and annealing lines using blanket and board.

Boilers & Power Generation

Insulation for power boilers, waste incineration units, turbine insulation and ductwork using blanket, board and paper.

High-Temperature Sealing

Furnace door seals, expansion joint packing, and gaskets using ceramic fiber rope, tape and cloth.

Petrochemical & Refining

Insulation for fired heaters, reformers, thermal oxidizers and process vessels using ceramic fiber products.

Glass & Metal Processing

Glass furnace crown insulation, metal heat treatment equipment and foundry insulation using ceramic fiber board and blanket.

General High-Temperature Insulation

Pipe insulation, chimney insulation, radiant heat shields and fire protection using ceramic fiber textiles and paper.

Selection Guide

How to Choose Ceramic Fiber Insulation Products

The correct product form, grade and dimensions should be selected based on operating temperature, application requirements, chemical environment and mechanical constraints.

01

Product Form Selection

Choose blanket or board for large-area furnace linings; cloth, tape or rope for sealing and wrapping; paper for thin gaskets and parting applications.

02

Grade & Temperature

Standard grade (1260°C) for general use; high-alumina (1350°C) for higher temperature; zirconia-containing (1430°C) for the most demanding applications.

03

Density & Thickness

Higher density provides better mechanical strength and erosion resistance; lower density offers better thermal insulation. Thickness determines thermal resistance.

04

Reinforcement Options

Glass filament reinforcement for up to +450°C; stainless steel wire reinforcement for up to +1000°C. Choose based on operating temperature and mechanical stress.

Manufacturing

Controlled Production for Consistent Quality

Consistent fiber chemistry, density control and dimensional accuracy are critical for reliable ceramic fiber insulation performance.

PROCESS / 01

Fiber Production

High-purity alumina and silica are melted and fiberized to produce ceramic fiber bulk, which forms the base material for all product forms.

PROCESS / 02

Product Forming

Ceramic fiber bulk is processed into blankets (needling), boards (vacuum forming), paper (papermaking), or textiles (spinning, weaving, braiding).

PROCESS / 03

Inspection & Testing

Products are inspected for density, thickness, dimensional accuracy, thermal conductivity and classification temperature.

PROCESS / 04

Packaging & Shipment

Products are packaged in rolls, sheets or cartons with protective wrapping for safe transport and storage.

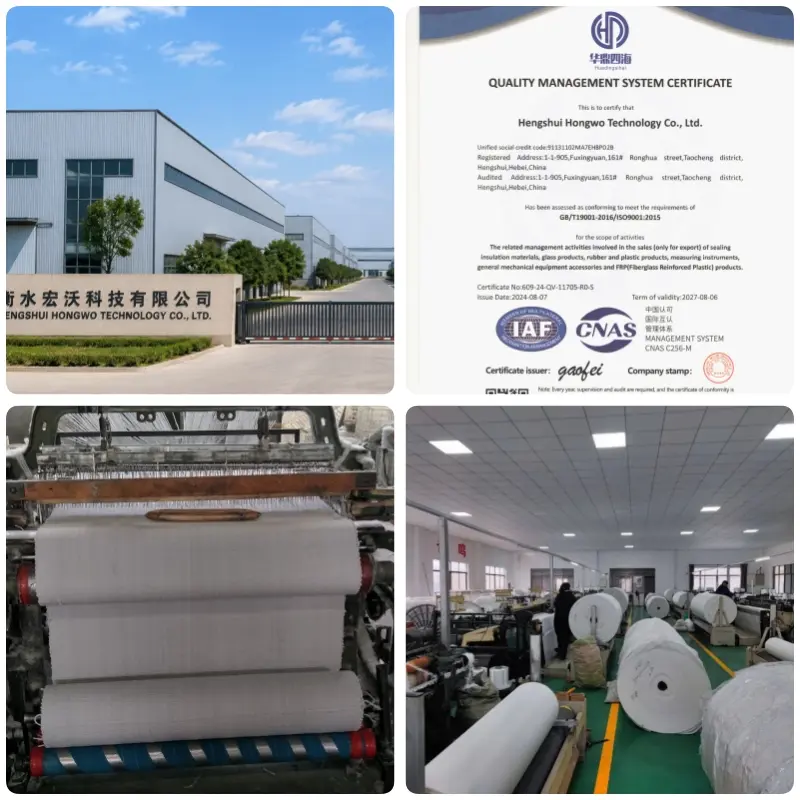

Ceramic fiber insulation products manufacturing and supply
Why Choose hongwo

A B2B Supplier for High-Temperature Insulation Materials

We focus on supplying high-quality ceramic fiber insulation products to overseas distributors, furnace manufacturers, maintenance companies and industrial buyers.

01
Complete Product Range Cloth, tape, rope, blanket, board and paper from a single supplier for simplified procurement.
02
ISO 9001 & RoHS Quality management and RoHS compliance documentation available where applicable.
03
OEM & Custom Supply Support for customized grades, dimensions, densities and packaging.
04
Application-Based Support Provide your operating temperature and application so we can help identify the suitable ceramic fiber product.

Need Ceramic Fiber Insulation for Your Application?

Send your required product form, grade, dimensions, operating temperature and application. Get a suitable product recommendation and quotation.

Request a Quote

Tell Us Your Ceramic Fiber Insulation Requirements

The more technical information you provide, the more accurately we can recommend the appropriate ceramic fiber product and prepare a quotation.

You can also send a drawing, required specifications or application details after our sales team contacts you.

    FAQ

    Frequently Asked Questions About Ceramic Fiber Insulation

    What is ceramic fiber insulation?
    Ceramic fiber insulation is a high-temperature insulation material made from alumina-silicate fibers. It is available in multiple forms including cloth, tape, rope, blanket, board and paper, used for furnace linings, high-temperature sealing and thermal management.
    What is the maximum temperature of ceramic fiber products?
    Standard-grade ceramic fiber products have a classification temperature of +1260°C. High-alumina grades reach +1350°C, and zirconia-containing grades reach +1430°C. Special high-purity grades can reach +1600°C.
    What is the difference between ceramic fiber and fiberglass?
    Ceramic fiber withstands much higher temperatures (+1260°C to +1430°C) compared to fiberglass (+550°C to +650°C). Ceramic fiber also has lower thermal conductivity at high temperatures, making it more effective for furnace insulation.
    What forms of ceramic fiber products are available?
    We supply ceramic fiber cloth, tape, rope, blanket, board and paper. Each form is suited to different applications: blanket and board for furnace linings, cloth/tape/rope for sealing and wrapping, and paper for thin gaskets and parting.
    What sizes and thicknesses are available?
    Cloth thickness ranges from 1.5 mm to 6 mm. Blanket thickness ranges from 6 mm to 50 mm with densities from 64 to 160 kg/m³. Board thickness ranges from 10 mm to 100 mm. Paper thickness ranges from 0.5 mm to 13 mm. Custom dimensions are available.
    Is ceramic fiber safe to use?
    Yes. Modern ceramic fiber products, especially bio-soluble grades, are designed to be safe when handled properly. Appropriate protective equipment (gloves, dust mask) should be used during installation.
    Can ceramic fiber products be used in boilers and kilns?
    Yes. Ceramic fiber blanket and board are widely used for boiler insulation, kiln linings, and high- temperature furnace applications. Cloth, tape and rope are used for seals and expansion joints in these applications.
    Is ceramic fiber insulation RoHS compliant?
    RoHS compliance can be provided for applicable grades and documentation requirements. Please confirm when requesting a quotation.
    What information do you need for a quotation?
    Please provide the required product form (cloth, tape, rope, blanket, board or paper), grade/temperature, dimensions (thickness, width, density), quantity, and any special requirements.
    Industrial Ceramic Fiber Insulation

    Get a Ceramic Fiber Insulation Quote for Your Application

    Tell us your product form, grade, dimensions and operating conditions. Our team will review your requirements and provide a suitable product recommendation and quotation.

    Request a Quote
