Industrial FRP Grating (Fiberglass Gratings)
FRP Gratingfor Corrosion Resistance, Slip Safety & Heavy-Duty Industrial Flooring
Pultruded and molded fiberglass reinforced plastic (FRP/GRP) grating for industrial platforms, walkways, trench covers, stair treads and structural flooring. Manufactured from E-glass fiber and corrosion-resistant resin, offering excellent chemical resistance, high strength-to-weight ratio, slip resistance and long service life as a superior alternative to steel and aluminum grating.
Free Design Drawings
Free Solution Support
ISO 9001 & RoHS
OEM & Bulk Orders
FRP Grating
Fiberglass Reinforced Plastic Grating
OEM
Custom Supply
Our FRP Grating
Fiberglass Grating Product Range
Explore our range of molded and pultruded FRP grating for industrial flooring, platforms, walkways, trench covers and stair treads. Available in standard square mesh, mini mesh, micro mesh and rectangular mesh configurations, with custom panel sizes, resin systems and surface finishes.
-
FRP Grating
4’x8 Fiberglass Grating
-
FRP Grating
Conductive Top FRP Grating
-
FRP Grating
Covered Fiberglass Grating
-
FRP Grating
Fiberglass Grating Fasteners
-
FRP Grating
FRP Gritted Grating
-
FRP Grating
High Load Capacity Molded Grating
-
FRP Grating
Mini Mesh FRP Molded Grating
-
FRP Grating
Molded FRP Grating
-
FRP Grating
Pultruded Fiberglass Grating
-
FRP Grating
Smooth FRP Grating
FRP Grating Supplier
Fiberglass Grating for Corrosive & Heavy-Duty Environments
FRP (Fiber Reinforced Plastic) grating is a structural flooring material manufactured from continuous E-glass fiber reinforcement and thermosetting resin. Molded grating is produced by laying glass fibers in a mold in both directions and saturating them with resin, creating a one-piece panel with exceptional bi-directional strength. Pultruded grating is manufactured by pulling continuous glass fibers through a resin bath and heated die, resulting in higher stiffness and load capacity.
Our FRP grating products are available in standard square mesh (38×38 mm, 40×40 mm, 50×50 mm), mini mesh (19×19/38×38 mm, 20×20/40×40 mm), micro mesh and rectangular mesh configurations. Standard panel sizes include 1220×3660 mm, 1220×2440 mm, 1000×2000 mm, 915×3050 mm and other dimensions. Available resin systems include orthophthalic polyester, isophthalic polyester and vinyl ester for different chemical exposure levels.
We supply FRP grating for overseas distributors, industrial buyers, construction companies, maintenance companies and OEM customers, with free design drawings and free solution support to ensure your project meets its specific load, span and corrosion requirements.
Free Design Drawings
Provide your span, load and environmental requirements — we deliver free CAD drawings and panel layouts.
Free Solution Support
Our engineering team recommends the optimal grating type, resin system, mesh size and thickness for your application.
Excellent Corrosion Resistance
Resists acids, alkalis, salt water and most industrial chemicals without protective coatings.
Slip Resistant
Gritted and concave (meniscus) surfaces provide secure footing in wet, oily and icy conditions.
Material Advantages
Why Choose FRP Grating?
FRP grating combines corrosion resistance, lightweight construction, high strength and slip safety, making it superior to traditional materials in many demanding industrial environments.
01
Superior Corrosion Resistance
FRP grating does not rust and resists acids, alkalis, salt water and most industrial chemicals. The resin system can be matched to the specific chemical exposure for optimal performance.
02
Lightweight & High Strength
With a density approximately 1/4 that of steel, FRP grating is easy to handle and install while providing excellent load-bearing performance. Pultruded grating weighs only 25% of steel and 70% of aluminum on an equal volume basis.
03
Slip Resistant Surfaces
Gritted anti-slip surfaces maintain high performance even after one million footfalls. Concave (meniscus) surfaces provide superior slip resistance in most environments.
04
Non-Conductive
FRP grating is non-conductive and non-magnetic, making it suitable for electrical infrastructure, switchgear and other sensitive applications.
05
Free Engineering Support
We provide free CAD design drawings, engineering calculations and technical recommendations to ensure your grating specification is correct for the load, span and environment.
06
B2B Industrial Supply
Suitable for industrial distributors, construction companies, OEM customers and bulk purchasing programs.
Free Engineering Services
Free Design Drawings & Solution Support
We provide complimentary engineering support to ensure your FRP grating specification is optimized for safety, performance and cost efficiency. Share your project requirements and our team will deliver the solution.
| Service | Free CAD design drawings and panel layout |
|---|---|
| Service | Load and deflection calculation for your span and load conditions |
| Service | Resin system and mesh size recommendation based on chemical exposure |
| Service | Cutting plans and installation guidance |
| Service | Technical consultation for platform, walkway and trench cover designs |
| Service | Free samples for design validation before bulk production[reference:0] |
| Service | Engineering certification and documentation available where required |
* To receive your free design drawings and solution support, simply send us your project span, load requirements, chemical exposure and dimensions. Our engineering team typically responds within 24–48 hours.
Material Comparison
FRP Grating vs. Steel, Aluminum & Timber
The following table provides a general comparison of typical properties for FRP grating versus traditional grating materials. Values are representative and may vary depending on specific grades and formulations.
| Property | FRP Grating | Steel Grating | Aluminum Grating | Timber |
|---|---|---|---|---|
| Specific Gravity | ~1.9 g/cm³ | 7.85 g/cm³ | 2.70 g/cm³ | 0.6–0.8 g/cm³ |
| Weight (Equivalent Volume) | ~25% of steel; ~70% of aluminum | Heavy | Light | Medium |
| Corrosion Resistance | Excellent; resin system matched to environment | Requires coating or galvanizing | Good in many environments | Poor; requires protection |
| Slip Resistance | Excellent (gritted/concave surfaces) | Depends on surface pattern | Depends on surface profile | Can become slippery when wet |
| Electrical Conductivity | Non-conductive | Conductive | Conductive | Variable with moisture |
| Maintenance Requirement | Low; no painting required | High (coating inspection) | Low | High (sealing, treatment) |
| Typical Service Life | Long in matched environment | Tied to corrosion protection | Good in suitable environments | Dependent on moisture |
| Fire Performance | Fire-retardant grades available | Non-combustible | Non-combustible | Combustible |
* Values are typical reference values for common grades and may vary depending on specific products and formulations. FRP grating offers the best combination of corrosion resistance, lightweight construction and low maintenance. Steel provides maximum stiffness and load capacity. Aluminum is a lightweight metallic alternative. Timber is economical but requires more maintenance. Always confirm with our technical team for your application.
Technical Specifications
FRP Grating Specifications
Technical properties depend on grating type (molded or pultruded), resin system, mesh size and thickness. The values below are typical for standard molded FRP grating and should be confirmed for the selected product before ordering.
| Product | Molded FRP Grating |
|---|---|
| Material Composition | E-glass fiber reinforcement, thermosetting resin (orthophthalic polyester, isophthalic polyester, or vinyl ester), aluminum hydroxide filler for fire retardancy |
| Standard Mesh Sizes | 38×38 mm, 40×40 mm, 50×50 mm, 43×43 mm, 52×52 mm, 79×79 mm, 83×83 mm |
| Mini/Micro Mesh Sizes | 19×19/38×38 mm, 20×20/40×40 mm, 25×25/50×50 mm, 12.7×12.7/38×38 mm, 8×8/38×38 mm |
| Rectangular Mesh Sizes | 25×50 mm, 25×100 mm, 38×100 mm, 25×152 mm, 38×152 mm, 60×220 mm |
| Grating Thickness | 12.6 mm to 65 mm; standard: 13, 15, 20, 25, 30, 38, 40, 50, 60, 65 mm |
| Load Bar Width (Top/Bottom) | 6.0/5.0 mm to 11.5/9.0 mm depending on thickness |
| Standard Panel Sizes | 1220×3660 mm, 1220×2440 mm, 1220×4000 mm, 915×3050 mm, 1000×2000 mm, 1000×3000 mm, 1007×3007 mm, 1524×4010 mm |
| Panel Weight | 6.0–50 kg/m² depending on thickness and mesh size; typical: 13 mm = 6.0 kg/m², 25 mm = 12.3 kg/m², 38 mm = 19.5 kg/m², 50 mm = 42 kg/m² |
| Open Area | Approximately 40%–78% depending on mesh size and thickness |
| Temperature Range | -80°C to +140°C depending on resin system[reference:1] |
| Surface Options | Concave (meniscus), gritted anti-slip, smooth, covered |
| Colors | Yellow, green, gray, black, blue, red, white; custom colors available |
| Product | Pultruded FRP Grating |
| Standard Mesh Sizes | 1-1/2"×4", 1"×4", 1"×6", 2"×6" (inch); 38×152 mm, 25×152 mm, 25×100 mm (metric) |
| Grating Thickness | 25 mm, 38 mm, 50 mm, 60 mm |
| Standard Panel Sizes | 1220×3660 mm, 1220×2440 mm, 1000×2000 mm |
| Load Bar Depth | 25 mm, 38 mm, 50 mm, 60 mm |
| Supply Form | Standard panels, cut-to-size panels, stair treads, trench covers, fabricated assemblies |
| Compliance | ISO 9001 quality management; RoHS compliance available; ASTM F3059 for marine applications |
Product Dimensions
FRP Grating Size Chart
FRP grating is available in a wide range of standard mesh sizes, thicknesses and panel dimensions. The following table lists common combinations with load capacity reference. Custom dimensions can be produced according to customer requirements.
| Mesh Size (mm) | Thickness (mm) | Load Bar Width (mm) | Standard Panel Size (mm) | Weight (kg/m²) | Typical UDL @ 1000 mm Span |
|---|---|---|---|---|---|
| 38×38 | 13 | 6.0/5.0 | 1220×3660 | 6.0 | — |
| 38×38 | 15 | 6.5/5.0 | 1220×3660 | 7.8 | — |
| 38×38 | 20 | 6.0/5.0 | 1220×3660 | 10.2 | — |
| 38×38 | 25 | 6.4/5.0 | 1220×3660 | 12.3 | 250 kg/m² |
| 38×38 | 30 | 6.5/5.0 | 1220×3660 | 14.6 | 350 kg/m² |
| 38×38 | 38 | 7.0/5.0 | 1220×3660 | 19.5 | — |
| 38×38 | 50 | 9.5/7.5 | 1220×3660 | 42.0 | — |
| 40×40 | 25 | 7.0/5.0 | 1247×4047 | 12.5 | — |
| 50×50 | 50 | — | 1220×3660 | 31.0 | — |
| 19×19/38×38 | 30 | 6.5/5.0 | 1220×3660 | 19.0 | — |
* Reference sizes and load values are shown for procurement guidance. Load capacity depends on span, support conditions, load type and deflection criteria. Contact our engineering team for free load calculations and design drawings. Custom dimensions, mesh sizes and resin systems are available subject to specification.
Industrial Applications
FRP Grating Applications
FRP grating is used across a wide range of industries where corrosion resistance, slip safety, lightweight construction and low maintenance are critical.
Wastewater Treatment
Weirs, baffles, walkways and covers in wet, corrosive and biologically active environments.
Marine & Offshore
Dock walkways, ship decks, offshore platforms and corrosion-resistant flooring in salt water environments.
Power Generation
Cooling tower platforms, cable trenches, and non-conductive flooring in electrical infrastructure areas.
Food & Beverage Processing
Wash-down areas, floor drains and platforms requiring easy cleaning and chemical resistance.

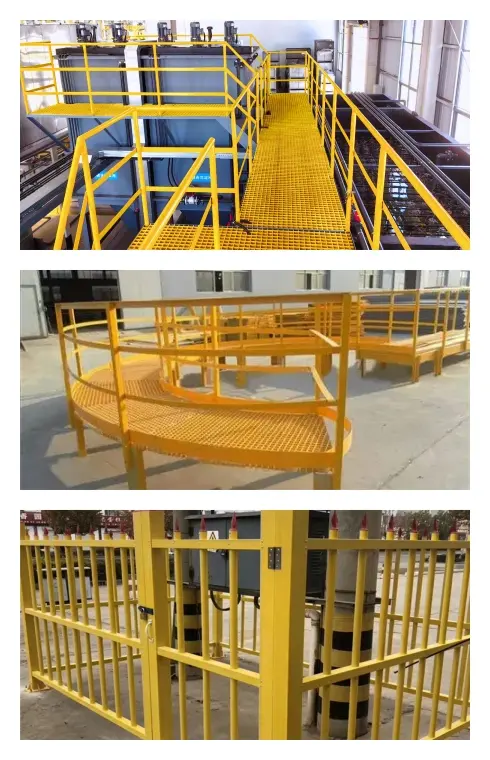

Industrial Platforms & Walkways
Elevated platforms, maintenance accessways, stair treads and mezzanine flooring in warehouses and factories.
Selection Guide
How to Choose FRP Grating
The correct grating type, mesh size, thickness and resin system should be selected based on span, load, chemical exposure and environmental conditions.
01
Grating Type
Choose molded grating for bi-directional strength and impact resistance; choose pultruded grating for higher stiffness, longer spans and heavier concentrated loads.
02
Mesh & Thickness
Select mesh size based on required open area, drainage and ball-fall safety requirements. Thickness determines load capacity and deflection.
03
Resin System
Orthophthalic polyester for general use; isophthalic polyester for enhanced corrosion resistance; vinyl ester for maximum chemical resistance in aggressive environments.
04
Surface & Compliance
Specify gritted surface for slip safety, concave for general use, or covered for odor containment. Confirm fire rating, ASTM F3059 or other compliance requirements.

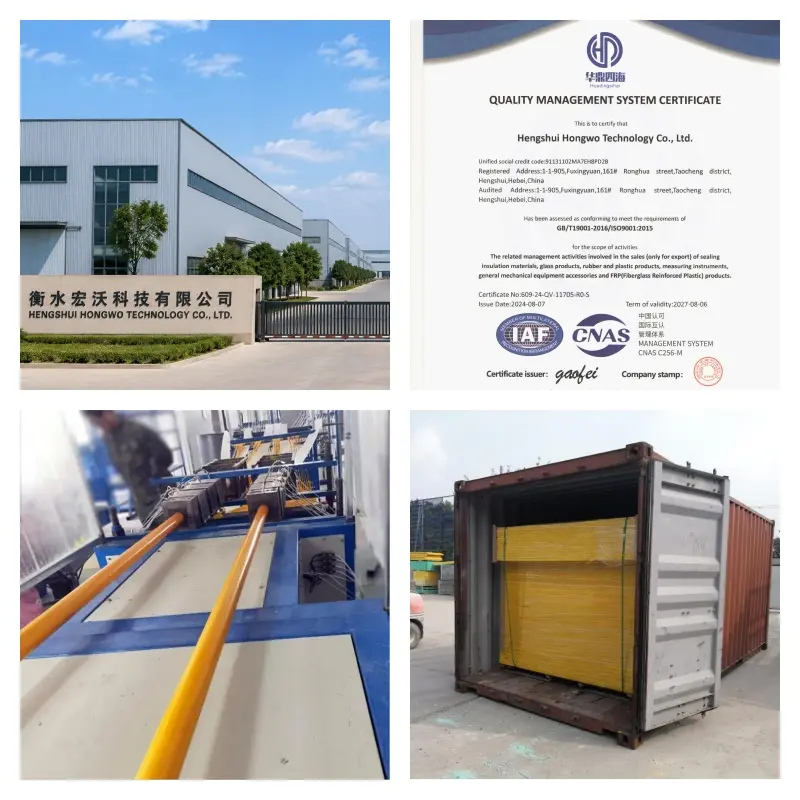

Manufacturing
Controlled Production for Consistent Quality
Precision fiber placement, resin impregnation and curing are critical for reliable FRP grating performance.
PROCESS / 01
Fiber Preparation
Continuous E-glass fibers are arranged in both directions for molded grating, or in the load direction for pultruded grating.
PROCESS / 02
Molding / Pultrusion
Fibers are saturated with resin and shaped in a heated mold (molded) or pulled through a heated die (pultruded) to form the grating structure.
PROCESS / 03
Inspection & Testing
Panels are inspected for dimensional accuracy, mesh uniformity, surface quality and load performance.
PROCESS / 04
Cutting & Packaging
Panels are cut to standard or custom sizes, and packaged with protective materials for safe transport.
Why Choose hongwo
A B2B Supplier for FRP Grating Products
We focus on supplying high-quality FRP grating products to overseas distributors, construction companies, maintenance companies and industrial buyers.
Free Design Drawings
Complimentary CAD drawings and panel
layouts for your project.
ISO 9001 & RoHS
Quality management and RoHS compliance
documentation available where applicable.
OEM & Custom Supply
Support for customized mesh sizes,
thicknesses, resin systems and packaging.
Application-Based Support
Provide your span, load and environment
so we can help identify the suitable
grating specification.
Request a Quote
Tell Us Your FRP Grating Requirements
The more technical information you provide, the more accurately we can recommend the appropriate FRP grating and prepare a quotation.
You can also send a drawing, load requirements or application details after our sales team contacts you. Our engineering team will provide free design drawings and solution support.
FAQ
Frequently Asked Questions About FRP Grating
What is FRP grating?
FRP (Fiber Reinforced Plastic) grating is a structural
flooring material made from glass fiber reinforcement
and thermosetting resin. It is used for industrial
platforms, walkways, trench covers and stair treads
as a corrosion-resistant alternative to steel and
aluminum grating.
What is the difference between molded and pultruded FRP grating?
Molded grating has a square mesh pattern and offers
excellent bi-directional strength and impact
resistance. Pultruded grating has a rectangular mesh
pattern and offers higher stiffness and load capacity
for longer spans and heavier concentrated loads.
Do you provide free design drawings?
Yes. We provide free CAD design drawings and panel
layouts. Simply send us your span, load requirements,
chemical exposure and dimensions, and our engineering
team will deliver the drawings typically within 24–48
hours.
What is the maximum span for FRP grating?
Maximum span depends on grating type, thickness, load
and allowable deflection. Molded grating typically
spans up to 1200 mm for moderate loads; pultruded
grating can span up to 1500 mm or more for heavier
loads. Contact us for free load and deflection
calculations.
What resin systems are available?
Orthophthalic polyester for general industrial use;
isophthalic polyester for enhanced corrosion
resistance; vinyl ester for maximum chemical
resistance in aggressive environments.
What is the temperature range of FRP grating?
FRP grating typically operates from -80°C to +140°C
depending on the resin system. Confirm the specific
temperature limits for your selected resin.
Can FRP grating be cut on site?
Yes. FRP grating can be cut on site using standard
tools (angle grinder, skill saw) with appropriate
dust control. Edge sealing may be required depending
on the specification.
Is FRP grating slip resistant?
Yes. Gritted anti-slip surfaces maintain high
performance even after one million footfalls.
Concave (meniscus) surfaces provide superior slip
resistance in most environments.
Is FRP grating RoHS compliant?
RoHS compliance can be provided for applicable resin
systems and documentation requirements. Please
confirm when requesting a quotation.
What information do you need for a quotation?
Please provide the grating type (molded or pultruded),
mesh size, thickness, panel dimensions, quantity,
span, load requirements, chemical exposure and any
special requirements such as fire rating or slip
resistance.
Industrial FRP Grating
Get a FRP Grating Quote & Free Design Drawings
Tell us your grating type, mesh size, dimensions, span, load and chemical environment. Our engineering team will provide free design drawings, solution support and a suitable product recommendation with quotation.
Request a QuoteRelated Industrial Products
Complete Structural & Sealing Solutions
Explore related products for industrial and structural applications.
FRP Profiles
Pultruded fiberglass reinforced plastic structural profiles providing high strength-to-weight ratio and corrosion resistance for framework, supports, and custom fabrications.
View FRP Profiles →FRP Guardrail Systems
Durable, non-conductive fiberglass guardrail systems offering long-term safety and corrosion resistance in industrial, marine, and chemical facilities.
View FRP Guardrail Systems →FRP Profiles
Pultruded fiberglass reinforced plastic structural profiles providing high strength-to-weight ratio and corrosion resistance for framework, supports, and custom fabrications.
View FRP Profiles →FRP Ladders and Cages
Structural fiberglass ladders and safety cages engineered for corrosion-free access solutions in water treatment, chemical processing, and offshore installations.
View FRP Ladders and Cages →
