Engine & Transmission Gaskets
Gaskets for internal combustion engines, gearboxes, transmissions and oil pans requiring NBR oil resistance.
Industrial Beater Sheet / Paper
Beater Sheet / Paperfor Gaskets, Sealing & Fluid Resistance
Beater sheet, also known as beater paper or beater-add gasket paper, manufactured from cellulose or synthetic fibers treated in a beater and bonded with elastomeric binders. Provides excellent oil, fuel and water resistance, good compressibility and reliable sealing performance for low to medium pressure gasket applications.
Cellulose / Synthetic Fiber
Oil & Fuel Resistant
ISO 9001 & RoHS
OEM & Bulk Orders

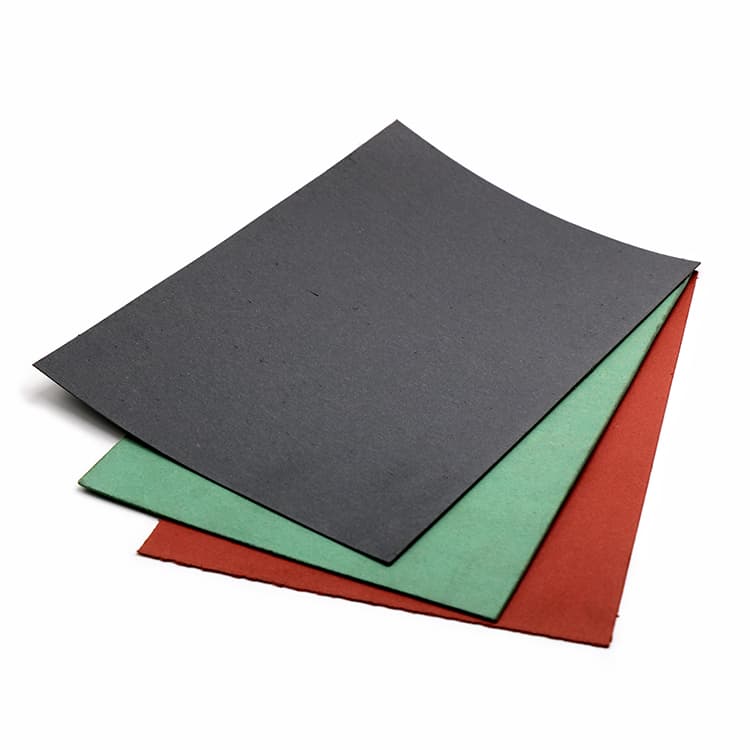

Beater Sheet / Paper
Fiber-Based Gasket Paper
OEM
Custom Supply
Our Beater Sheet / Paper
Beater Sheet / Paper Products
Explore beater sheet gasket paper for industrial sealing and gasket fabrication. Available in various grades for oil, fuel, water and general chemical resistance, with multiple thicknesses and sheet sizes.
-
Beater Sheet/Paper
High Pressure Asbestos-free Vulcanized Beater Paper
-
Beater Sheet/Paper
Non-asbestos Beater Sheet/Paper
-
Beater Sheet/Paper

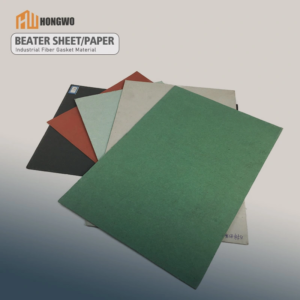

Asbestos Beater Sheet/Paper
Beater Sheet / Paper Supplier
Beater Sheet for Reliable Low & Medium Pressure Sealing
Beater sheet, also referred to as beater paper or beater-add gasket paper, is a fiber-based sealing material produced by beating cellulose or synthetic fibers into a slurry and forming into sheets with elastomeric binders such as nitrile rubber (NBR) or phenolic resin. It is designed for gasket fabrication in applications requiring oil, fuel and water resistance at low to medium pressures.
The sheet offers good compressibility, excellent conformability to flange surfaces, and reliable sealing in internal combustion engines, gearboxes, compressors, pumps and pipe flanges. Depending on the binder system and fiber type, beater sheet can be selected for specific media such as oils, fuels, water and mild chemicals.
We supply beater sheet / paper for overseas distributors, industrial buyers, gasket manufacturers, maintenance companies and OEM customers, with different grades, thicknesses, sheet sizes and custom cutting available according to specification.
Excellent Oil & Fuel Resistance
NBR-bonded grades provide reliable sealing against oils, fuels and hydrocarbons.
Good Compressibility & Conformability
Fiber structure conforms to flange irregularities, ensuring effective sealing.
Cost-Effective Sealing Solution
Beater sheet offers economical gasket material for low to medium pressure applications.
Easy Cutting & Fabrication
Can be easily cut, punched or die-cut to produce custom gaskets of various shapes.
Material Advantages
Why Choose Beater Sheet / Paper?
Beater sheet offers a cost-effective, easy-to-fabricate and reliable sealing solution for a wide range of low to medium pressure industrial applications.
01
Oil & Fuel Resistance
Nitrile rubber bonded grades provide excellent resistance to oils, fuels, greases and hydrocarbons, making them suitable for engine and transmission gaskets.
02
Good Compressibility
Beater sheet conforms well to rough or uneven flange surfaces, ensuring a tight seal without excessive bolt load.
03
Cost-Effective
Compared to other gasket materials, beater sheet offers an economical solution for low to medium pressure applications without compromising sealing performance.
04
Easy Fabrication
The sheet can be easily cut, punched, die-cut or waterjet cut into custom gasket shapes for various flange configurations.
05
Multiple Grades Available
Different binder systems (NBR, phenolic, etc.) and fiber types are available to meet specific media and temperature requirements.
06
B2B Industrial Supply
Suitable for industrial distributors, gasket fabricators, OEM customers, maintenance companies and bulk purchasing.
Technical Specifications
Beater Sheet / Paper Specifications
Technical properties depend on fiber type, binder system, sheet thickness and density. The values below are typical for general-purpose NBR-bonded beater sheet and should be confirmed for the selected grade before ordering.
| Product | Beater Sheet / Paper (Gasket Paper) |
|---|---|
| Material Composition | Cellulose or synthetic fibers with NBR, phenolic or other elastomeric binder; exact composition depends on grade |
| Color | Typically brown, gray, green or black depending on binder and fiber |
| Density | 0.8–1.2 g/cm³ typical depending on grade |
| Temperature Range | NBR-bonded grades: -40°C to +120°C continuous; short-term +150°C. Phenolic-bonded grades may reach +180°C. Actual limit depends on grade and media |
| Pressure Range | Up to 50 bar typical for NBR-bonded beater sheet depending on gasket dimensions and flange design. Confirm rated pressure for selected grade |
| Tensile Strength | ≥ 5 MPa (typical 8–15 MPa depending on grade and fiber orientation) |
| Compressibility | 15–30% at 35 MPa depending on grade |
| Recovery | ≥ 40% typical |
| Chemical Resistance | Good resistance to oils, fuels, greases, water and mild chemicals; NBR grades offer good oil resistance. Not suitable for strong acids, alkalis or solvents. Verify with actual medium |
| Sheet Thickness | 0.25 mm to 3.0 mm; common thicknesses: 0.4 mm, 0.5 mm, 0.8 mm, 1.0 mm, 1.5 mm, 2.0 mm. Custom thicknesses available |
| Sheet Size | Standard sizes: 1000×1000 mm, 1000×2000 mm, 1220×1220 mm, 1220×2440 mm; rolls available for thin gauges. Custom sizes and cut pieces available |
| Supply Form | Sheet, roll, cut-to-size pieces, or pre-cut gaskets subject to specification |
| Compliance | ISO 9001 quality management and RoHS compliance documentation available where applicable; confirm documentation requirements before ordering |
Sheet Dimensions
Beater Sheet / Paper Size Chart
Beater sheet gasket paper is available in standard sheet sizes and thicknesses. The following table lists commonly stocked dimensions. Custom sizes, thicknesses and cut pieces can be produced according to customer requirements.
| Thickness | Standard Sheet Size | Typical Application | Grade / Media |
|---|---|---|---|
| 0.25 mm | 1000×1000 mm / 1000×2000 mm | Thin gaskets, shims, oil and fuel service | NBR / Oil resistant |
| 0.4 mm | 1000×1000 mm / 1000×2000 mm | Engine gaskets, thin flange seals | NBR / Oil resistant |
| 0.5 mm | 1000×1000 mm / 1220×1220 mm | General flange gaskets, water, oil | NBR / General purpose |
| 0.8 mm | 1000×1000 mm / 1220×1220 mm | Standard gaskets, gearbox covers | NBR / General purpose |
| 1.0 mm | 1000×1000 mm / 1220×1220 mm | Pipe flange gaskets, water and oil service | NBR / General purpose |
| 1.5 mm | 1000×1000 mm / 1220×1220 mm | Thicker gaskets, irregular flanges | NBR / General purpose |
| 2.0 mm | 1000×1000 mm / 1220×1220 mm | Heavy-duty gaskets, large flanges | NBR / General purpose |
| 3.0 mm | 1000×1000 mm / 1220×1220 mm | Thick gaskets, pump housings, access covers | NBR / General purpose |
* Reference standard sheet sizes and thicknesses are shown for procurement guidance. Available sizes depend on the selected grade and manufacturing batch. Custom thicknesses from 0.25 mm to 3.0 mm and custom sheet dimensions are available subject to specification.
Industrial Applications
Beater Sheet / Paper Applications
Beater sheet gasket paper is used across a wide range of industries for flange sealing and gasket fabrication where oil, fuel and water resistance at low to medium pressure is required.
Pipe Flange Gaskets
Gaskets for water, oil and fuel piping systems in plumbing, HVAC and industrial installations.
Pumps & Compressors
Gaskets for pump housings, compressor covers and access panels requiring reliable low-pressure sealing.
General Industrial Sealing
Economical gasket material for gearboxes, valve covers and machinery where oil and water sealing is needed.
Automotive Aftermarket
Gasket paper for automotive repair, custom gaskets and maintenance of classic and modern vehicles.
Gasket Fabrication
Sheet stock for gasket manufacturers producing custom-cut gaskets for diverse industries.
Selection Guide
How to Choose Beater Sheet / Paper
The correct beater sheet grade and dimensions should be selected based on media, temperature, pressure, flange type and required compliance.
01
Media Compatibility
Identify the fluid or gas to be sealed (oil, fuel, water, mild chemicals) to select the appropriate binder system and grade.
02
Temperature & Pressure
Determine the operating temperature and pressure to choose a grade that can withstand the service conditions.
03
Thickness & Sheet Size
Specify the required sheet thickness and sheet dimensions. Thicker sheets are used for rough or uneven flange surfaces.
04
Compliance Requirements
Specify if RoHS, REACH, or other material certifications are required for your application.
Manufacturing
Controlled Production for Consistent Quality
Consistent fiber dispersion, binder content, sheet density and thickness tolerance are critical for reliable beater sheet gasket paper performance.
PROCESS / 01
Fiber Preparation
Cellulose or synthetic fibers are beaten and refined to achieve the desired fiber length and fibrillation for sheet formation.
PROCESS / 02
Sheet Forming
The fiber slurry is formed into sheets and bonded with elastomeric binders (NBR, phenolic) under controlled pressure.
PROCESS / 03
Curing & Inspection
Sheets are dried and cured to develop mechanical properties, then inspected for thickness, density, tensile strength and surface quality.
PROCESS / 04
Cutting & Packaging
Sheets are cut to standard or custom sizes, and packaged with protective interleaving for export and storage.
Why Choose hongwo
A B2B Supplier for Industrial Sealing Materials
We focus on supplying industrial sealing materials to overseas distributors, gasket manufacturers, maintenance companies and industrial buyers.
Industrial Product Focus
Focused on sealing materials and industrial
products for B2B applications.
ISO 9001 & RoHS
Quality management and RoHS compliance
documentation available where applicable.
OEM & Custom Supply
Support for customized grades, dimensions,
cut pieces and packaging.
Application-Based Support
Provide your media, temperature and pressure
so we can help identify a suitable grade.
Request a Quote
Tell Us Your Beater Sheet / Paper Requirements
The more technical information you provide, the more accurately we can recommend the appropriate grade and prepare a quotation.
You can also send a drawing, required specifications or application details after our sales team contacts you.
FAQ
Frequently Asked Questions About Beater Sheet / Paper
What is beater sheet / paper?
Beater sheet, also called beater paper or beater-add
gasket paper, is a fiber-based sealing material made
from beaten cellulose or synthetic fibers bonded with
elastomeric binders. It is used for manufacturing
gaskets for low to medium pressure sealing applications.
What is beater sheet used for?
Beater sheet is used for gaskets in engines, gearboxes,
pumps, compressors, pipe flanges and other equipment
requiring oil, fuel and water resistance at low to
medium pressures.
What is the temperature range of beater sheet?
NBR-bonded beater sheet typically operates from -40°C
to +120°C continuous, with short-term tolerance up to
+150°C. Phenolic-bonded grades may reach +180°C.
Actual limits depend on grade and media.
Is beater sheet oil and fuel resistant?
Yes. NBR-bonded grades provide excellent resistance to
oils, fuels, greases and hydrocarbons, making them
suitable for engine and transmission applications.
What sizes and thicknesses are available?
Standard sheet sizes include 1000×1000 mm, 1000×2000 mm,
1220×1220 mm and 1220×2440 mm. Thicknesses range from
0.25 mm to 3.0 mm, with 0.4 mm, 0.5 mm, 0.8 mm, 1.0 mm,
1.5 mm and 2.0 mm being common. Custom sizes and
cut pieces are available.
Can beater sheet be used for water sealing?
Yes. Beater sheet provides good resistance to water and
mild aqueous solutions. For higher temperature water or
steam, other materials like EPDM rubber sheet may be
more suitable.
Is beater sheet chemically resistant?
Beater sheet has good resistance to oils, fuels,
greases and water. It has limited resistance to strong
acids, alkalis and solvents. Chemical compatibility
should be verified with the actual medium before use.
Is beater sheet easy to cut and fabricate?
Yes. Beater sheet can be easily cut, punched, die-cut
or waterjet cut to produce custom gaskets of various
shapes and sizes.
Is beater sheet RoHS compliant?
RoHS compliance can be provided for applicable grades
and documentation requirements. Please confirm the
required RoHS documentation and grade when requesting
a quotation.
What information do you need for a quotation?
Please provide the required grade, thickness, sheet
dimensions, media, operating temperature and pressure,
required quantity and any compliance requirements.
Industrial Beater Sheet / Paper
Get a Beater Sheet / Paper Quote for Your Application
Tell us your grade, thickness, sheet size, media, temperature and pressure requirements. Our team will review your requirements and provide a suitable product recommendation and quotation.
