Industrial Graphite Gland Packing

Graphite Gland Packingfor Pumps, Valves & High-Temperature Industrial Service

Graphite gland packing for industrial pumps, valves, mixers and other demanding sealing applications. Braided from flexible graphite with high-temperature capability, excellent chemical resistance and self-lubricating properties for demanding industrial services.

Request a Quote View Products View Specifications
Flexible Graphite Construction
High-Temperature Service
ISO 9001 & RoHS
OEM & Bulk Orders

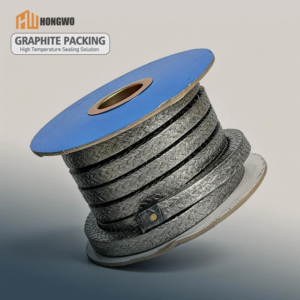

Graphite gland packing for industrial pumps and valves
Graphite Gland Packing High-Temperature Compression Packing
OEM Custom Supply
01
Factory Supply Direct industrial manufacturing
02
ISO 9001 Quality management system
03
RoHS Compliant Material compliance available
04
OEM / ODM Custom specifications available
Our Graphite Gland Packing

Graphite Gland Packing Products

Explore graphite gland packing for industrial pumps, valves, mixers and other applications requiring high-temperature resistance, chemical resistance and self-lubricating performance in demanding service conditions.

Braided graphite gland packing for industrial sealing
Graphite Gland Packing Supplier

Graphite Packing for High-Temperature Industrial Sealing

Graphite gland packing is a braided compression packing manufactured from flexible graphite. It is selected for industrial sealing applications where high-temperature capability, excellent chemical resistance and self-lubricating properties are critical requirements.

Flexible graphite provides outstanding thermal stability and chemical inertness, making graphite packing suitable for demanding high-temperature service, including steam, hot oils and many aggressive chemicals. Depending on the construction and reinforcement, graphite packing can be used in selected pumps, valves and other industrial equipment.

We supply graphite gland packing for overseas distributors, industrial buyers, maintenance companies and OEM customers, with different cross sections, constructions, reinforcement options and packaging forms available according to specification.

High-Temperature Capability Flexible graphite can withstand extreme temperatures, suitable for high-temperature sealing applications.
Excellent Chemical Resistance Graphite is highly inert and resists most chemicals, acids, alkalis and solvents.
Self-Lubricating Properties Graphite provides natural lubrication, reducing friction and wear on shafts and stems.
B2B Industrial Supply Suitable for distributors, maintenance companies, OEM customers and bulk purchasing.
Material Advantages

Why Choose Graphite Gland Packing?

Graphite packing combines high-temperature capability, excellent chemical resistance and self-lubricating properties for demanding industrial sealing applications.

01

High-Temperature Performance

Flexible graphite can withstand temperatures up to +450°C in oxidizing atmospheres and up to +650°C in steam or non-oxidizing environments.

02

Excellent Chemical Resistance

Graphite is highly inert and resists most chemicals, including acids, alkalis, solvents and hot oils, making it suitable for aggressive media.

03

Self-Lubricating

Graphite provides natural lubrication, reducing friction, heat generation and wear on shafts and stems during operation.

04

Low Thermal Expansion

Graphite exhibits low thermal expansion, supporting dimensional stability and consistent sealing performance under temperature changes.

05

Multiple Dimensions

Graphite gland packing can be supplied in different square cross sections, including metric sizes and customized dimensions subject to specification.

06

B2B Industrial Supply

Suitable for industrial distributors, OEM customers, maintenance companies and bulk purchasing programs.

Technical Specifications

Graphite Gland Packing Specifications

Technical performance depends on the graphite grade, braid construction, reinforcement, impregnation and actual operating conditions. The values below are reference information and should be confirmed for the selected packing construction before ordering.

Product Graphite Gland Packing
Material Flexible graphite; may include reinforcing fibers or wire depending on product specification
Construction Braided flexible graphite construction; reinforcement, impregnation and lubricant depend on product specification
Color Black / Dark gray
Cross Section 3–40 mm; custom dimensions available subject to specification
Application Pumps, valves, mixers and selected industrial equipment requiring high-temperature and chemically resistant sealing
Temperature Up to approximately +450°C in oxidizing atmospheres and up to +650°C in steam or non-oxidizing environments for suitable graphite packing constructions; actual allowable temperature depends on construction, reinforcement and service conditions
Pressure Construction-dependent; suitable designs are available for demanding industrial pressure service. Typical valve service up to approximately 20 MPa depending on construction. Confirm the rated pressure for the selected packing and application
Shaft Speed Application-dependent; allowable shaft speed depends on pressure, temperature, equipment design, lubrication and packing construction. Typical rotary applications can operate up to approximately 20 m/s depending on conditions
pH Range 0–14 for typical graphite packing constructions; graphite is highly resistant to both acids and alkalis. Verify chemical compatibility with the actual medium, concentration and temperature
Chemical Resistance Excellent resistance to most chemicals, including acids, alkalis, solvents, hot oils and steam. Graphite is highly inert. Compatibility should be verified for the actual fluid, concentration, temperature and complete packing construction
Thermal Expansion Low; graphite has a low coefficient of thermal expansion compared with many conventional fiber materials
Supply Form Coil, spool, cut length, pre-cut rings or customized packaging subject to specification
Compliance ISO 9001 quality management and RoHS compliance documentation available where applicable; confirm documentation requirements before ordering
Packing Dimensions

Graphite Gland Packing Size Chart

Graphite gland packing is supplied in different square cross sections for pumps, valves and industrial equipment. The following sizes are representative metric dimensions commonly used for gland packing. Custom metric and inch sizes can be discussed according to equipment and stuffing box requirements.

Packing Size Cross Section Typical Application Supply Form
3 × 3 mm 3 mm Small valves and light-duty industrial equipment Coil / Spool
4 × 4 mm 4 mm Small valve stems and general equipment Coil / Spool
5 × 5 mm 5 mm Small and medium valves / pumps Coil / Spool
6 × 6 mm 6 mm Pumps, valves and rotating equipment Coil / Spool
8 × 8 mm 8 mm Industrial pumps, valves and process equipment Coil / Spool
10 × 10 mm 10 mm Pumps, mixers and general process equipment Coil / Spool
12 × 12 mm 12 mm Industrial pumps and process equipment Coil / Spool
14 × 14 mm 14 mm Large pumps, valves and industrial machinery Coil / Spool
16 × 16 mm 16 mm Heavy-duty industrial equipment Coil / Spool
20 × 20 mm 20 mm Heavy-duty pumps and high-temperature service Coil / Spool

* Reference metric cross sections are shown for procurement guidance. Available sizes depend on the selected graphite packing construction. The product range covers approximately 3–40 mm, with custom metric and inch dimensions available subject to specification.

Industrial Applications

Graphite Gland Packing Applications

Graphite gland packing can be selected for demanding industrial sealing applications according to equipment, medium, temperature, pressure and operating conditions, particularly where high-temperature and chemical resistance are critical.

Industrial Pumps

Pump shaft sealing for high-temperature and chemically demanding industrial process applications.

Industrial Valves

Valve stem sealing for industrial valve systems where high-temperature capability and chemical resistance are important.

High-Temperature Service

Selected industrial sealing applications involving steam, hot oils and elevated operating temperatures.

Mixers & Agitators

Packing for selected rotating process equipment, mixers and agitators requiring chemically resistant and self-lubricating construction.

Chemical Process Equipment

Selected process equipment applications where resistance to aggressive chemicals, acids and alkalis is required.

Industrial Maintenance

Replacement packing for maintenance, repair and servicing of industrial pumps, valves and equipment in demanding high-temperature service conditions.

Selection Guide

How to Choose Graphite Gland Packing

The correct graphite packing should be selected according to equipment, sealing medium, temperature, pressure, shaft speed and actual operating conditions, with particular attention to high-temperature and chemical resistance requirements.

01

Equipment Type

Tell us whether the packing is required for a pump, valve, mixer or other industrial equipment.

02

Sealing Medium

Provide the fluid, chemical composition, concentration and whether high temperatures or aggressive media are involved so compatibility can be evaluated.

03

Operating Conditions

Temperature, pressure, shaft speed and operating frequency affect the selection of graphite gland packing.

04

Packing Dimensions

Provide the packing cross section or stuffing box dimensions for accurate product matching.

Manufacturing

Controlled Production for Consistent Quality

Consistent graphite material, braid density, dimensions, reinforcement and impregnation are important for reliable graphite compression packing.

PROCESS / 01

Graphite Preparation

Flexible graphite materials are prepared according to the required packing construction and product specification.

PROCESS / 02

Braiding

Controlled braiding forms the required cross section and structural characteristics of the graphite packing.

PROCESS / 03

Impregnation & Inspection

Depending on the product construction, reinforcement, impregnation or lubricant may be applied before the finished packing is checked for dimensions and appearance.

PROCESS / 04

Packing & Shipment

Products can be supplied in coils, spools, cut lengths, pre-formed rings or customized export packaging.

Graphite gland packing manufacturing and supply
Why Choose hongwo

A B2B Supplier for Industrial Sealing Materials

We focus on supplying industrial sealing materials to overseas distributors, equipment manufacturers, maintenance companies and industrial buyers.

01
Industrial Product Focus Focused on sealing materials and industrial products for B2B applications.
02
ISO 9001 & RoHS Quality management and RoHS compliance documentation available where applicable.
03
OEM & Custom Supply Support for customized specifications, dimensions and packaging.
04
Application-Based Support Provide your equipment, medium and operating conditions so we can help identify a suitable graphite packing specification.

Need Graphite Gland Packing for Your Equipment?

Send your packing size, equipment type, sealing medium, temperature, pressure and shaft speed where applicable. Get a suitable product recommendation and quotation.

Request a Quote

Tell Us Your Graphite Packing Requirements

The more technical information you provide, the more accurately we can recommend the appropriate graphite gland packing and prepare a quotation.

You can also send a product drawing, existing packing specification or equipment information after our sales team contacts you.

    FAQ

    Frequently Asked Questions About Graphite Gland Packing

    What is graphite gland packing?
    Graphite gland packing is a braided compression packing made from flexible graphite. It is used for selected industrial pumps, valves, mixers and other equipment where high-temperature capability and excellent chemical resistance are critical requirements.
    What is graphite packing used for?
    Graphite packing is used for selected industrial sealing applications requiring high-temperature resistance, chemical resistance and self-lubricating performance, particularly in services involving steam, hot oils and aggressive media.
    Can graphite packing be used for pumps and valves?
    Yes. Graphite gland packing can be used for suitable pump shaft and valve stem sealing applications. The correct construction should be selected according to equipment, medium, temperature, pressure and shaft speed.
    What is the temperature range of graphite gland packing?
    Suitable graphite packing constructions can be used at temperatures up to approximately +450°C in oxidizing atmospheres and up to +650°C in steam or non-oxidizing environments. The actual allowable temperature depends on the graphite construction, reinforcement and service conditions.
    Is graphite packing self-lubricating?
    Yes. Graphite provides natural lubrication, which reduces friction, heat generation and wear on shafts and stems during operation, helping to extend packing and equipment life.
    Is graphite packing chemically resistant?
    Graphite is highly inert and resists most chemicals, including acids, alkalis, solvents and hot oils. However, the chemical resistance of a complete gland packing also depends on any reinforcement, impregnation and actual operating conditions. Compatibility should be verified before selection.
    Does graphite packing have low thermal expansion?
    Yes. Graphite has a low coefficient of thermal expansion, which can provide good dimensional stability when the packing is exposed to temperature changes.
    What sizes of graphite gland packing are available?
    Graphite gland packing is available in different square cross sections. The referenced product range covers approximately 3 mm to 40 mm, with custom metric and inch dimensions available subject to specification.
    Is graphite packing RoHS compliant?
    RoHS compliance can be provided for applicable product constructions and documentation requirements. Please confirm the required RoHS documentation and product specification when requesting a quotation.
    What information do you need for a quotation?
    Please provide the packing size, equipment type, sealing medium, operating temperature, pressure, shaft speed where applicable, required quantity and packaging requirements.
    Industrial Graphite Gland Packing

    Get a Graphite Gland Packing Quote for Your Application

    Tell us your equipment, packing size, sealing medium and operating conditions. Our team will review your requirements and provide a suitable product recommendation and quotation.

    Request a Quote
