Industrial Quartz Tube

Quartz Tubefor High-Temperature, Optical & Semiconductor Applications

High-purity fused quartz tubes manufactured from transparent or opaque silica. Offering excellent high-temperature resistance, low thermal expansion, high optical transmission and chemical purity for heating elements, furnaces, semiconductor processing, laboratory and lighting applications. Available in custom diameters, wall thicknesses and lengths.

Request a Quote View Products View Specifications
High-Purity Fused Silica
High-Temperature Resistant
ISO 9001 & RoHS
OEM & Bulk Orders

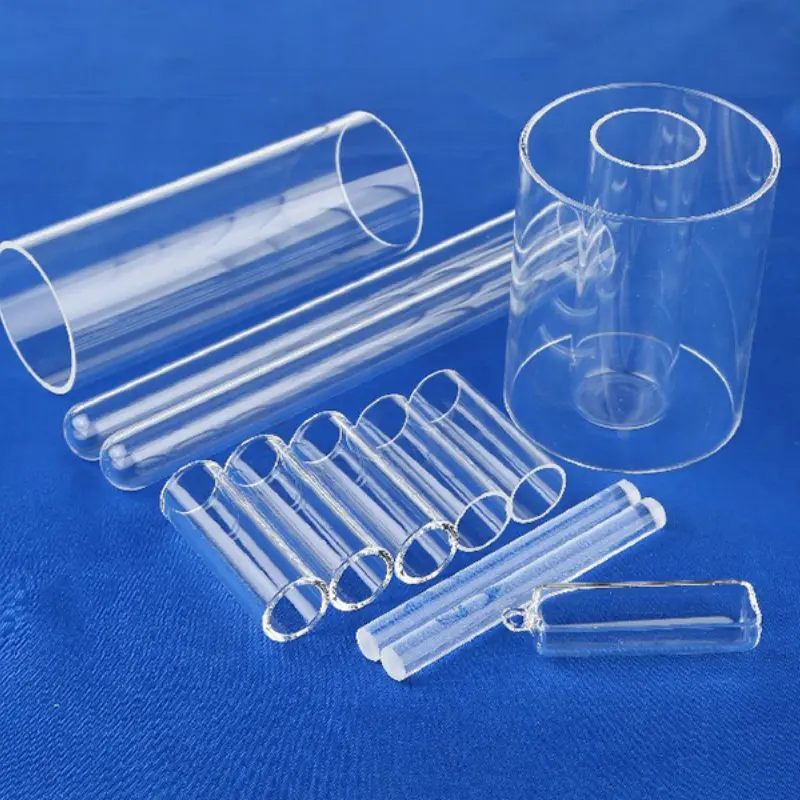

Quartz tube for industrial high-temperature applications
Quartz Tube High-Purity Fused Silica Tubing
OEM Custom Supply
01
Factory Supply Direct industrial manufacturing
02
ISO 9001 Quality management system
03
RoHS Compliant Material compliance available
04
OEM / ODM Custom specifications available
Our Quartz Tubes

Quartz Tube Products

Explore high-purity quartz tubes for high-temperature, optical and semiconductor applications. Available in transparent or opaque grades, with various outer diameters, wall thicknesses and lengths, suitable for heating elements, furnaces, reactors and lighting.

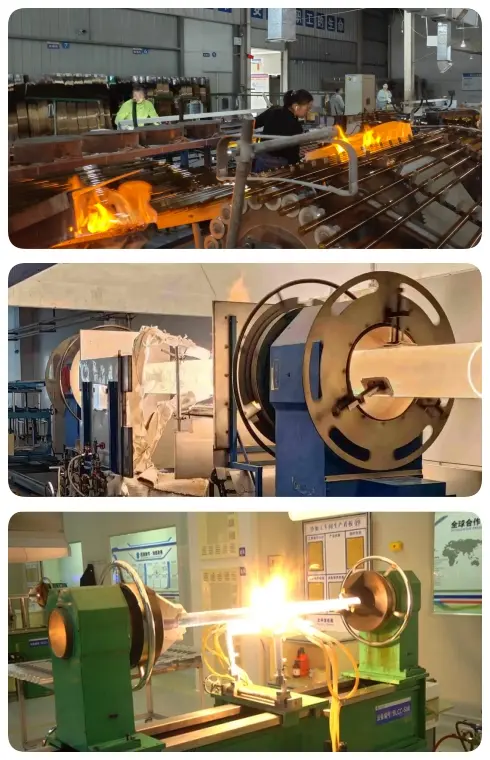

Quartz tube for industrial heating and semiconductor processing
Quartz Tube Supplier

Quartz Tubes for High-Temperature & Optical Service

Quartz tubes are hollow cylindrical components made from high-purity fused silica (SiO₂). They are characterized by excellent thermal shock resistance, low coefficient of thermal expansion, high chemical purity, and outstanding optical transmission from ultraviolet to infrared wavelengths.

These tubes are widely used as heating element enclosures, furnace tubes, reactor chambers, sight glasses, and protective sheaths in semiconductor manufacturing, laboratories, lighting and various high-temperature industrial processes. The combination of high purity and thermal stability makes quartz tubes ideal for applications where contamination must be minimized.

We supply quartz tubes for overseas distributors, industrial buyers, equipment manufacturers, research institutions and OEM customers, with different grades, diameters, wall thicknesses, lengths and custom fabrication available according to specification.

High-Temperature Resistance Continuous use up to 1100°C, short-term up to 1200°C depending on grade.
Low Thermal Expansion Coefficient of thermal expansion ~5.5×10⁻⁷/°C, providing excellent thermal shock resistance.
High Optical Transmission Transparent from UV (185 nm) to IR (2500 nm) depending on grade.
High Chemical Purity SiO₂ content ≥ 99.99% for high-purity grades, suitable for semiconductor and lab use.
Material Advantages

Why Choose Quartz Tubes?

Quartz tubes combine high-temperature capability, low thermal expansion, optical clarity and chemical purity for demanding industrial and scientific applications.

01

High-Temperature Performance

Quartz tubes can withstand continuous temperatures up to 1100°C, with short-term tolerance up to 1200°C, making them ideal for furnaces and heating elements.

02

Excellent Thermal Shock Resistance

The very low coefficient of thermal expansion (~5.5×10⁻⁷/°C) allows rapid temperature changes without cracking.

03

High Optical Transmission

Transparent quartz tubes offer transmission from ultraviolet (185 nm) through visible to infrared (2500 nm), suitable for optical and lighting uses.

04

Chemical Purity & Inertness

High-purity fused silica (≥99.99% SiO₂) resists contamination and is inert to most chemicals, essential for semiconductor and lab applications.

05

Excellent Electrical Insulation

Quartz has high dielectric strength and resistivity, making it suitable for electrical insulation at high temperatures.

06

B2B Industrial Supply

Suitable for industrial distributors, equipment manufacturers, research institutions and bulk purchasing programs.

Technical Specifications

Quartz Tube Specifications

Technical properties depend on quartz grade (transparent, opaque, hydroxyl content), manufacturing method and dimensions. The values below are typical for high-purity transparent fused silica quartz tube and should be confirmed for the selected grade before ordering.

Product Quartz Tube (Fused Silica)
Material High-purity fused silica (SiO₂), transparent or opaque grades; hydroxyl content varies depending on manufacturing process
Color Transparent: clear / colorless; Opaque: white / milky
Density Approximately 2.2 g/cm³
Softening Point Approximately 1680°C (typical for fused silica)
Maximum Continuous Use Temperature 1100°C for transparent; 1000°C for opaque depending on conditions; short-term up to 1200°C
Coefficient of Thermal Expansion ~5.5×10⁻⁷ /°C (20–300°C)
Thermal Conductivity ~1.4 W/(m·K) at 20°C
SiO₂ Content ≥ 99.99% for high-purity grades; ≥ 99.9% for standard grades
Optical Transmission Transparent grades: ~90% transmission from 185 nm to 2500 nm (depending on grade and hydroxyl content)
Electrical Resistivity > 10¹⁸ Ω·cm at 20°C
Tube Outer Diameter 2 mm to 500 mm typical; custom sizes available
Wall Thickness 0.5 mm to 10 mm typical; custom thicknesses available
Length Up to 3000 mm standard; custom lengths available subject to specification
Supply Form Straight tubes, cut lengths, closed-end tubes, custom shapes or machined components; packaging available
Compliance ISO 9001 quality management and RoHS compliance documentation available where applicable; confirm documentation requirements before ordering
Tube Dimensions

Quartz Tube Size Chart

Quartz tubes are available in a wide range of outer diameters, wall thicknesses and lengths. The following table lists common dimensions for transparent and opaque tubes. Custom dimensions can be produced according to requirements.

Outer Diameter Wall Thickness Typical Application Grade
2–10 mm 0.5–1.5 mm Lab tubing, small heating elements Transparent / Opaque
10–20 mm 1.0–2.5 mm Furnace tubes, sight glasses, UV lamps Transparent
20–50 mm 1.5–4.0 mm Semiconductor processing, quartz heaters Transparent
50–100 mm 2.0–5.0 mm Reactor chambers, large furnace tubes Transparent
100–200 mm 3.0–8.0 mm Industrial heating, diffusion tubes Transparent / Opaque
200–500 mm 5.0–10.0 mm Large process chambers, specialty equipment Opaque / Transparent

* Reference dimensions are shown for procurement guidance. Available sizes depend on grade and manufacturing method. Custom outer diameters, wall thicknesses and lengths are available subject to specification.

Industrial Applications

Quartz Tube Applications

Quartz tubes are used across a wide range of industries where high-temperature stability, optical clarity and chemical purity are essential.

Heating Elements

Protective sheaths and enclosures for electric heating elements, infrared heaters and furnaces.

Semiconductor Processing

Diffusion tubes, reaction chambers and wafer handling components in semiconductor manufacturing.

Laboratory & Research

Quartz tubing for chemical reactors, combustion tubes, analytical instruments and high-temperature experiments.

Lighting & Optics

UV lamps, halogen lamp envelopes, laser components and optical waveguides.

Chemical Processing

Corrosion-resistant tubing for chemical reactors, heat exchangers and fluid handling.

General Industrial Heating

Furnace tubes, thermocouple protection tubes and high-temperature process equipment.

Selection Guide

How to Choose Quartz Tubes

The correct quartz tube grade and dimensions should be selected based on operating temperature, optical requirements, chemical environment and mechanical constraints.

01

Grade Selection

Choose transparent quartz for optical clarity and high-temperature transparency. Choose opaque quartz for thermal insulation and cost-effective heating applications.

02

Dimensions

Specify outer diameter, wall thickness and length. Consider thermal expansion and mechanical load when selecting dimensions.

03

Operating Conditions

Confirm maximum temperature, thermal cycling, chemical exposure and any optical or electrical requirements.

04

Custom Fabrication

We can provide closed-end tubes, flanged ends, ground joints and other custom configurations.

Manufacturing

Controlled Production for Consistent Quality

Consistent material purity, dimensional accuracy and surface quality are critical for reliable quartz tube performance.

PROCESS / 01

Raw Material Preparation

High-purity silica sand or synthetic quartz is selected to achieve the required purity and hydroxyl content.

PROCESS / 02

Tube Drawing / Molding

Fused silica is melted and drawn or molded into tube form with precise outer diameter and wall thickness control.

PROCESS / 03

Inspection & Testing

Tubes are inspected for dimensional accuracy, visual defects, optical transmission and purity.

PROCESS / 04

Cutting & Packaging

Tubes are cut to specified lengths, cleaned, and packaged with protective materials for safe transport.

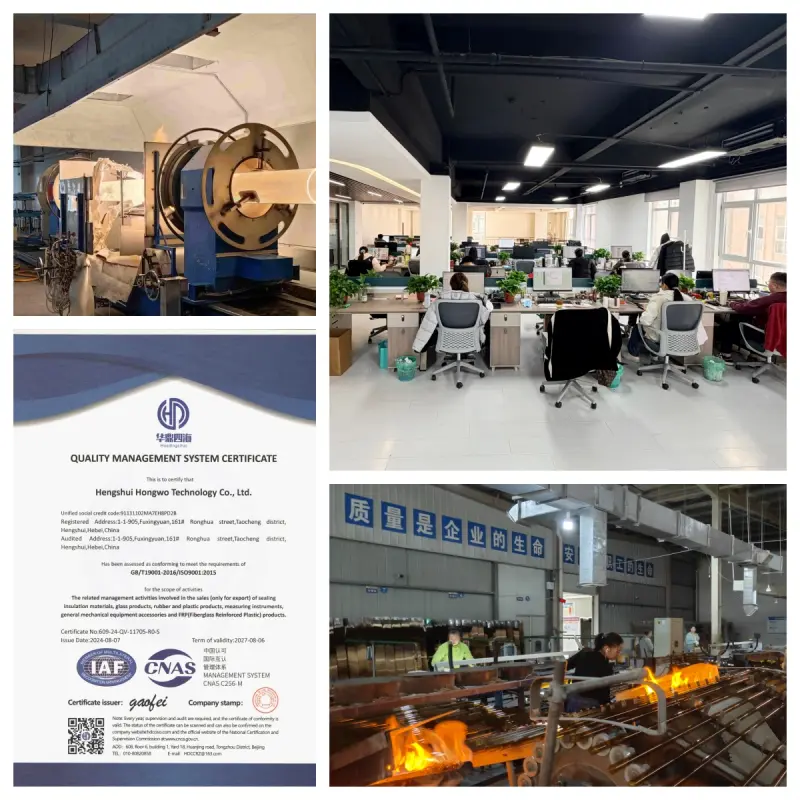

Quartz tube manufacturing and supply
Why Choose hongwo

A B2B Supplier for High-Purity Quartz Products

We focus on supplying high-purity quartz products to overseas distributors, equipment manufacturers, research institutions and industrial buyers.

01
Industrial Product Focus Focused on quartz products and industrial materials for B2B applications.
02
ISO 9001 & RoHS Quality management and RoHS compliance documentation available where applicable.
03
OEM & Custom Supply Support for customized dimensions, grades and packaging.
04
Application-Based Support Provide your operating conditions and requirements so we can help identify a suitable quartz tube grade.

Need Quartz Tubes for Your Application?

Send your required grade, dimensions (OD, wall thickness, length), operating temperature and application. Get a suitable product recommendation and quotation.

Request a Quote

Tell Us Your Quartz Tube Requirements

The more technical information you provide, the more accurately we can recommend the appropriate quartz tube grade and prepare a quotation.

You can also send a drawing, required specifications or application details after our sales team contacts you.

    FAQ

    Frequently Asked Questions About Quartz Tubes

    What is a quartz tube?
    A quartz tube is a hollow cylindrical component made from high-purity fused silica (SiO₂). It combines high temperature resistance, low thermal expansion, optical clarity and chemical inertness.
    What is the temperature range of quartz tubes?
    Quartz tubes can withstand continuous temperatures up to 1100°C (transparent) or 1000°C (opaque), with short-term tolerance up to 1200°C. The softening point is about 1680°C.
    What is the difference between transparent and opaque quartz tubes?
    Transparent quartz tubes offer high optical transmission from UV to IR and are used where visibility or light transmission is needed. Opaque quartz tubes have a milky white appearance, better thermal insulation and are often more economical for heating applications.
    What is the purity of quartz tubes?
    High-purity quartz tubes typically have SiO₂ content ≥ 99.99%. Standard grades have ≥ 99.9%. The purity level affects contamination and optical properties.
    Can quartz tubes be made to custom dimensions?
    Yes. Quartz tubes can be produced with custom outer diameters, wall thicknesses and lengths. Closed-end tubes and other custom shapes are also available.
    What are typical applications of quartz tubes?
    Common applications include heating element enclosures, furnace tubes, semiconductor diffusion tubes, UV lamps, laboratory reactors, sight glasses and thermocouple protection sheaths.
    Is quartz tube chemically resistant?
    Quartz is inert to most chemicals except hydrofluoric acid and strong alkalis at high temperatures. It is widely used in corrosive chemical environments.
    Is quartz tube RoHS compliant?
    RoHS compliance can be provided for applicable grades and documentation requirements. Please confirm when requesting a quotation.
    What information do you need for a quotation?
    Please provide the required grade (transparent/opaque), outer diameter, wall thickness, length, quantity, operating temperature and any special requirements.
    Industrial Quartz Tube

    Get a Quartz Tube Quote for Your Application

    Tell us your grade, dimensions, operating conditions and application. Our team will review your requirements and provide a suitable product recommendation and quotation.
