Pre-Formed Industrial Gland Packing Rings

Gland Packing Ringsfor Pumps, Valves & Precision Sealing Applications

Pre-formed gland packing rings manufactured from PTFE, graphite, aramid, carbon fiber, phenolic and other compression packing materials. Precision-cut or molded to exact dimensions for consistent sealing performance, easy installation and reduced maintenance time in industrial pumps and valves.

Request a Quote View Products View Specifications
Multiple Material Options
Custom Dimensions Available
ISO 9001 & RoHS
OEM & Bulk Orders

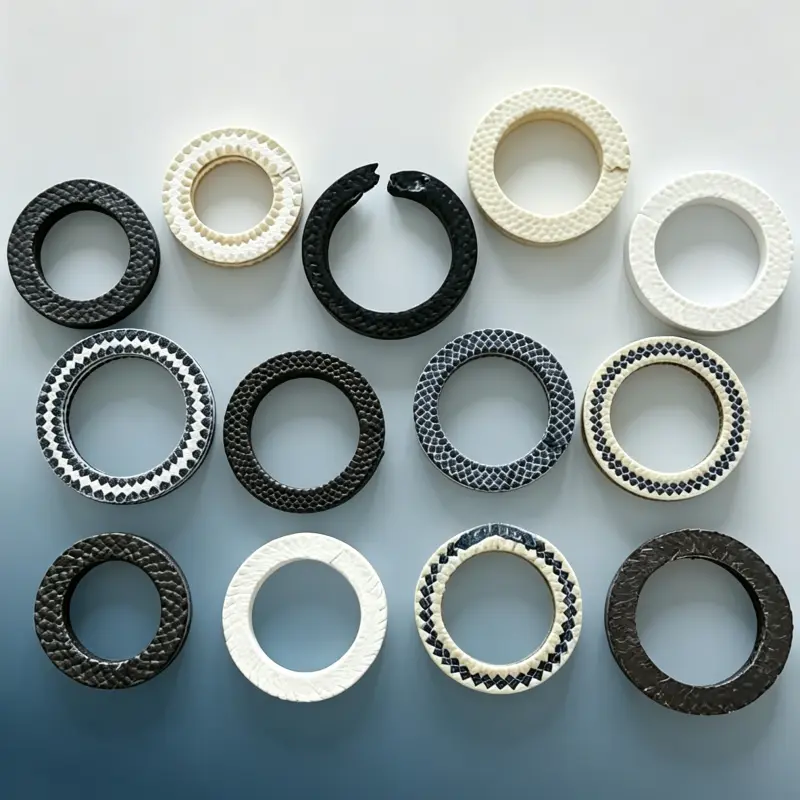

Pre-formed gland packing rings for industrial pumps and valves
Gland Packing Rings Pre-Formed Compression Packing
OEM Custom Supply
01
Factory Supply Direct industrial manufacturing
02
ISO 9001 Quality management system
03
RoHS Compliant Material compliance available
04
OEM / ODM Custom specifications available
Our Gland Packing Rings

Pre-Formed Gland Packing Ring Products

Explore pre-formed gland packing rings manufactured from various compression packing materials, including PTFE, graphite, aramid, carbon fiber and phenolic. Custom dimensions and material combinations are available to meet specific pump and valve sealing requirements.

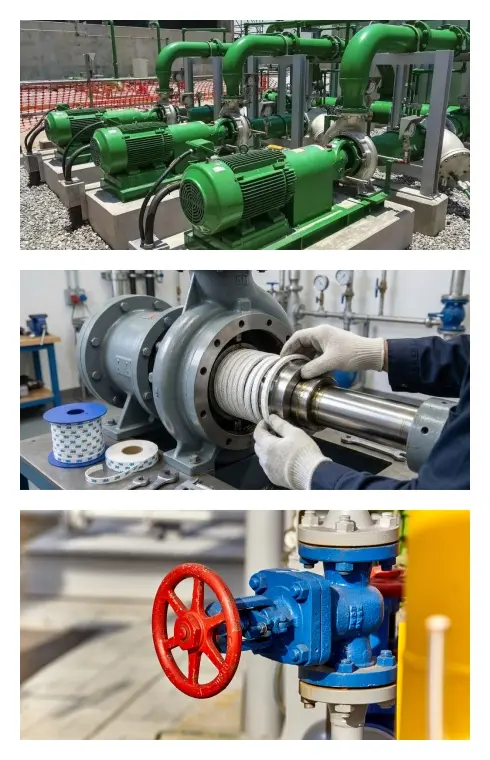

Pre-formed gland packing rings for industrial sealing
Gland Packing Ring Supplier

Precision-Cut and Molded Packing Rings for Industrial Sealing

Gland packing rings are pre-formed compression packing components manufactured by cutting or molding braided compression packing into precise circular rings. They are designed for direct installation into pump and valve stuffing boxes, eliminating the need for on-site cutting and ensuring uniform density and consistent sealing performance.

Rings can be produced from a wide range of packing materials, including PTFE, flexible graphite, aramid (Kevlar), carbon fiber, phenolic and various lubricated or impregnated constructions. The material selection determines the temperature, pressure, chemical resistance and friction characteristics, allowing the rings to be tailored to specific operating conditions.

We supply gland packing rings for overseas distributors, industrial buyers, maintenance companies and OEM customers, with custom inner diameters, outer diameters, cross sections, materials and packaging forms available according to specification.

Multiple Material Options Rings available in PTFE, graphite, aramid, carbon fiber, phenolic and other packing materials.
Custom Dimensions Inner diameter, outer diameter and cross section can be customized to exact stuffing box requirements.
Consistent Sealing Performance Pre-formed rings provide uniform density and geometry for reliable, repeatable sealing.
B2B Industrial Supply Suitable for distributors, maintenance companies, OEM customers and bulk purchasing.
Product Advantages

Why Choose Pre-Formed Gland Packing Rings?

Pre-formed gland packing rings offer installation efficiency, consistent sealing performance and the ability to match exact equipment dimensions across a wide range of materials.

01

Easy Installation

Pre-cut or molded rings are ready to install directly into stuffing boxes, reducing installation time and avoiding cutting errors during maintenance.

02

Consistent Density

Each ring is manufactured to uniform dimensions and density, ensuring consistent compression and sealing performance across the entire packing set.

03

Multiple Materials

Rings can be produced from PTFE, graphite, aramid, carbon fiber, phenolic and other materials, each offering specific temperature, chemical and friction advantages.

04

Custom Dimensions

Inner diameter, outer diameter and cross section can be customized to match existing stuffing boxes or new equipment designs.

05

Reduced Maintenance Time

Pre-formed rings simplify replacement procedures, minimizing downtime and labor costs for maintenance teams.

06

B2B Industrial Supply

Suitable for industrial distributors, OEM customers, maintenance companies and bulk purchasing programs.

Technical Specifications

Gland Packing Ring Specifications

Technical performance depends on the selected packing material, construction, dimensions and actual operating conditions. The values below are general reference information and should be confirmed for the specific ring material and application before ordering.

Product Pre-Formed Gland Packing Rings
Available Materials PTFE, flexible graphite, aramid (Kevlar), carbon fiber, phenolic, acrylic, fiberglass and other compression packing materials; material selection depends on application requirements
Construction Cut from braided compression packing or molded from packing material; lubrication, impregnation and reinforcement depend on selected material and specification
Cross Section 3–40 mm; custom cross sections available subject to specification
Inner Diameter Custom manufactured to match shaft, stem or rod diameter; typical range from 5 mm to 500 mm or larger depending on equipment
Outer Diameter Custom manufactured to match stuffing box bore diameter; derived from inner diameter plus two times cross section
Application Pumps, valves, mixers, agitators and other industrial equipment requiring pre-formed compression packing for efficient installation
Temperature Range Material-dependent; typical ranges: PTFE: -200°C to +260°C; Graphite: -200°C to +450°C (oxidizing) / +650°C (steam); Aramid: -100°C to +250°C; Carbon Fiber: -200°C to +300°C; Phenolic: -50°C to +130°C. Actual limits depend on complete construction and service conditions
Pressure Range Material- and construction-dependent; typical designs rated for pump service up to 2–5 MPa and valve service up to 5–20 MPa depending on material and dimensions. Confirm rated pressure for selected material and application
Shaft Speed Material- and application-dependent; typical rotary speeds up to 10–20 m/s depending on material, pressure, temperature and lubrication
pH Range Material-dependent; PTFE: 0–14; Graphite: 0–14; Aramid: 2–12; Carbon Fiber: 1–14 depending on resin; Phenolic: 4–10. Verify compatibility with actual medium
Chemical Resistance Varies by material; PTFE and graphite offer the broadest chemical resistance. Compatibility must be verified for the selected material, fluid, concentration and temperature
Supply Form Pre-formed rings in sets, individually packaged, or bulk packaging; custom packaging available subject to specification
Compliance ISO 9001 quality management and RoHS compliance documentation available where applicable; confirm documentation requirements before ordering
Ring Dimensions

Gland Packing Ring Size Chart

Gland packing rings are manufactured to custom inner diameters, outer diameters and cross sections. The following table lists common cross section sizes with typical applications. Inner and outer diameters are produced according to equipment stuffing box dimensions.

Cross Section Typical Inner Diameter Range Typical Application Available Materials
3 × 3 mm 5–50 mm Small valve stems and light-duty equipment PTFE, Graphite, Aramid, Carbon, Phenolic
4 × 4 mm 6–80 mm Small valve stems and general equipment PTFE, Graphite, Aramid, Carbon, Phenolic
5 × 5 mm 8–100 mm Small and medium valves / pumps PTFE, Graphite, Aramid, Carbon, Phenolic
6 × 6 mm 10–150 mm Pumps, valves and rotating equipment PTFE, Graphite, Aramid, Carbon, Phenolic
8 × 8 mm 12–200 mm Industrial pumps, valves and process equipment PTFE, Graphite, Aramid, Carbon, Phenolic
10 × 10 mm 15–300 mm Pumps, mixers and general process equipment PTFE, Graphite, Aramid, Carbon, Phenolic
12 × 12 mm 20–400 mm Industrial pumps and process equipment PTFE, Graphite, Aramid, Carbon, Phenolic
14 × 14 mm 25–500 mm Large pumps, valves and industrial machinery PTFE, Graphite, Aramid, Carbon, Phenolic
16 × 16 mm 30–600 mm Heavy-duty industrial equipment PTFE, Graphite, Aramid, Carbon, Phenolic
20 × 20 mm 40–800 mm Heavy-duty pumps and large valves PTFE, Graphite, Aramid, Carbon, Phenolic

* Reference cross sections and typical inner diameter ranges are shown for procurement guidance. All dimensions are customizable. The product range covers cross sections from approximately 3 mm to 40 mm, with inner diameters up to 1000 mm or larger depending on material and equipment. Custom metric and inch dimensions are available subject to specification.

Industrial Applications

Gland Packing Ring Applications

Pre-formed gland packing rings are used across a wide range of industrial sealing applications, offering efficient installation and reliable performance in pumps, valves and rotating equipment.

Industrial Pumps

Pump shaft sealing with pre-formed rings for simplified maintenance and consistent compression.

Industrial Valves

Valve stem sealing with precision-cut rings for reliable performance and easy replacement.

High-Temperature Service

Graphite and carbon fiber rings for steam, hot oil and elevated temperature sealing applications.

Mixers & Agitators

Pre-formed rings for rotating process equipment, mixers and agitators requiring quick installation.

Chemical Process Equipment

PTFE and graphite rings for aggressive chemical environments and broad chemical resistance.

Industrial Maintenance

Replacement ring sets for maintenance, repair and servicing of pumps, valves and rotating equipment.

Selection Guide

How to Choose Gland Packing Rings

The correct gland packing ring should be selected based on material compatibility, exact dimensions, and operating conditions. Providing accurate stuffing box details ensures optimal sealing performance.

01

Material Selection

Choose the packing material based on chemical compatibility, temperature, pressure and friction requirements. PTFE and graphite offer the broadest chemical resistance.

02

Ring Dimensions

Provide accurate inner diameter, outer diameter (or stuffing box bore) and cross section. For existing equipment, measure the shaft diameter and stuffing box bore.

03

Operating Conditions

Temperature, pressure, shaft speed and sealing medium affect material selection and ring design.

04

Quantity & Packaging

Specify the number of rings per set or total quantity, and any preferred packaging requirements.

Manufacturing

Controlled Production for Precise Ring Dimensions

Precise cutting, consistent material density and accurate dimensional control are essential for reliable pre-formed gland packing rings.

PROCESS / 01

Material Selection

The appropriate braided compression packing material is selected based on the required temperature, pressure and chemical resistance.

PROCESS / 02

Cutting or Molding

Rings are precision cut from braided packing or molded to achieve the exact inner diameter, outer diameter and cross section required.

PROCESS / 03

Dimensional Inspection

Each ring is checked for dimensional accuracy, density consistency and surface quality before packaging.

PROCESS / 04

Packing & Shipment

Rings are packaged in sets or bulk, with customized labeling and export packaging available according to requirement.

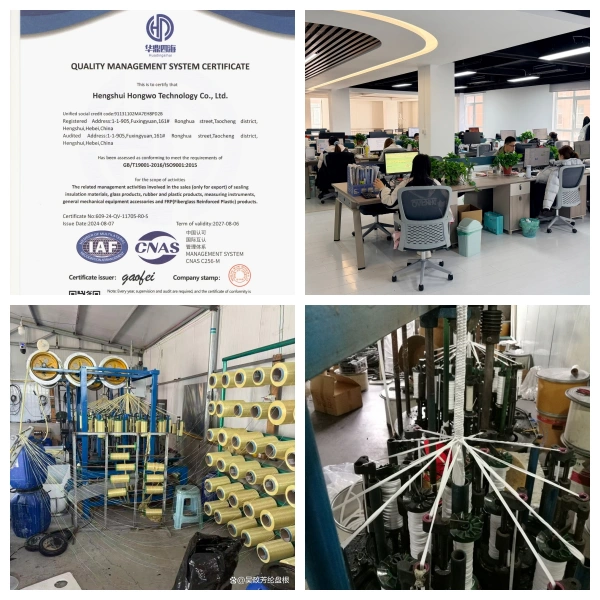

Gland packing ring manufacturing and supply
Why Choose hongwo

A B2B Supplier for Industrial Sealing Materials

We focus on supplying industrial sealing materials to overseas distributors, equipment manufacturers, maintenance companies and industrial buyers.

01
Industrial Product Focus Focused on sealing materials and industrial products for B2B applications.
02
ISO 9001 & RoHS Quality management and RoHS compliance documentation available where applicable.
03
OEM & Custom Supply Support for customized materials, dimensions and packaging.
04
Application-Based Support Provide your equipment, medium and operating conditions so we can help identify suitable ring materials and dimensions.

Need Pre-Formed Gland Packing Rings for Your Equipment?

Send your ring dimensions (inner diameter, outer diameter, cross section), material preference, operating conditions and quantity. Get a suitable product recommendation and quotation.

Request a Quote

Tell Us Your Gland Packing Ring Requirements

The more technical information you provide, the more accurately we can recommend the appropriate ring material and prepare a quotation.

You can also send a drawing, existing ring sample or stuffing box dimensions after our sales team contacts you.

    FAQ

    Frequently Asked Questions About Gland Packing Rings

    What are gland packing rings?
    Gland packing rings are pre-formed circular packing components cut or molded from braided compression packing. They are designed for direct installation into pump and valve stuffing boxes, providing consistent sealing performance without on-site cutting.
    What materials are available for gland packing rings?
    Rings can be manufactured from PTFE, flexible graphite, aramid (Kevlar), carbon fiber, phenolic and other compression packing materials. The material choice depends on temperature, pressure, chemical compatibility and friction requirements.
    Can you make custom-sized packing rings?
    Yes. Inner diameter, outer diameter and cross section can be customized to match your equipment's stuffing box dimensions. Provide shaft diameter and stuffing box bore for accurate manufacturing.
    What is the temperature range of gland packing rings?
    The temperature range depends on the selected material. For example, PTFE rings typically operate from -200°C to +260°C, graphite rings up to +450°C in oxidizing atmospheres and +650°C in steam, aramid rings from -100°C to +250°C, and carbon fiber rings from -200°C to +300°C. Actual limits depend on construction.
    What are the advantages of pre-formed rings over bulk packing?
    Pre-formed rings offer easier and faster installation, consistent density and dimensions, and reduced risk of cutting errors. They also provide more uniform sealing performance across the packing set.
    How do I determine the correct ring dimensions?
    Measure the shaft or stem diameter (inner diameter of ring) and the stuffing box bore (outer diameter of ring). The cross section is typically the difference between outer and inner diameter divided by two. Provide these dimensions for accurate manufacturing.
    Is there a minimum order quantity for custom rings?
    Minimum order quantities vary depending on material, dimensions and specifications. Contact our sales team with your requirements for specific MOQ information.
    Can rings be supplied in sets or bulk?
    Yes. Rings can be packaged as individual sets for specific equipment or in bulk quantities for distributors and maintenance programs. Custom packaging is available.
    Are the packing rings RoHS compliant?
    RoHS compliance can be provided for applicable materials and documentation requirements. Please confirm the required RoHS documentation and material when requesting a quotation.
    What information do you need for a quotation?
    Please provide the ring dimensions (inner diameter, outer diameter, cross section), preferred material, operating conditions (temperature, pressure, medium), required quantity and packaging requirements.
    Pre-Formed Industrial Gland Packing Rings

    Get a Gland Packing Ring Quote for Your Application

    Tell us your equipment, ring dimensions, preferred material and operating conditions. Our team will review your requirements and provide a suitable product recommendation and quotation.

    Request a Quote
