Rubber Sheet
General-purpose elastomer sheet available in various thicknesses and compounds for gasket fabrication, cushioning, and fluid-sealing applications.
View Rubber Sheet →Industrial Cork (Rubber) Sheet

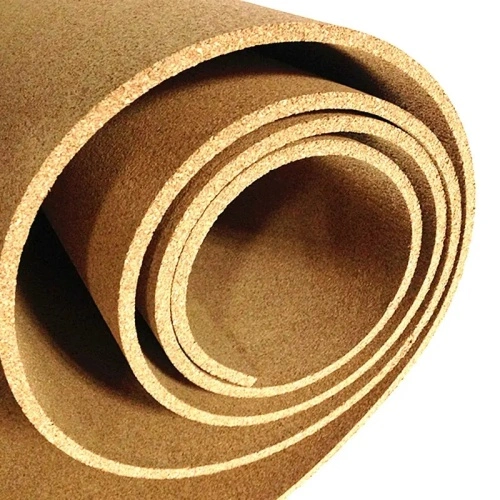

Cork (Rubber) Sheetfor Sealing, Vibration Damping & Oil Resistance
Cork rubber sheet manufactured from granulated cork bonded with nitrile (NBR), neoprene (CR) or other elastomeric binders. Offers excellent compressibility, good recovery, oil and fuel resistance, vibration damping and noise reduction for gaskets, seals and cushioning in automotive and industrial applications.
Cork & Rubber Bonded
Oil & Fuel Resistant
ISO 9001 & RoHS
OEM & Bulk Orders
Cork (Rubber) Sheet
Compressible Sealing & Damping Sheet
OEM
Custom Supply
Our Cork (Rubber) Sheet
Cork (Rubber) Sheet Products
Explore cork rubber sheet for industrial sealing, gaskets, vibration damping and cushioning. Available in various rubber binders, cork granule sizes, densities, thicknesses and sheet sizes for oil, fuel and general-purpose applications.
-
Cork Rubber Sheet
High Quality Cork Rubber Sheet
-
Cork Rubber Sheet
Acid and Alkali Resistant Cork Rubber Sheet
Cork (Rubber) Sheet Supplier
Cork Rubber Sheet for Reliable Sealing & Damping
Cork rubber sheet is a composite material manufactured by bonding granulated cork with synthetic rubber binders such as nitrile rubber (NBR), neoprene (CR), EPDM or SBR. The combination of cork and rubber provides a unique balance of compressibility, recovery, oil resistance and vibration damping properties.
Cork rubber sheet is widely used for gaskets in automotive oil pans, valve covers, transmission pans, and for general industrial sealing where low to medium clamping loads are applied. The cork content provides excellent conformability to irregular surfaces, while the rubber binder imparts oil, fuel and chemical resistance.
We supply cork rubber sheet for overseas distributors, industrial buyers, gasket manufacturers, maintenance companies and OEM customers, with different binder types, cork granule sizes, densities, thicknesses, sheet sizes and custom cutting available according to specification.
Excellent Compressibility & Recovery
Cork granules provide high compressibility to seal uneven surfaces under low bolt loads.
Oil & Fuel Resistance
NBR or CR bonded grades resist oils, fuels and hydrocarbon fluids for automotive sealing.
Vibration Damping & Noise Reduction
Cork rubber sheet absorbs vibration and reduces noise transmission in mechanical assemblies.
Low Cost Sealing Solution
Economical alternative to solid rubber or fiber gaskets for low to medium pressure service.
Material Advantages
Why Choose Cork (Rubber) Sheet?
Cork rubber sheet provides an optimal combination of compressibility, oil resistance, vibration damping and cost-effectiveness for a wide range of sealing and cushioning applications.
01
High Compressibility
Cork rubber sheet compresses easily under low clamping force, filling surface irregularities and providing an effective seal on rough or machined surfaces.
02
Good Recovery
The rubber binder provides resilient recovery after compression, maintaining seal integrity under fluctuating loads and thermal cycling.
03
Oil & Fuel Resistance
NBR and CR bonded grades offer excellent resistance to oils, fuels, greases and hydrocarbons, making them suitable for automotive and industrial oil sealing.
04
Vibration Damping & Noise Reduction
The cellular cork structure absorbs mechanical energy, reducing vibration transmission and noise in machinery and automotive components.
05
Multiple Binder Options
Choose from NBR, CR, EPDM or SBR binders to match specific oil, weather or temperature requirements.
06
B2B Industrial Supply
Suitable for industrial distributors, gasket fabricators, OEM customers, maintenance companies and bulk purchasing.
Technical Specifications
Cork (Rubber) Sheet Specifications
Technical properties depend on the cork granule size, rubber binder type, density and sheet thickness. The values below are typical for general-purpose cork rubber sheet and should be confirmed for the selected grade before ordering.
| Product | Cork (Rubber) Sheet |
|---|---|
| Material Composition | Granulated cork bonded with NBR, CR, EPDM or SBR synthetic rubber; exact composition depends on grade |
| Color | Brown / Dark brown / Black depending on binder type |
| Density | 0.6–1.0 g/cm³ typical depending on grade and cork content |
| Temperature Range | NBR-bonded: -30°C to +100°C continuous; CR-bonded: -30°C to +110°C; EPDM-bonded: -40°C to +120°C. Short-term tolerance slightly higher. Actual limits depend on grade and media |
| Pressure Range | Up to 30 bar typical depending on gasket dimensions and flange clamping force. Confirm rated pressure for selected grade |
| Tensile Strength | ≥ 2 MPa (typical 3–7 MPa depending on grade and thickness) |
| Compressibility | 15–40% at 35 MPa depending on grade and density |
| Recovery | ≥ 70% typical |
| Chemical Resistance | Good resistance to oils, fuels, greases and water (depending on binder); limited resistance to strong acids, alkalis and solvents. Verify with actual medium |
| Sheet Thickness | 0.5 mm to 10 mm; common thicknesses: 1 mm, 1.5 mm, 2 mm, 3 mm, 4 mm, 5 mm, 6 mm. Custom thicknesses available |
| Sheet Size | Standard sizes: 1000×1000 mm, 1000×2000 mm, 1220×1220 mm, 1220×2440 mm; rolls available for thin gauges. Custom sizes and cut pieces available |
| Surface Finish | Smooth or fine granule texture depending on cork particle size |
| Supply Form | Sheet, roll, cut-to-size pieces, or pre-cut gaskets subject to specification |
| Compliance | ISO 9001 quality management and RoHS compliance documentation available where applicable; confirm documentation requirements before ordering |
Sheet Dimensions
Cork (Rubber) Sheet Size Chart
Cork rubber sheet is available in standard sheet sizes and thicknesses. The following table lists commonly stocked dimensions. Custom sizes, thicknesses and cut pieces can be produced according to customer requirements.
| Thickness | Standard Sheet Size | Typical Application | Grade / Media |
|---|---|---|---|
| 0.5 mm | 1000×1000 mm / 1000×2000 mm | Thin gaskets, shims, oil pan sealing | NBR / Oil resistant |
| 1.0 mm | 1000×1000 mm / 1220×1220 mm | General flange gaskets, water, oil | NBR / General purpose |
| 1.5 mm | 1000×1000 mm / 1220×1220 mm | Valve cover gaskets, transmission pans | NBR / Oil resistant |
| 2.0 mm | 1000×1000 mm / 1220×1220 mm | Standard gaskets, oil pans, covers | NBR / General purpose |
| 3.0 mm | 1000×1000 mm / 1220×1220 mm | Thicker gaskets, irregular flanges | NBR / General purpose |
| 4.0 mm | 1000×1000 mm / 1220×1220 mm | Vibration damping, cushioning, seals | NBR / General purpose |
| 5.0 mm | 1000×1000 mm / 1220×1220 mm | Heavy-duty cushioning, pump bases | NBR / CR / General purpose |
| 6.0 mm | 1000×1000 mm / 1220×1220 mm | Thick gaskets, access covers, insulation | NBR / CR / General purpose |
* Reference standard sheet sizes and thicknesses are shown for procurement guidance. Available sizes depend on the selected grade and manufacturing batch. Custom thicknesses from 0.5 mm to 10 mm and custom sheet dimensions are available subject to specification.
Selection Guide
How to Choose Cork (Rubber) Sheet
The correct cork rubber sheet grade and dimensions should be selected based on media, temperature, pressure, surface condition and required compliance.
01
Binder Selection
Choose the rubber binder based on the service media: NBR for oil resistance, CR for weather and moderate oil, EPDM for water and ozone resistance.
02
Density & Cork Content
Higher cork content provides greater compressibility; higher rubber content provides better oil resistance and tensile strength. Select density based on sealing requirements.
03
Thickness & Sheet Size
Thicker sheets compensate for rough or uneven surfaces and provide better vibration damping. Specify sheet dimensions for efficient gasket cutting.
04
Operating Conditions
Confirm temperature, pressure, chemical exposure and mechanical load to select the optimal grade and density.
Manufacturing
Controlled Production for Consistent Quality
Consistent cork granule size, binder distribution, sheet density and thickness tolerance are critical for reliable cork rubber sheet performance.
PROCESS / 01
Material Mixing
Granulated cork is mixed with the selected rubber binder and additives to achieve the specified compound and density.
PROCESS / 02
Calendering / Molding
The mixed compound is calendered or molded into sheets of uniform thickness and density under controlled pressure and temperature.
PROCESS / 03
Curing & Inspection
Sheets are vulcanized to develop final properties, then inspected for thickness, density, tensile strength and surface quality.
PROCESS / 04
Cutting & Packaging
Sheets are cut to standard or custom sizes, and packaged with protective interleaving for export and storage.
Why Choose hongwo
A B2B Supplier for Industrial Sealing Materials
We focus on supplying industrial sealing materials to overseas distributors, gasket manufacturers, maintenance companies and industrial buyers.
Industrial Product Focus
Focused on sealing materials and industrial
products for B2B applications.
ISO 9001 & RoHS
Quality management and RoHS compliance
documentation available where applicable.
OEM & Custom Supply
Support for customized grades, dimensions,
cut pieces and packaging.
Application-Based Support
Provide your media, temperature and pressure
so we can help identify a suitable grade.
Request a Quote
Tell Us Your Cork (Rubber) Sheet Requirements
The more technical information you provide, the more accurately we can recommend the appropriate grade and prepare a quotation.
You can also send a drawing, required specifications or application details after our sales team contacts you.
FAQ
Frequently Asked Questions About Cork (Rubber) Sheet
What is cork rubber sheet?
Cork rubber sheet is a composite sealing material made
from granulated cork bonded with synthetic rubber
binders such as NBR, CR or EPDM. It combines cork's
compressibility with rubber's oil resistance and
resilience.
What is cork rubber sheet used for?
It is used for gaskets in oil pans, valve covers,
transmission pans, and for general industrial sealing,
vibration damping and noise reduction applications.
What is the temperature range of cork rubber sheet?
NBR-bonded cork sheet typically operates from -30°C
to +100°C continuous. CR-bonded grades can handle
-30°C to +110°C, and EPDM-bonded grades -40°C to
+120°C. Actual limits depend on grade and media.
Is cork rubber sheet oil resistant?
Yes. NBR and CR bonded cork rubber sheets provide good
resistance to oils, fuels, greases and hydrocarbons,
making them suitable for automotive sealing applications.
What sizes and thicknesses are available?
Standard sheet sizes include 1000×1000 mm, 1000×2000 mm,
1220×1220 mm and 1220×2440 mm. Thicknesses range from
0.5 mm to 10 mm, with 1 mm, 1.5 mm, 2 mm, 3 mm, 4 mm
and 5 mm being common. Custom sizes and cut pieces
are available.
Can cork rubber sheet be used for water sealing?
Yes. Cork rubber sheet provides good resistance to
water, especially EPDM-bonded grades which are
recommended for water and steam applications.
Is cork rubber sheet easy to cut and fabricate?
Yes. Cork rubber sheet can be easily cut, punched,
die-cut or waterjet cut to produce custom gaskets
of various shapes and sizes.
Is cork rubber sheet RoHS compliant?
RoHS compliance can be provided for applicable grades
and documentation requirements. Please confirm the
required RoHS documentation and grade when requesting
a quotation.
What information do you need for a quotation?
Please provide the required binder type, density,
thickness, sheet dimensions, media, operating
temperature and pressure, required quantity and any
compliance requirements.
Industrial Cork (Rubber) Sheet
Get a Cork (Rubber) Sheet Quote for Your Application
Tell us your binder, density, thickness, sheet size, media, temperature and pressure requirements. Our team will review your requirements and provide a suitable product recommendation and quotation.
Request a QuoteRelated Sealing Products
Complete Industrial Sealing Solutions
Explore related sealing materials and products for different industrial equipment and operating conditions.
Non-Asbestos Sheet
Environmentally friendly compressed fiber sheet formulated with aramid or synthetic fibers as a safe alternative to asbestos for high-temperature gasketing.
View Non-Asbestos Sheet →PTFE Sheet
PTFE sheet for chemical resistance, low friction and high-temperature gasket and insulation applications.
View PTFE Sheet →Beater Sheet / Paper
Fiber-based gasket paper offering oil, fuel and water resistance for low to medium pressure sealing applications.
View Beater Sheet →
