Industrial Non-Asbestos Gasket Sheet
Non-Asbestos Gasket Sheetfor Sealing, Gaskets & High-Performance Industrial Service
Non-asbestos gasket sheet for industrial sealing and gasket fabrication. Manufactured from aramid fiber, inorganic fillers and elastomeric binders, offering excellent mechanical strength, oil and fuel resistance, and reliable sealing performance as a safe alternative to asbestos-containing materials.
Aramid & Inorganic Fiber
Oil & Fuel Resistant
ISO 9001 & RoHS
OEM & Bulk Orders

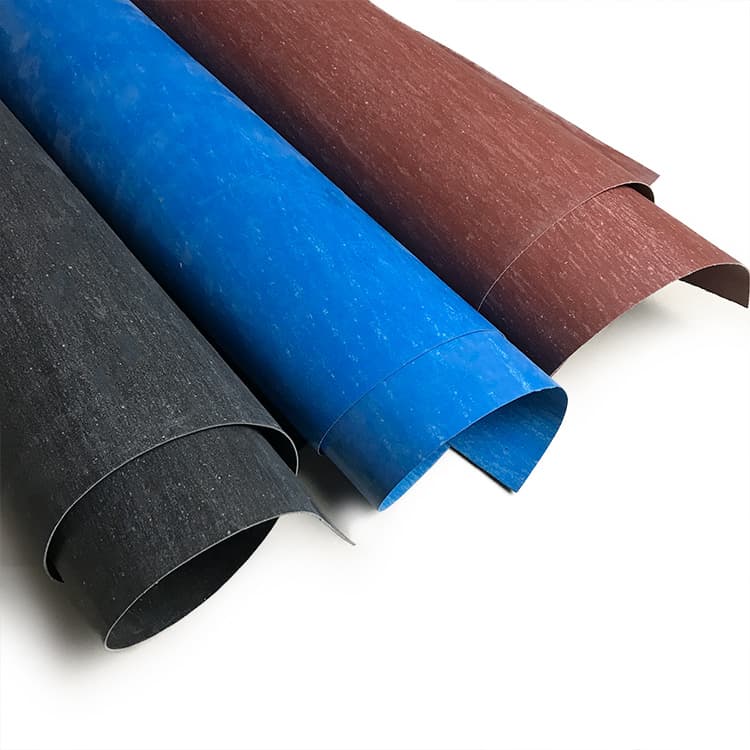

Non-Asbestos Gasket Sheet
High-Performance Sealing Sheet
OEM
Custom Supply
Our Non-Asbestos Gasket Sheet
Non-Asbestos Gasket Sheet Products
Explore non-asbestos gasket sheet for industrial sealing and gasket fabrication. Available in various grades for oil, fuel, water, steam and general chemical resistance, with multiple thicknesses and sheet sizes.
-

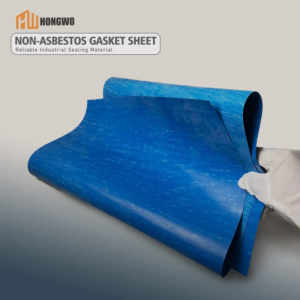

Non-Asbestos Gasket Sheet
Non-Asbestos Gasket Sheet
Non-Asbestos Gasket Sheet Supplier
Non-Asbestos Sheet for Reliable Industrial Sealing
Non-asbestos gasket sheet is a compressed fiber sheet material manufactured from aramid fibers, inorganic fillers and elastomeric binders (typically NBR or SBR). It is designed as a safe and effective alternative to traditional asbestos gasket materials for industrial sealing and gasket fabrication.
The sheet offers excellent mechanical strength, good compressibility and recovery, and resistance to oils, fuels, water, steam and many industrial chemicals. Depending on the grade and binder system, non-asbestos sheet can be used for a wide range of flange, pipe and equipment sealing applications.
We supply non-asbestos gasket sheet for overseas distributors, industrial buyers, gasket manufacturers, maintenance companies and OEM customers, with different grades, thicknesses, sheet sizes and custom cutting available according to specification.
Excellent Mechanical Strength
Aramid fiber reinforcement provides high tensile strength and durability.
Oil & Fuel Resistance
NBR-bonded grades resist oils, fuels and hydrocarbons for engine and piping applications.
Good Compressibility & Recovery
Designed to conform to flange irregularities and maintain sealing under load.
Safe Asbestos Alternative
Provides similar performance to asbestos sheets without the associated health risks.
Material Advantages
Why Choose Non-Asbestos Gasket Sheet?
Non-asbestos gasket sheet offers a safe, reliable and cost-effective sealing solution for a wide range of industrial applications, combining strength, resistance and ease of fabrication.
01
Safe Asbestos-Free Material
Manufactured without asbestos, providing a health-safe alternative while maintaining comparable sealing performance in many applications.
02
Oil & Fuel Resistance
NBR-bonded grades offer excellent resistance to oils, fuels, greases and hydrocarbons, making them ideal for engine, transmission and piping systems.
03
Good Temperature & Pressure Resistance
Depending on grade, non-asbestos sheet can withstand temperatures up to +400°C and pressures up to 100 bar, suitable for steam and hot water service.
04
Easy Fabrication
The sheet can be easily cut, punched or machined to produce custom gaskets for flanges, heat exchangers and equipment.
05
Multiple Grades Available
Various grades are available for specific media such as oils, fuels, steam, water, weak acids and alkalis, allowing selection for diverse applications.
06
B2B Industrial Supply
Suitable for industrial distributors, gasket fabricators, OEM customers, maintenance companies and bulk purchasing.
Technical Specifications
Non-Asbestos Gasket Sheet Specifications
Technical properties depend on the specific grade, binder system and fiber reinforcement. The values below are typical for general-purpose non-asbestos gasket sheet and should be confirmed for the selected grade before ordering.
| Product | Non-Asbestos Gasket Sheet |
|---|---|
| Material Composition | Aramid fiber, inorganic fillers, NBR or SBR elastomeric binder; exact composition depends on grade |
| Color | Typically green, blue, black, or gray depending on grade and binder |
| Density | Approximately 1.6–2.0 g/cm³ depending on grade |
| Temperature Range | Typical continuous service: -100°C to +250°C for general grades; high-temperature grades up to +400°C for steam service. Actual limit depends on grade and media |
| Pressure Range | Up to 100 bar depending on grade, gasket dimensions and operating temperature |
| Tensile Strength | ≥ 7 MPa (typical 10–20 MPa depending on grade and thickness) |
| Compressibility | 7–15% at 35 MPa depending on grade |
| Recovery | ≥ 40–50% depending on grade |
| Chemical Resistance | Good resistance to oils, fuels, water, steam, weak acids and alkalis; compatibility depends on grade and binder. Verify with actual medium |
| Sheet Thickness | 0.3 mm to 5.0 mm; common thicknesses: 0.5 mm, 1.0 mm, 1.5 mm, 2.0 mm, 3.0 mm. Custom thicknesses available |
| Sheet Size | Standard sizes: 1500×1500 mm, 1500×3000 mm, 1500×4500 mm; other sizes and cut pieces available subject to specification |
| Supply Form | Sheet, cut-to-size pieces, rolls (thin gauges) or pre-cut gaskets subject to specification |
| Compliance | ISO 9001 quality management and RoHS compliance documentation available where applicable; confirm documentation requirements before ordering |
Sheet Dimensions
Non-Asbestos Gasket Sheet Size Chart
Non-asbestos gasket sheet is available in standard sheet sizes and thicknesses. The following table lists commonly stocked dimensions. Custom sizes, thicknesses and cut pieces can be produced according to customer requirements.
| Thickness | Standard Sheet Size | Typical Application | Grade / Media |
|---|---|---|---|
| 0.5 mm | 1500×1500 mm / 1500×3000 mm | Thin gaskets, oil and fuel service | Oil / Fuel resistant |
| 1.0 mm | 1500×1500 mm / 1500×3000 mm | General flange gaskets, water, oil, steam | General purpose |
| 1.5 mm | 1500×1500 mm / 1500×3000 mm | Flange gaskets, heat exchangers | General purpose / Steam |
| 2.0 mm | 1500×1500 mm / 1500×3000 mm | Standard flange gaskets, pipe flanges | General purpose / Steam |
| 3.0 mm | 1500×1500 mm / 1500×3000 mm | Thicker gaskets, irregular flanges, equipment | General purpose / Steam |
| 4.0 mm | 1500×1500 mm / 1500×3000 mm | Heavy-duty gaskets, large flanges | General purpose / High temp |
| 5.0 mm | 1500×1500 mm / 1500×3000 mm | Thick gaskets, large equipment, compressors | General purpose / High temp |
* Reference standard sheet sizes and thicknesses are shown for procurement guidance. Available sizes depend on the selected grade and manufacturing batch. Custom thicknesses from 0.3 mm to 5.0 mm and custom sheet dimensions are available subject to specification.
Industrial Applications
Non-Asbestos Gasket Sheet Applications
Non-asbestos gasket sheet is used across a wide range of industries for flange sealing, gasket fabrication and equipment sealing where a safe, reliable and cost-effective material is required.
Oil & Fuel Systems
Gaskets for engines, transmissions, fuel pumps and oil systems requiring NBR-bonded oil resistance.
Steam & Hot Water Service
High-temperature grades for steam piping, boilers, heat exchangers and hot water systems.
Chemical Process Equipment
Gaskets for equipment handling weak acids, alkalis and general chemical media.
General Industrial Sealing
Gaskets for compressors, pumps, gearboxes and general industrial machinery.
Gasket Fabrication
Sheet stock for gasket manufacturers and fabricators producing custom-cut gaskets for various industries.
Selection Guide
How to Choose Non-Asbestos Gasket Sheet
The correct non-asbestos gasket sheet grade and dimensions should be selected based on media, temperature, pressure, flange type and required compliance.
01
Media Compatibility
Identify the fluid or gas to be sealed (oil, fuel, steam, water, chemicals) to select the appropriate binder system and grade.
02
Temperature & Pressure
Determine the operating temperature and pressure to choose a grade that can withstand the service conditions.
03
Thickness & Sheet Size
Specify the required sheet thickness and sheet dimensions. Thicker sheets are used for rough or uneven flange surfaces.
04
Compliance Requirements
Specify if RoHS, REACH, DVGW, WRAS, FDA or other material certifications are required for your application.
Manufacturing
Controlled Production for Consistent Quality
Consistent fiber dispersion, binder content, sheet density and thickness tolerance are critical for reliable non-asbestos gasket sheet performance.
PROCESS / 01
Material Mixing
Aramid fiber, inorganic fillers and elastomeric binders are mixed to achieve the specified composition and properties for each grade.
PROCESS / 02
Calendering
The mixed compound is calendered into sheets of uniform thickness and density under controlled pressure.
PROCESS / 03
Curing & Inspection
Sheets are cured to develop mechanical properties, then inspected for thickness tolerance, density, tensile strength and surface quality.
PROCESS / 04
Cutting & Packaging
Sheets are cut to standard or custom sizes, and packaged with protective interleaving for export and storage.
Why Choose hongwo
A B2B Supplier for Industrial Sealing Materials
We focus on supplying industrial sealing materials to overseas distributors, gasket manufacturers, maintenance companies and industrial buyers.
Industrial Product Focus
Focused on sealing materials and industrial
products for B2B applications.
ISO 9001 & RoHS
Quality management and RoHS compliance
documentation available where applicable.
OEM & Custom Supply
Support for customized grades, dimensions,
cut pieces and packaging.
Application-Based Support
Provide your media, temperature and pressure
so we can help identify a suitable grade.
Request a Quote
Tell Us Your Non-Asbestos Sheet Requirements
The more technical information you provide, the more accurately we can recommend the appropriate grade and prepare a quotation.
You can also send a drawing, required specifications or application details after our sales team contacts you.
FAQ
Frequently Asked Questions About Non-Asbestos Gasket Sheet
What is non-asbestos gasket sheet?
Non-asbestos gasket sheet is a compressed sheet material
made from aramid fibers, inorganic fillers and elastomeric
binders. It is used to fabricate gaskets for industrial
sealing applications as a safe alternative to asbestos
sheets.
What is non-asbestos sheet used for?
Non-asbestos sheet is used for manufacturing gaskets
for pipe flanges, valves, pumps, heat exchangers,
engines and other equipment requiring reliable sealing
against oils, fuels, water, steam and many chemicals.
What is the temperature range of non-asbestos sheet?
Typical continuous service temperature ranges from
-100°C to +250°C for general-purpose grades.
High-temperature grades can withstand up to +400°C
for steam service. Actual limits depend on grade and
media.
Is non-asbestos sheet oil and fuel resistant?
Yes. NBR-bonded grades provide excellent resistance to
oils, fuels, greases and hydrocarbons, making them
suitable for engine, transmission and piping applications.
What sizes and thicknesses are available?
Standard sheet sizes are 1500×1500 mm, 1500×3000 mm and
1500×4500 mm. Thicknesses range from 0.3 mm to 5.0 mm,
with 0.5 mm, 1.0 mm, 1.5 mm, 2.0 mm and 3.0 mm being
common. Custom sizes and cut pieces are available.
Can non-asbestos sheet be used for steam service?
Yes. Specific high-temperature grades are designed for
steam service up to +400°C. These grades typically use
special binder systems and fiber reinforcement for
improved thermal stability.
Is non-asbestos sheet chemically resistant?
Non-asbestos sheet has good resistance to oils, fuels,
water, steam, weak acids and alkalis. However, chemical
compatibility depends on the specific grade and binder.
Always verify with the actual medium before selection.
Is non-asbestos sheet easy to cut and fabricate?
Yes. Non-asbestos gasket sheet can be easily cut, punched
or machined using conventional tools to produce custom
gaskets of various shapes and sizes.
Is non-asbestos gasket sheet RoHS compliant?
RoHS compliance can be provided for applicable grades
and documentation requirements. Please confirm the
required RoHS documentation and grade when requesting
a quotation.
What information do you need for a quotation?
Please provide the required grade, thickness, sheet
dimensions, media, operating temperature and pressure,
required quantity and any compliance requirements.
