Industrial Rubber Sheet

Rubber Sheetfor Sealing, Gaskets, Vibration Damping & Insulation

Industrial rubber sheet manufactured from natural rubber (NR), nitrile rubber (NBR), neoprene (CR), EPDM, silicone, viton (FKM), SBR and more. Excellent flexibility, chemical resistance, temperature tolerance and mechanical properties for gasket fabrication, sealing, cushioning and insulation applications.

Request a Quote View Products View Specifications
NR, NBR, CR, EPDM, FKM & More
Oil, Chemical & Weather Resistant
ISO 9001 & RoHS
OEM & Bulk Orders

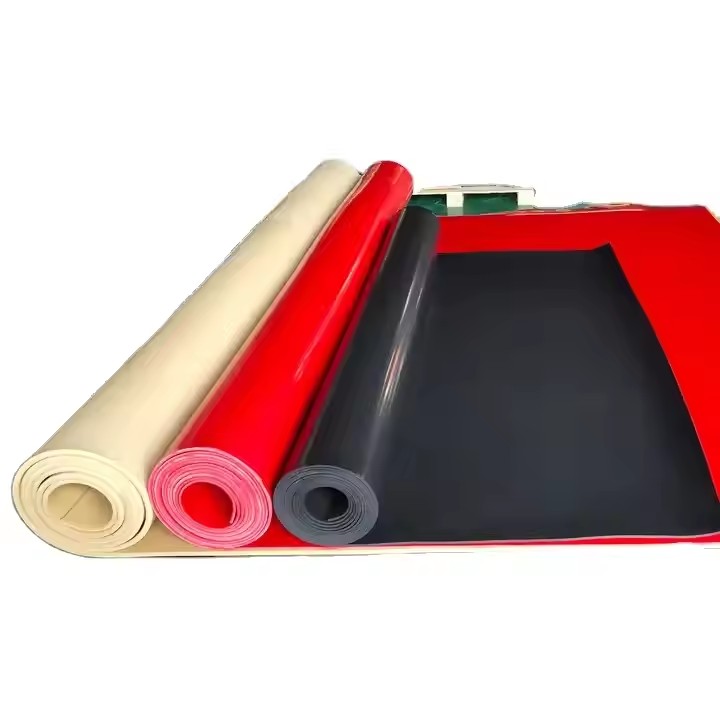

Rubber sheet for industrial gaskets and seals
Rubber Sheet High-Performance Elastomer Sheet
OEM Custom Supply
01
Factory Supply Direct industrial manufacturing
02
ISO 9001 Quality management system
03
RoHS Compliant Material compliance available
04
OEM / ODM Custom specifications available
Our Rubber Sheet

Rubber Sheet Products

Explore rubber sheet in a wide range of elastomer materials including natural rubber, nitrile, neoprene, EPDM, silicone, viton, SBR and more. Available in various thicknesses, sheet sizes, hardness grades and surface finishes.

Rubber sheet for industrial sealing and gaskets
Rubber Sheet Supplier

Rubber Sheet for Gaskets, Sealing, Vibration & Insulation

Rubber sheet is a versatile elastomeric material widely used for gasket fabrication, sealing, vibration damping, cushioning, electrical insulation and protective linings. It is manufactured from various rubber compounds, each offering specific properties such as oil resistance, weather resistance, high temperature tolerance, chemical resistance or food-grade compliance.

Common rubber sheet materials include natural rubber (NR) for high elasticity and tear strength; nitrile rubber (NBR) for excellent oil and fuel resistance; neoprene (CR) for weather, ozone and moderate oil resistance; EPDM for outstanding weather, ozone and water/steam resistance; silicone for wide temperature range and flexibility; fluoroelastomer (FKM/Viton) for superior chemical and high-temperature resistance; and SBR for general-purpose economy.

We supply rubber sheet for overseas distributors, industrial buyers, gasket manufacturers, maintenance companies and OEM customers, with different polymer types, hardness grades, thicknesses, sheet sizes and surface finishes available according to specification.

Multiple Elastomer Materials NR, NBR, CR, EPDM, Silicone, FKM, SBR and other specialty rubber compounds.
Wide Hardness Range From soft 20 Shore A to hard 90+ Shore A, customizable to application needs.
Custom Surface Finishes Smooth, fabric-impressed, diamond pattern, or skived finish available.
Application-Specific Grades Oil-resistant, food-grade, flame-retardant, anti-static and high-temperature grades.
Material Advantages

Why Choose Rubber Sheet?

Rubber sheet offers a unique combination of flexibility, elasticity, sealing capability and material versatility, making it suitable for diverse industrial applications.

01

Excellent Elasticity & Flexibility

Rubber sheet conforms to irregular surfaces, providing reliable sealing and cushioning even on rough or uneven flanges.

02

Wide Material Selection

Choose from NR, NBR, CR, EPDM, Silicone, FKM, SBR and specialty compounds to match specific oil, chemical, temperature and weather requirements.

03

Broad Temperature Range

Depending on polymer, rubber sheet can operate from -60°C to +250°C, covering cryogenic to high-temperature service.

04

Resistance Properties

Specific grades offer resistance to oils, fuels, acids, alkalis, ozone, UV, steam and water, ensuring long-term performance in harsh environments.

05

Easy Fabrication

Rubber sheet is easy to cut, punch, die-cut, waterjet or machine into custom gaskets and components.

06

B2B Industrial Supply

Suitable for industrial distributors, gasket fabricators, OEM customers, maintenance companies and bulk purchasing.

Technical Specifications

Rubber Sheet Specifications

Technical properties depend on the specific polymer type, compound formulation and sheet thickness. The values below provide a general reference for common rubber sheet materials. Detailed properties should be confirmed for the selected compound before ordering.

Product Rubber Sheet
Available Materials Natural Rubber (NR), Nitrile (NBR), Neoprene (CR), EPDM, Silicone (VMQ), Fluoroelastomer (FKM/Viton), SBR, Butyl (IIR), Hypalon (CSM) and others
Hardness Range 20–95 Shore A depending on polymer and compound
Density 1.0–1.9 g/cm³ depending on polymer and filler content
Temperature Range NR: -50°C to +70°C; NBR: -30°C to +100°C (short-term +120°C); CR: -30°C to +100°C; EPDM: -40°C to +120°C (short-term +150°C); Silicone: -60°C to +200°C (short-term +230°C); FKM: -20°C to +200°C (short-term +250°C); SBR: -30°C to +70°C. Actual limits depend on compound and service conditions.
Tensile Strength 3–20 MPa depending on polymer and compound; NR typically 10–20 MPa, NBR 7–15 MPa, EPDM 7–15 MPa, Silicone 4–8 MPa, FKM 8–15 MPa
Elongation at Break 100–700% depending on polymer; NR typically 300–700%, NBR 200–500%, EPDM 200–600%, Silicone 100–400%, FKM 150–300%
Chemical Resistance Varies by polymer: NBR excellent for oils and fuels; CR good for oils, weather; EPDM excellent for water, steam, ozone; Silicone good for high and low temperatures; FKM excellent for chemicals, oils, fuels; NR good for abrasion but poor for oils. Verify with actual medium.
Sheet Thickness 0.5 mm to 50 mm; common thicknesses: 1 mm, 1.5 mm, 2 mm, 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm. Custom thicknesses available.
Sheet Size Standard sheet size: 1000×1000 mm, 1000×2000 mm, 1200×1000 mm, 1200×2000 mm, 1220×2440 mm, 1500×3000 mm; rolls also available. Custom sizes and cut pieces available.
Surface Finish Smooth, fabric-impressed, diamond pattern, anti-slip, or skived depending on requirement
Supply Form Sheet, roll, cut-to-size pieces, or pre-cut gaskets subject to specification
Compliance ISO 9001 quality management and RoHS compliance documentation available where applicable; food-grade (FDA), flame-retardant (UL94) and other certifications available for specific compounds
Sheet Dimensions

Rubber Sheet Size Chart

Rubber sheet is available in standard sheet sizes and thicknesses. The following table lists commonly stocked dimensions. Custom sizes, thicknesses, hardness grades and surface finishes can be produced according to customer requirements.

Thickness Standard Sheet Size Typical Application Common Materials
0.5 mm 1000×1000 mm / 1000×2000 mm Thin gaskets, diaphragms, lining NR, NBR, CR, EPDM, Silicone
1.0 mm 1000×1000 mm / 1200×2000 mm General gaskets, seals, electrical insulation NR, NBR, CR, EPDM, FKM
1.5 mm 1000×1000 mm / 1200×2000 mm Flange gaskets, cushioning NR, NBR, EPDM, Silicone
2.0 mm 1000×1000 mm / 1200×2000 mm Standard gaskets, vibration pads NR, NBR, CR, EPDM, FKM
3.0 mm 1000×1000 mm / 1200×2000 mm Gaskets, seals, protective lining NR, NBR, CR, EPDM, Silicone, FKM
4.0 mm 1000×1000 mm / 1200×2000 mm Heavy-duty gaskets, expansion joints NR, NBR, CR, EPDM
5.0 mm 1000×1000 mm / 1200×2000 mm Vibration damping, floor matting, seals NR, NBR, CR, EPDM
6.0 mm 1000×1000 mm / 1200×2000 mm Thick gaskets, pump bases, anti-slip NR, NBR, CR
8.0 mm 1000×1000 mm / 1200×2000 mm Heavy-duty cushioning, wear pads NR, NBR, CR
10 mm 1000×1000 mm / 1200×2000 mm Thick pads, dock bumpers, insulation NR, NBR, CR, EPDM

* Reference standard sheet sizes and thicknesses are shown for procurement guidance. Available sizes depend on the selected polymer and compound. Custom thicknesses from 0.5 mm to 50 mm and custom sheet dimensions are available subject to specification.

Industrial Applications

Rubber Sheet Applications

Rubber sheet is used across a wide range of industries for sealing, cushioning, insulation, protection and vibration control, with material selection driven by the specific operating environment.

Gaskets & Seals

Custom-cut rubber gaskets for pipe flanges, valves, pumps, tanks and equipment in chemical, water and food industries.

Oil & Fuel Systems

Nitrile (NBR) rubber sheet for gaskets and seals in engines, fuel systems, hydraulic equipment and oil processing.

Vibration Damping & Cushioning

Rubber sheet used as anti-vibration pads, machinery mounts, and cushioning under equipment and structures.

Electrical Insulation

Dielectric rubber sheet for electrical insulation, switchgear mats and protective covers.

Weather & Water Sealing

EPDM and neoprene rubber sheet for outdoor gaskets, roof flashing, pond liners, and weather stripping.

Food & Pharmaceutical

FDA-compliant silicone and EPDM rubber sheet for food contact gaskets, seals and processing equipment.

Selection Guide

How to Choose Rubber Sheet

The correct rubber sheet material, hardness and thickness should be selected based on chemical exposure, temperature, mechanical load, surface condition and compliance needs.

01

Polymer Selection

Choose the rubber polymer based on the main service requirements: NBR for oil resistance, EPDM for weather and steam, CR for weather and moderate oil, FKM for high chemicals, Silicone for high/low temperature, NR for elasticity and abrasion.

02

Hardness & Thickness

Specify Shore A hardness and sheet thickness. Thicker sheets and softer grades compensate for rough or uneven surfaces; harder grades provide better load bearing.

03

Operating Conditions

Define temperature range, chemical exposure, UV/ozone exposure, pressure and mechanical load to select the optimal compound.

04

Compliance Requirements

Specify if FDA, RoHS, REACH, UL flame rating or other certifications are required for the final application.

Manufacturing

Controlled Production for Consistent Quality

Consistent compound formulation, curing, sheet thickness and surface finish are critical for reliable rubber sheet performance.

PROCESS / 01

Compound Mixing

Rubber polymers, fillers, plasticizers, curing agents and additives are mixed to achieve the specified compound properties.

PROCESS / 02

Calendering / Molding

The rubber compound is calendered into sheets of uniform thickness or molded into sheets under heat and pressure.

PROCESS / 03

Curing & Inspection

Sheets are vulcanized to develop final mechanical properties, then inspected for thickness, hardness, tensile strength and surface defects.

PROCESS / 04

Cutting & Packaging

Sheets are cut to standard or custom sizes, and packaged with protective interleaving for export and storage.

Rubber sheet manufacturing and supply
Why Choose hongwo

A B2B Supplier for Industrial Elastomer Materials

We focus on supplying industrial rubber and sealing materials to overseas distributors, gasket manufacturers, maintenance companies and industrial buyers.

01
Industrial Product Focus Focused on elastomer materials and industrial products for B2B applications.
02
ISO 9001 & RoHS Quality management and RoHS compliance documentation available where applicable.
03
OEM & Custom Supply Support for customized compounds, dimensions, cut pieces and packaging.
04
Application-Based Support Provide your application, chemical exposure and operating conditions so we can help identify a suitable rubber compound.

Need Rubber Sheet for Your Application?

Send your required polymer, hardness, thickness, sheet dimensions, chemical exposure and operating conditions. Get a suitable product recommendation and quotation.

Request a Quote

Tell Us Your Rubber Sheet Requirements

The more technical information you provide, the more accurately we can recommend the appropriate rubber compound and prepare a quotation.

You can also send a drawing, required specifications or application details after our sales team contacts you.

    FAQ

    Frequently Asked Questions About Rubber Sheet

    What types of rubber sheet are available?
    We supply natural rubber (NR), nitrile (NBR), neoprene (CR), EPDM, silicone (VMQ), fluoroelastomer (FKM/Viton), SBR, butyl (IIR), hypalon (CSM) and other specialty compounds. Each offers specific resistance properties.
    What is the temperature range of rubber sheet?
    Temperature range depends on the polymer: NR -50°C to +70°C, NBR -30°C to +100°C, CR -30°C to +100°C, EPDM -40°C to +120°C, Silicone -60°C to +200°C, FKM -20°C to +200°C. Actual limits depend on the compound and service conditions.
    Which rubber sheet is best for oil resistance?
    Nitrile rubber (NBR) offers the best oil and fuel resistance for general industrial use. For more aggressive fluids and higher temperatures, FKM (Viton) is recommended.
    Is rubber sheet available in different hardness grades?
    Yes. Rubber sheet is available from 20 Shore A (soft) to 95 Shore A (hard). Common grades are 40, 50, 60, 70 and 80 Shore A. Custom hardness can be formulated.
    What are standard sheet sizes and thicknesses?
    Standard sheet sizes include 1000×1000 mm, 1000×2000 mm, 1200×2000 mm, 1220×2440 mm and 1500×3000 mm. Thicknesses range from 0.5 mm to 50 mm, with 1 mm, 2 mm, 3 mm, 5 mm and 10 mm being common.
    Can I get food-grade rubber sheet?
    Yes. FDA-compliant silicone, EPDM and other food-grade compounds are available. Specify your compliance requirements when requesting a quotation.
    Is rubber sheet available with fabric reinforcement?
    Yes. Rubber sheet can be supplied with fabric insertion (cotton, nylon, polyester) for increased dimensional stability and tear resistance in certain applications.
    Can rubber sheet be used outdoors?
    EPDM and neoprene rubber sheets offer excellent resistance to ozone, UV and weathering, making them suitable for outdoor applications. NR and SBR are not recommended for prolonged outdoor exposure.
    Is rubber sheet RoHS compliant?
    RoHS compliance can be provided for applicable compounds and documentation requirements. Please confirm the required RoHS documentation and compound when requesting a quotation.
    What information do you need for a quotation?
    Please provide the required polymer type, hardness (Shore A), thickness, sheet dimensions, quantity, chemical exposure, temperature range, and any compliance requirements.
