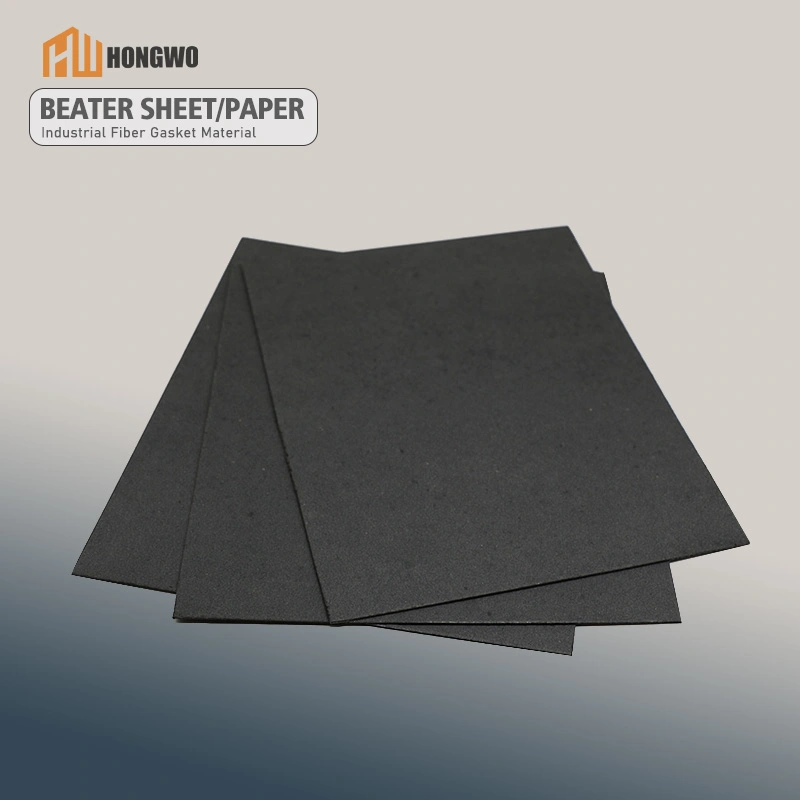

Non-asbestos Beater Sheet/Paper

Non-asbestos beater sheet/paper is made from selected fibers and high-performance rubber binder through a beater process. It offers high tensile strength, low creep and reliable sealing for oil, water and steam flange connections. Suitable for cutting gaskets, washers and seals.

Parameter Specification
Material Asbestos-free fiber + rubber binder
Temperature Up to 350°C
Pressure Up to 8 MPa
Thickness 0.5 mm – 5.0 mm
Sheet Size 1500 × 1500 mm / custom
Applications Gaskets, washers, seals

The other name: Non-asbestos paper, asbestos free paper,Non-asbestos latex paper, Non-asbestos emulsion paper.

It is 100% asbestos free.

Passed non-asbestos content certification of the third-party testing organization.

Passed ROHS certification of the third-party testing organization.

Non-asbestos beater paper,it is made from synthetic latex, aramid fiber and filling material.It is an ideal substitute of asbestos latex sheet/paper.After combining with tanged tinplate,the non-asbestos composite beater sheet is ideal for various kind of cylinder head gasket and other automotive accessory gaskets. Especially for petrol engine kind.

This series include: Non-asbestos beater paper, Vulcanized non-asbestos beater sheet,

1) Non-asbestos beater paper:It don’t vulcanize,usually it is used to be composited with tinplate to non-asbestos composite sheet for cylinder head gasket sheet material.

2) Vulcanized non-Asbestos beater sheet, it is based non-asbestos beater paper and by vulcanized, it has smooth face and high density,it can be cut into all kinds of gasket directly for engine sump,gearbox seal gasket.

Usage: Suitable to sealing lubricating oil at highest temperature -80~250℃
Normal color: Grey, Black.

Standard size:

Thickness: 0.3~1.2mm

Width: 1500mm  Tolerance: ±5%

Length: 5m,10m or its integral multiple

Special sheet sizes and other size thickness upon request.
