Steam & Boiler Systems
Gaskets for steam piping, boilers, heat exchangers and high-temperature water systems.

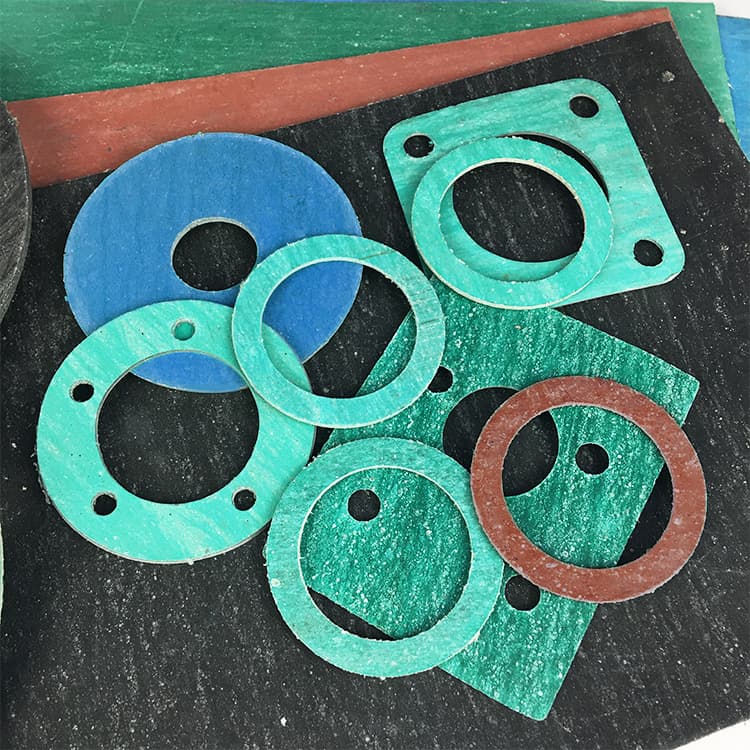

Industrial Asbestos Gasket
Asbestos Gasketfor High-Temperature & Chemical Resistant Sealing
Asbestos gaskets manufactured from chrysotile asbestos fiber and rubber binders, offering excellent high-temperature resistance, chemical inertness and mechanical strength. Designed for flanges, valves, pumps and industrial equipment requiring reliable sealing in demanding thermal and chemical environments. Note: Use only where permitted by local regulations.
Chrysotile Asbestos Fiber
High-Temperature Resistant
ISO 9001 & RoHS
OEM & Bulk Orders
Asbestos Gasket
High-Temperature Sealing Gasket
OEM
Custom Supply
Our Asbestos Gaskets
Asbestos Gasket Products
Explore asbestos gaskets manufactured from chrysotile asbestos fiber and rubber binders. Available in various grades for high-temperature, steam, oil and chemical resistance, with multiple thicknesses and sheet sizes. Please verify local regulatory compliance before ordering.
-
Asbestos gasket
Oil-resistant asbestos gasket
-
Asbestos gasket
High-pressure asbestos gasket
-
Asbestos gasket
Medium-pressure asbestos gasket
-
Asbestos gasket
Low-pressure asbestos gasket
-
Asbestos gasket
Custom Design Asbestos Flange Gaskets
Asbestos Gasket Supplier
Asbestos Gaskets for High-Temperature & Chemical Service
Asbestos gaskets are compressed fiber gaskets made from chrysotile asbestos fibers bonded with rubber or other elastomeric binders. They are known for excellent resistance to high temperatures, steam, oils and many chemicals, and have been widely used in industrial sealing for decades.
The gaskets exhibit good mechanical strength, low creep relaxation, and good compressibility, making them suitable for flanges, heat exchangers, boilers and piping systems operating at elevated temperatures. However, due to health risks associated with asbestos fiber, their use is regulated or banned in many countries. We supply only where legally permitted and recommend verifying local regulations before purchase.
We supply asbestos gaskets for overseas distributors, industrial buyers, gasket manufacturers, maintenance companies and OEM customers, with different grades, thicknesses, sheet sizes and custom cutting available according to specification.
High-Temperature Resistance
Continuous service up to +400°C depending on binder and grade.
Chemical Resistance
Good resistance to oils, steam, water and many chemicals; not for strong acids or alkalis.
Good Mechanical Strength
Reinforced fiber structure provides high tensile strength and durability under load.
Regulatory Compliance Required
Ensure use is permitted by local regulations before ordering.
Material Advantages
Why Choose Asbestos Gaskets?
Asbestos gaskets provide high-temperature resistance, chemical resistance and mechanical strength for demanding industrial applications where permitted.
01
High-Temperature Performance
Asbestos gaskets can withstand continuous temperatures up to +400°C, suitable for steam, hot oil and high-temperature piping.
02
Chemical Resistance
Good resistance to oils, steam, water and many chemicals; not recommended for strong acids and alkalis.
03
Mechanical Strength
Asbestos fiber provides high tensile strength and good dimensional stability under high bolt loads and pressure.
04
Good Compressibility
Gaskets conform well to flange irregularities, providing effective sealing even on rough surfaces.
05
Cost-Effective
Asbestos gaskets are generally economical compared to many alternative high-temperature materials.
06
B2B Industrial Supply
Suitable for distributors, gasket fabricators, OEM customers and bulk purchasing in permitted regions.
Technical Specifications
Asbestos Gasket Specifications
Technical properties depend on asbestos fiber content, binder type and sheet thickness. The values below are typical for compressed asbestos gasket sheet and should be confirmed for the selected grade before ordering. Ensure compliance with local health and safety regulations.
| Product | Asbestos Gasket |
|---|---|
| Material Composition | Chrysotile asbestos fiber, rubber binder (NBR, SBR, or other), fillers; exact composition depends on grade |
| Color | Typically gray, white, or off-white |
| Density | Approximately 1.8–2.0 g/cm³ |
| Temperature Range | -50°C to +400°C depending on grade and binder; short-term tolerance up to +450°C for some grades |
| Pressure Range | Up to 40 bar typical depending on gasket dimensions and flange design. Confirm rated pressure for selected grade |
| Tensile Strength | ≥ 10 MPa (typical 15–25 MPa) |
| Compressibility | 7–15% at 35 MPa |
| Recovery | ≥ 40–50% |
| Chemical Resistance | Good resistance to oils, steam, water, and many organic solvents; limited resistance to strong acids and alkalis. Verify with actual medium |
| Gasket Thickness | 0.5 mm to 5.0 mm; common thicknesses: 1.0 mm, 1.5 mm, 2.0 mm, 3.0 mm. Custom thicknesses available |
| Gasket Dimensions | Custom inner diameter and outer diameter according to flange or equipment; typical OD range from 10 mm to 2000 mm or larger |
| Supply Form | Cut gaskets, sheet, or pre-cut gaskets; customized packaging available |
| Compliance | ISO 9001 quality management; RoHS compliance may not apply to asbestos-containing products. Confirm regulatory compliance before ordering. |
Gasket Dimensions
Asbestos Gasket Size Chart
Asbestos gaskets are manufactured to custom inner and outer diameters and thicknesses. The following table lists common thicknesses with typical applications. Inner and outer diameters are produced according to flange or equipment dimensions.
| Thickness | Typical OD Range | Typical Application | Grade / Media |
|---|---|---|---|
| 0.5 mm | 10–500 mm | Thin flange gaskets, oil and steam service | General purpose |
| 1.0 mm | 10–1000 mm | Standard flange gaskets, water, oil, steam | General purpose / Steam |
| 1.5 mm | 10–1500 mm | Flange gaskets, heat exchangers | General purpose / Steam |
| 2.0 mm | 10–2000 mm | Heavy-duty flange gaskets, high pressure | High temperature / Steam |
| 3.0 mm | 20–2000 mm | Thick gaskets, large flanges, reactors | High temperature / Steam |
| 4.0 mm | 20–2000 mm | Very thick gaskets, special equipment | High temperature / Chemical |
| 5.0 mm | 20–2000 mm | Specialty seals, high-temperature service | High temperature / Chemical |
* Reference thicknesses and typical outer diameter ranges are shown for procurement guidance. All dimensions are customizable. Inner diameters are produced according to flange bore or pipe size. Custom metric and inch dimensions are available subject to specification.
Industrial Applications
Asbestos Gasket Applications
Asbestos gaskets have historically been used in a wide range of high-temperature industrial sealing applications. Their use is now regulated or banned in many countries.
Oil & Refinery Equipment
Flange gaskets for oil processing equipment, pipelines and storage tanks.
Chemical Processing
Gaskets for pumps, valves and vessels handling moderate chemicals and solvents.
Power Generation
Sealing for turbines, condensers and power plant piping requiring high-temperature resistance.
Marine & Shipbuilding
Gaskets for marine engines, exhaust systems and piping in shipbuilding.
General Industrial Sealing
Custom-cut gaskets for pumps, compressors and general machinery in legacy systems.
Selection Guide
How to Choose Asbestos Gaskets
The correct asbestos gasket grade and dimensions should be selected based on media, temperature, pressure, flange type and regulatory compliance.
01
Media Compatibility
Identify the fluid or gas to be sealed (steam, oil, water, mild chemicals) to select the appropriate binder and grade.
02
Temperature & Pressure
Determine the operating temperature and pressure to choose a grade that can withstand the service conditions.
03
Thickness & Dimensions
Specify the required gasket thickness and dimensions. Thicker gaskets are used for rough or uneven flange surfaces.
04
Regulatory Compliance
Confirm that asbestos gaskets are permitted in your region and application before ordering.
Manufacturing
Controlled Production for Consistent Quality
Consistent fiber dispersion, binder content, sheet density and thickness tolerance are critical for reliable asbestos gasket performance.
PROCESS / 01
Material Mixing
Asbestos fibers, rubber binders and fillers are mixed to achieve the specified composition and properties.
PROCESS / 02
Calendering
The mixed compound is calendered into sheets of uniform thickness and density under controlled pressure.
PROCESS / 03
Curing & Inspection
Sheets are cured to develop mechanical properties, then inspected for thickness, density, tensile strength and surface quality.
PROCESS / 04
Cutting & Packaging
Sheets or gaskets are cut to standard or custom sizes, and packaged with protective interleaving for export.
Why Choose hongwo
A B2B Supplier for Industrial Sealing Materials
We focus on supplying industrial sealing materials to overseas distributors, gasket manufacturers, maintenance companies and industrial buyers in permitted regions.
Industrial Product Focus
Focused on sealing materials and industrial
products for B2B applications.
ISO 9001 & Compliance
Quality management system; compliance
documentation available where applicable.
OEM & Custom Supply
Support for customized grades, dimensions,
cut pieces and packaging.
Application-Based Support
Provide your media, temperature and pressure
so we can help identify a suitable grade.
Request a Quote
Tell Us Your Asbestos Gasket Requirements
The more technical information you provide, the more accurately we can recommend the appropriate grade and prepare a quotation.
Please note that asbestos-containing products are regulated or banned in many jurisdictions. Verify local regulations before requesting.
FAQ
Frequently Asked Questions About Asbestos Gaskets
What is an asbestos gasket?
An asbestos gasket is a sealing component made from
compressed asbestos fibers bonded with rubber or other
elastomers. It is used for high-temperature and
chemical-resistant sealing applications.
What is the temperature range of asbestos gaskets?
Asbestos gaskets typically handle -50°C to +400°C
continuous, with short-term tolerance up to +450°C
depending on grade and binder.
Are asbestos gaskets safe to use?
Asbestos fibers pose serious health risks when inhaled.
As a result, many countries have banned or restricted
their use. We supply only where legally permitted and
recommend verifying local regulations before ordering.
What are the alternatives to asbestos gaskets?
Non-asbestos fiber gaskets, graphite gaskets, PTFE
gaskets and spiral wound gaskets are common alternatives
offering similar or better performance without the
health risks.
What sizes and thicknesses are available?
Thicknesses range from 0.5 mm to 5.0 mm, with 1.0 mm,
1.5 mm, 2.0 mm and 3.0 mm being common. Custom sizes
and dimensions are available.
Can asbestos gaskets be used for steam service?
Yes. Asbestos gaskets are well-suited for steam service
up to +400°C. However, verify local regulations.
Is asbestos gasket RoHS compliant?
RoHS typically restricts hazardous substances, but
asbestos is often separately regulated. Confirm
compliance requirements before ordering.
What information do you need for a quotation?
Please provide the required grade, thickness,
dimensions, media, operating temperature and pressure,
and confirm regulatory permission for use.
Industrial Asbestos Gasket
Get an Asbestos Gasket Quote for Your Application
Tell us your grade, thickness, dimensions, operating conditions and media. Ensure regulatory compliance. Our team will review your requirements and provide a suitable product recommendation and quotation.
