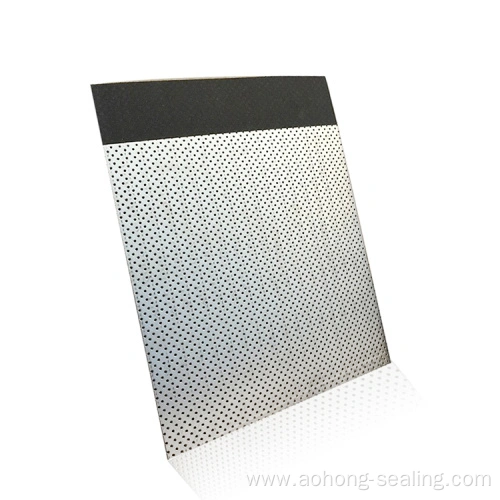

The material consists of paper and a 0.18-0.25 mm tinned iron sheet. It is mainly used to make gaskets for engines, water pumps, and air conditioners. The product has good swelling, sealing, and long-life performance. Mainly, manufacturers use them in automobiles, engines, and air conditioners. Also, manufacturers use them in agricultural machinery, motorcycles, and water pumps. They are also used in high-strength and cylinder gaskets.

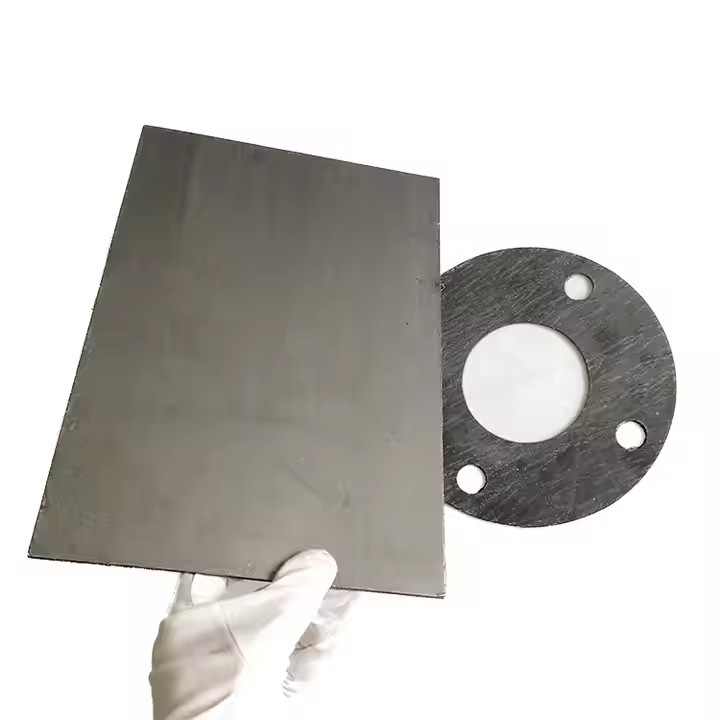

Non Asbestos Material Joint Sheet
Non asbestos material joint sheet is made from aramid fiber, mineral fiber and NBR rubber binder. It provides a safe asbestos-free sealing solution for general industrial applications including flanges, pumps, valves, compressors and pipe joints. Good oil, water and steam resistance.
| Parameter | Specification |
|---|---|
| Material | Aramid/mineral fiber + NBR binder |
| Temperature | Up to 350°C |
| Pressure | Up to 8 MPa |
| Thickness | 0.5 mm – 5.0 mm |
| Sheet Size | 1500 × 1500 mm / 1500 × 4500 mm |
| Applications | Flanges, pumps, valves, pipe joints |
