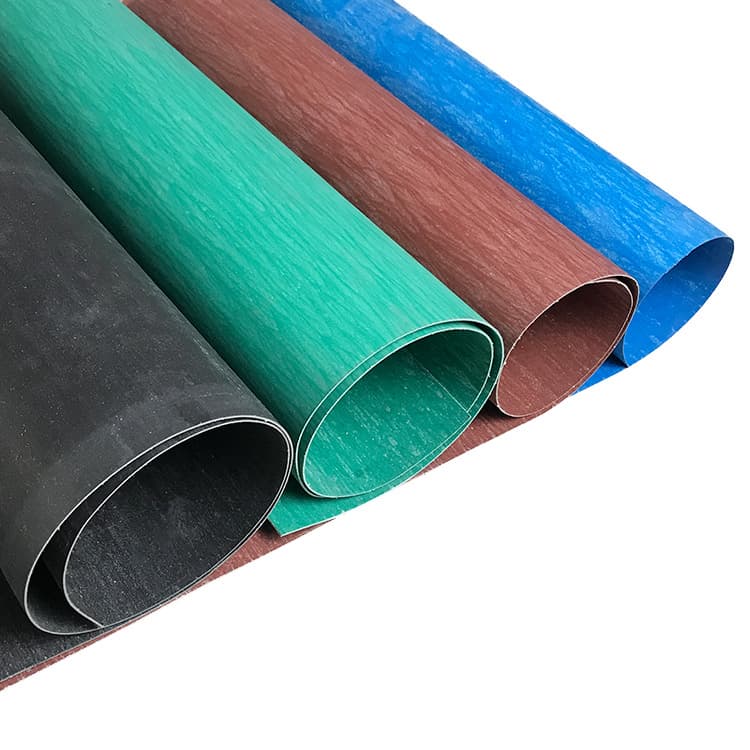

CAF Jointing Gasket Sheet

CAF jointing gasket sheet is a compressed asbestos fiber sheet with rubber binders, providing good mechanical strength and resistance to oil, fuel, water, and steam. It is commonly cut into flange gaskets for industrial equipment.

Parameter Specification
Thickness 0.4 – 5.0 mm
Density 1.6 – 2.0 g/cm³
Temperature Range Up to 450°C
Max Pressure 5 – 6 MPa
Tensile Strength ≥6 MPa
Compressibility 8 – 12%
Recovery ≥40%

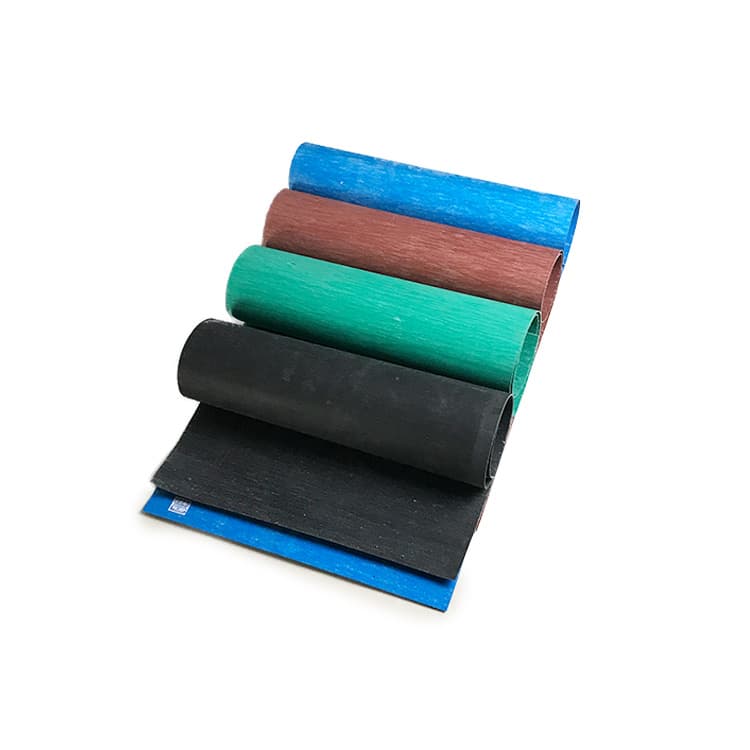

CAF Jointing Gasket Sheet
CAF Jointing Gasket Sheet

Made of asbesto Fibre, rubber and heat-resisting packing material, compressing it to thick paper.

Uses:

Substitution of corresponding models of Asbestos Rubber Sheet ,Used for the equipment in water,steam,etc.and used as sealing material in the joints of pipeline.
Working pressure : 1.5~8.0 MPa ,Working temperature : 200 ~350℃.

Available Sizes:

Thickness: 0.5 to 5mm.

1500 x 1500mm, 1500 x 1360mm, 1500 x 1000mm , 1270 x 1270mm,

1500 x 4500mm, 1500 x 4000mm, 1300 x 3810mm.

The other size is optional or according to the requirements of customers.

At the same time, steel wire net inserted (coated graphite) is available.
