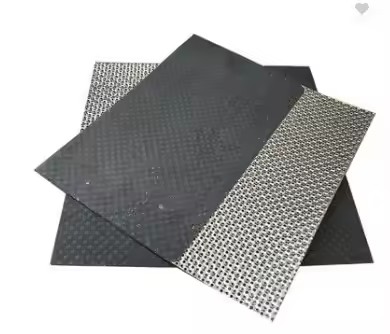

Graphite Sheet with Wire Mesh is made of expanded flexible graphite, reinforced by a metal mesh of 304 or 316 or Carbon steel, graphite content of more then 98 %, graphite bulk density 1.0 g/cm3.
Application:
Made for various gaskets.
Suitable for Petrochemical, Mining, Vessels, Boilers, Piping and Duct, Pumps and Valves, Flanges,
Technical data:
Temperature: -200 up to 550°C
Pressure: up to 400 bar
PH Range: 0 – 14
Advantage:
Permanently elastic, even in hot-cold cycles over the entire temperature range, no aging, no brittleness, no hot or cold flow, long time uniform compressibility and resiliency independent of temperature.
Media:
Steam, mineral oils, heat transfer oils, hydraulic oil, fuel, water, seawater, freshwater etc.
Size:
1000 x 1000 x 1.0; 1.5; 2.0; 3.0mm, 1000 x 2000 x 1.0; 1.5; 2.0; 3.0mm
1500 x 1500 x 1.0; 1.5; 2.0; 3.0mm, 1500 x 2000 x1.0; 1.5; 2.0; 3.0mm
