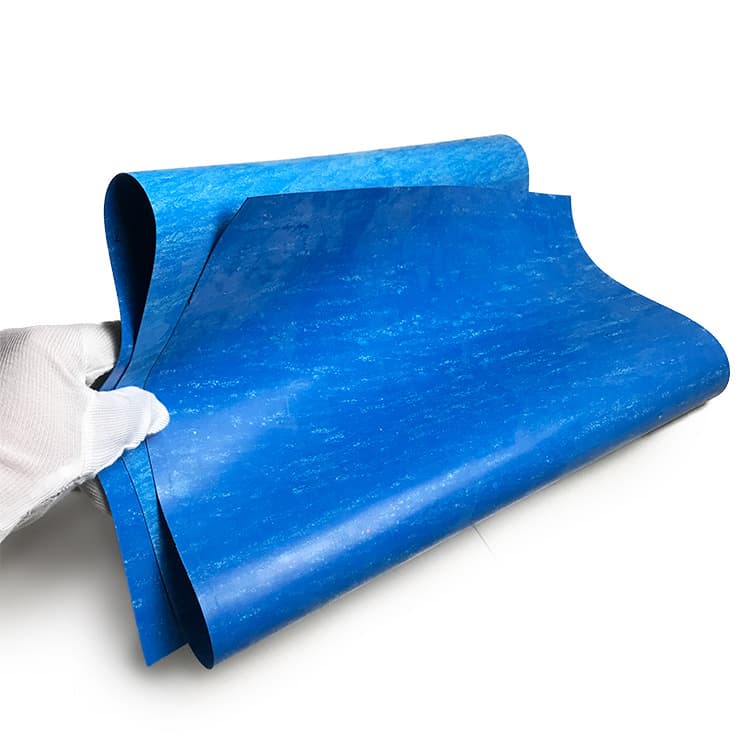

High Temperature Resistance Asbestos Jointing Rubber Sheet

High temperature resistant asbestos jointing rubber sheet is designed for sealing steam, boiler, exhaust, and high-temperature pipeline flanges. It maintains excellent sealing performance and mechanical strength under continuous heat.

Parameter Specification
Thickness 0.5 – 6.0 mm
Density 1.8 – 2.2 g/cm³
Temperature Range Up to 500°C
Max Pressure 6 – 8 MPa
Tensile Strength ≥8 MPa
Compressibility 8 – 12%
Recovery ≥40%

The high-temperature resistance of asbestos rubber sheets varies. It depends on the product type and the manufacturing process.

High Temperature Resistance Asbestos Jointing Rubber Sheet
High Temperature Resistance Asbestos Jointing Rubber Sheet

Asbestos rubber sheets are a high-temperature sealing material. You can use them for long periods at 150 to 200 °C. They will keep their properties and sealing performance.

But different product series and specs have varying limits for heat and pressure. For instance, within the XB series, XB-150 can withstand 150℃, and XB-400 can tolerate up to 400℃. It has much higher pressure resistance too.

Some high-end asbestos rubber products resist temps up to 500 to 550 °C. Their precise blend of components and better manufacturing cause this. When selecting a product, consider the usage environment, temperature, and pressure. This ensures it meets your needs and works well over time.

Asbestos poses health risks. Everyone must follow safety regulations with great attention to detail. Also, take protective measures during use.
